How to find out the overlapping object?

Forum|Forum|16 years ago
July 28, 2009
2 replies
1730 views

Is it possible to find out wheather one pathItem which not in horizontal and vertical position be overlaped or touched any other items like pathitems,textframes etc. in illustrator cs3 active document.

I got the top, left, right and bottom values of the bounding box for every items. From that i got the overlap of bounding boxes. But i don't know how to find out one pathItem overlaped (or) touched any other items. Kindly advice me the possibilities. I have attached the sample file for review.

Thanks in advance.

Sample.zip

SDK

This topic has been closed for replies.

S

SteveBurnt

New Participant

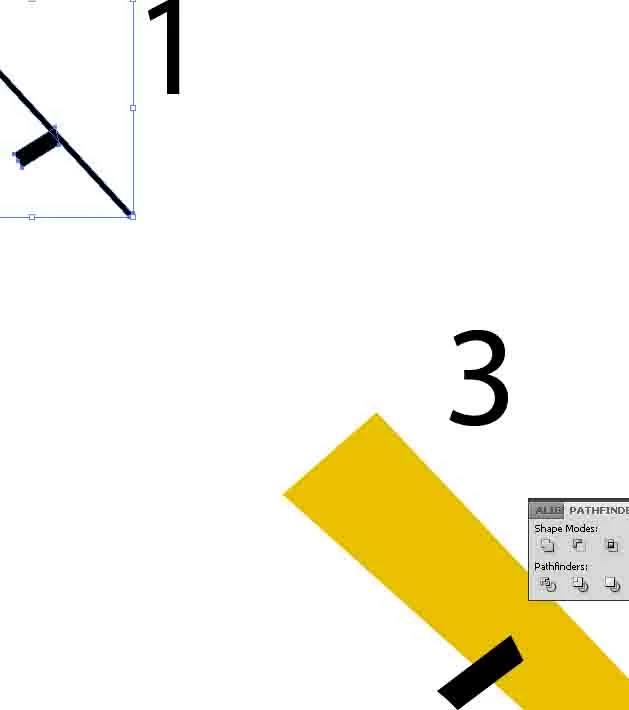

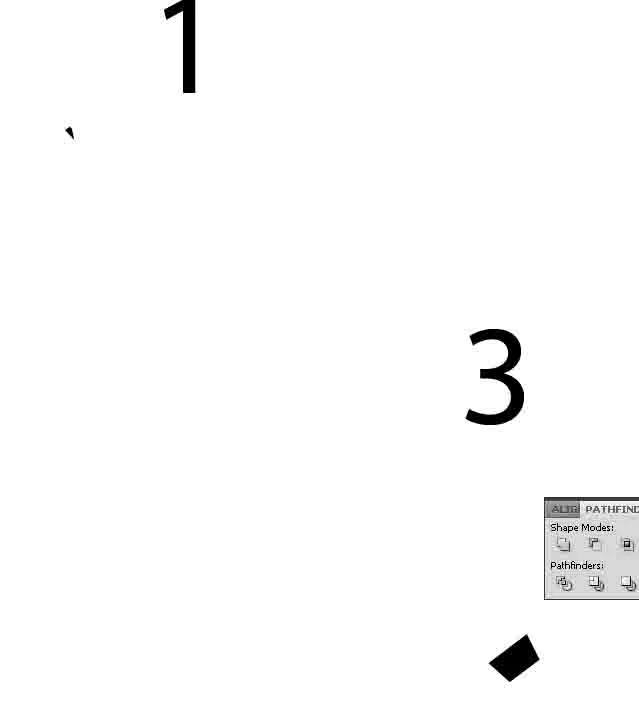

You always can copy your art and implement "Intersect" in Pathfinder

using sAIActionManager->PlayActionEvent(...).

Then check if remained art != nil.

A. Patterson

Inspiring

Unfortunately, I don't know of any Illustrator SDK functionality that provides 'do these paths intersect/overlap'. I'm afraid you have to perform bounding box checks like you're already doing, then conduct segment-by-segment comparisons when you find potential overlaps (as indicated by bounding box hits).
