How to make a shape transparent on background?

  • January 15, 2018
  • 2 replies
  • 1110 views

Hello,

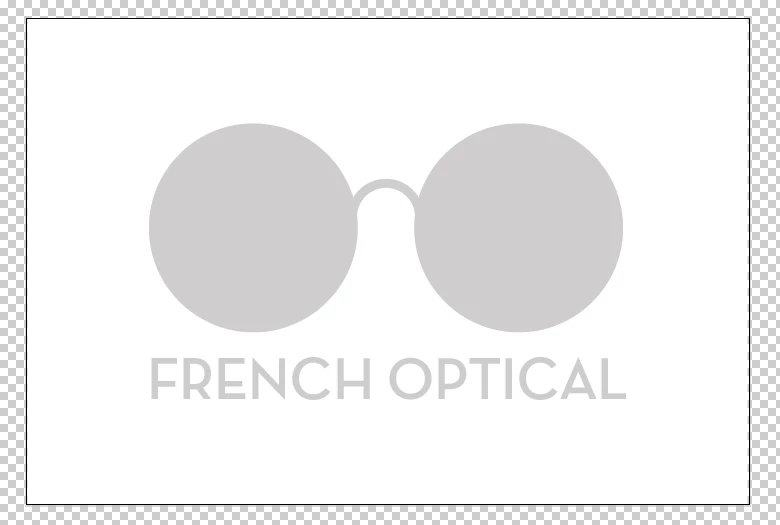

I am just frustrated. I forgot how to do something. I have here a logo on a white background. The background color is white and the text and eyeglasses logo is grey. I want to take the eyeglasses logo and cut it out so you only see a transparency grid on the white background. How do I do this? Thank you.

This topic has been closed for replies.
Correct answer Monika Gause

You didn't select all. But the screenshot shows that there are other issues.

The white background shape needs to be unlocked.

in case there are any live strokes, convert them to paths.

Then combine the elements that form the glasses using the pathfinder panel.

In case the text is still live, convert it to paths.

But in case you want this to be editable, you will need a different approach.

2 replies

Jacob Bugge
Community Expert
Jacob BuggeCommunity Expert
Community Expert
January 16, 2018

David,

As Monika mentioned, you can make it editable. To do that while keeping each grey path, you may:

1) Select all the grey objects and Ctrl/Cmd+G to Group them, then change the colour to black;

2) Select the Group from 1) along with the white rectangle and then in the Transparency palette (flyout) click (Make) Opacity Mask with both Clip and Invert Mask unticked.

Monika Gause
Community Expert
Monika GauseCommunity Expert
Community Expert
January 15, 2018

Select all and make a compound path:

Object > Compound path > Make

davidhunternyc
davidhunternycAuthor
Known Participant
January 15, 2018

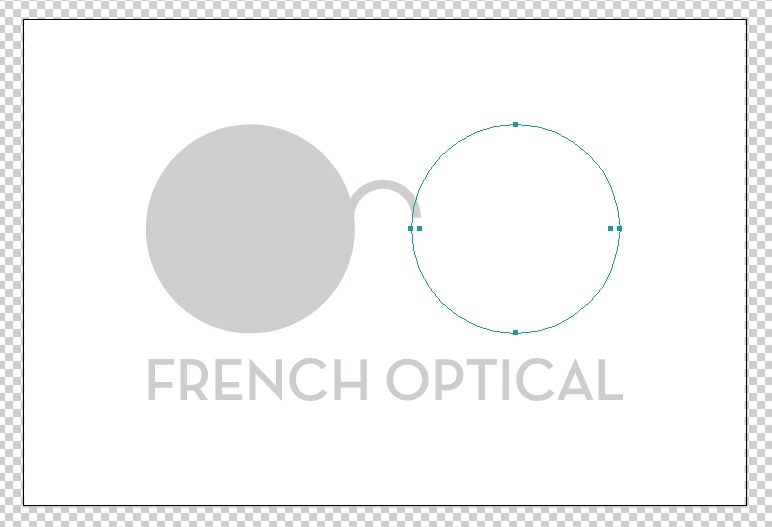

Thank you, I did this and this was the result. I don't see the eyeglasses as a transparent grid behind the white background. I want to cut out the eyeglasses so that you see the eyeglasses as a transparent grid.

Monika Gause
Community Expert
Monika GauseCommunity ExpertCorrect answer
Community Expert
January 16, 2018

You didn't select all. But the screenshot shows that there are other issues.

The white background shape needs to be unlocked.

in case there are any live strokes, convert them to paths.

Then combine the elements that form the glasses using the pathfinder panel.

In case the text is still live, convert it to paths.

But in case you want this to be editable, you will need a different approach.
