Correct answer sanjaykr

With 18.1 update of Adobe illustrator,  we have added an UI option under preferences > User interface section to either turn off scaling completely or allow users to snap to lower or higher supported scale factor. Since Ai only supports 100%, 150% and 200% scale factors, users can choose to snap to 100% or 150% when his/her OS ui scale is between 100% to 150%. E.g. for 125% users can select lower supported scale factor to snap Ai ui to 100% and higher supported scale factor to snap to 150%. Similarly for OS ui scale 175%, users can snap AI's ui scale to 150% or 200%.

If you have defined the environment variable UI_SCALE_FACTOR=1, Then this preference will not work.

Sanjay.

28 replies

Show previous replies
BLUE731
BLUE731
Inspiring
January 28, 2015

HUGE flaw, how does this just slip by? "Illustrator only supports UI scaling of 125%, 150%, and 200%". How limiting. And disappointing...

aunindra
aunindra
Participant
December 9, 2014

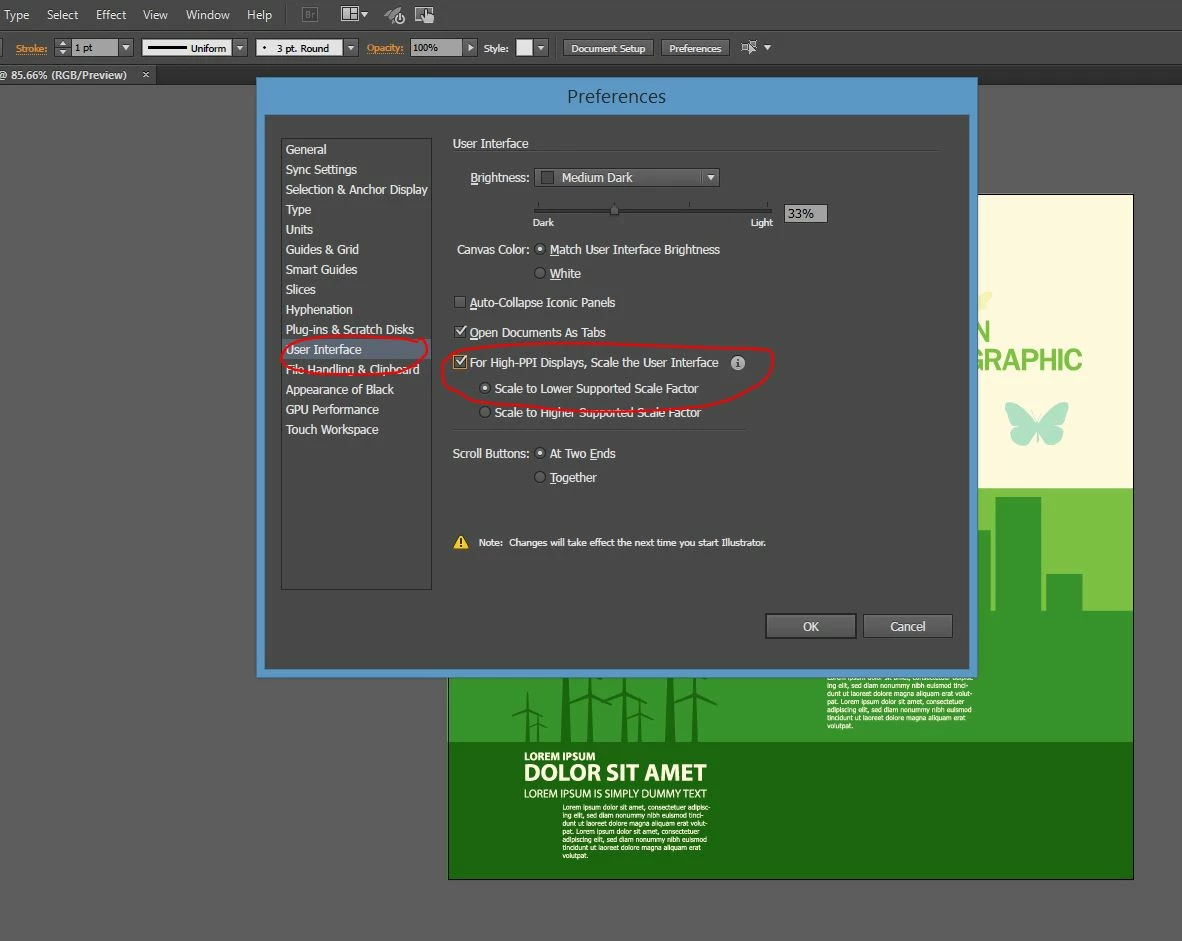

click on GUI Performance > select User Interface Tab > Under the check box- "For High PPI Displays, Scale the User Interface > select the radio button- Scale to Lower supported Scale Factors.

    J
    jimw88587278
    Participant
    July 10, 2015

    thanks! this fixed the scaling for me

    M
    maj2223
    Participant
    August 21, 2015

    still got the issue.. somebody help pleeeease.. setting up illustrator's interface so that 100 percent zoom is the actual size of the document!!!!

    i don't have that ppi display section/toggle, scale the interface etc...  show up :/ (as you can see the a screenshot i copied, thats also featured in peoples post's on this thread..

    F
    foreverskybound
    Participant
    December 3, 2014

    Got to whatever program is too big.

    EDIT > PREFERENCES > USER INTERFACE (illustrator)/ UI SCALING (indesign) > check the box for scale to lower > restart program

    Hope i could help ^^

    Ethereal_innovator6C2B
    Ethereal_innovator6C2B
    Participant
    October 17, 2014

    Sheesh, after the update I wasted a load of time trying to find out why everything was massive again! After a while, I came back here, to find Sanjay's explanation. What a ball ache! Right, so now the UI scale factor variable causes the problem and needs to be deleted. Cool.

    Despite my unnecessary sarcasm, cheers for the update Sanjay

    sanjaykr
    Adobe Employee
    sanjaykrCorrect answer
    Adobe Employee
    October 9, 2014

    With 18.1 update of Adobe illustrator,  we have added an UI option under preferences > User interface section to either turn off scaling completely or allow users to snap to lower or higher supported scale factor. Since Ai only supports 100%, 150% and 200% scale factors, users can choose to snap to 100% or 150% when his/her OS ui scale is between 100% to 150%. E.g. for 125% users can select lower supported scale factor to snap Ai ui to 100% and higher supported scale factor to snap to 150%. Similarly for OS ui scale 175%, users can snap AI's ui scale to 150% or 200%.

    If you have defined the environment variable UI_SCALE_FACTOR=1, Then this preference will not work.

    Sanjay.

      P
      prajwols69681962
      Participant
      December 8, 2020

      100% is too small and 150% is too big. How to use in 125%  like before?



      E
      e2gp
      Participant
      October 9, 2014

      thank you, but only work's in AI, i have he same problem with Flash

      V
      VPLus
      Participant
      September 15, 2014

      Changing the Windows scaling causes other problems which of course is only a temporary fix. This is the first real problem I have ever had with Illustrator.  I just have to ignore the giant text cursors as adding the environment variable caused other problem's.  AI is the problem and I am waiting for a fix for this nonsense.  First real nasty problem I have ever had with AI.  Going back previous version.

      PioneerConstruction_SS
      PioneerConstruction_SS
      Participating Frequently
      July 29, 2014

      I'm just not using the CC 2014 versions until this is all sorted out.

      A
      Anonymous
      July 15, 2014

      Using the UI Scale works, but rather disappointing that Adobe tries to introduce something new but eventually break the entire freaking thing. UI Scale should be toggle-able man...

        S
        SBaseman
        Inspiring
        July 14, 2014

        Thank you! I changed my setting to 124% and it worked like a charm. I don't have the problem on my desktop computer, just my laptop, and it was driving me nuts in Illustrator and InDesign. All back to normal now.
