Illustrator not exporting dxf correctly

Forum|Forum|2 years ago
February 22, 2024
2 replies
1294 views

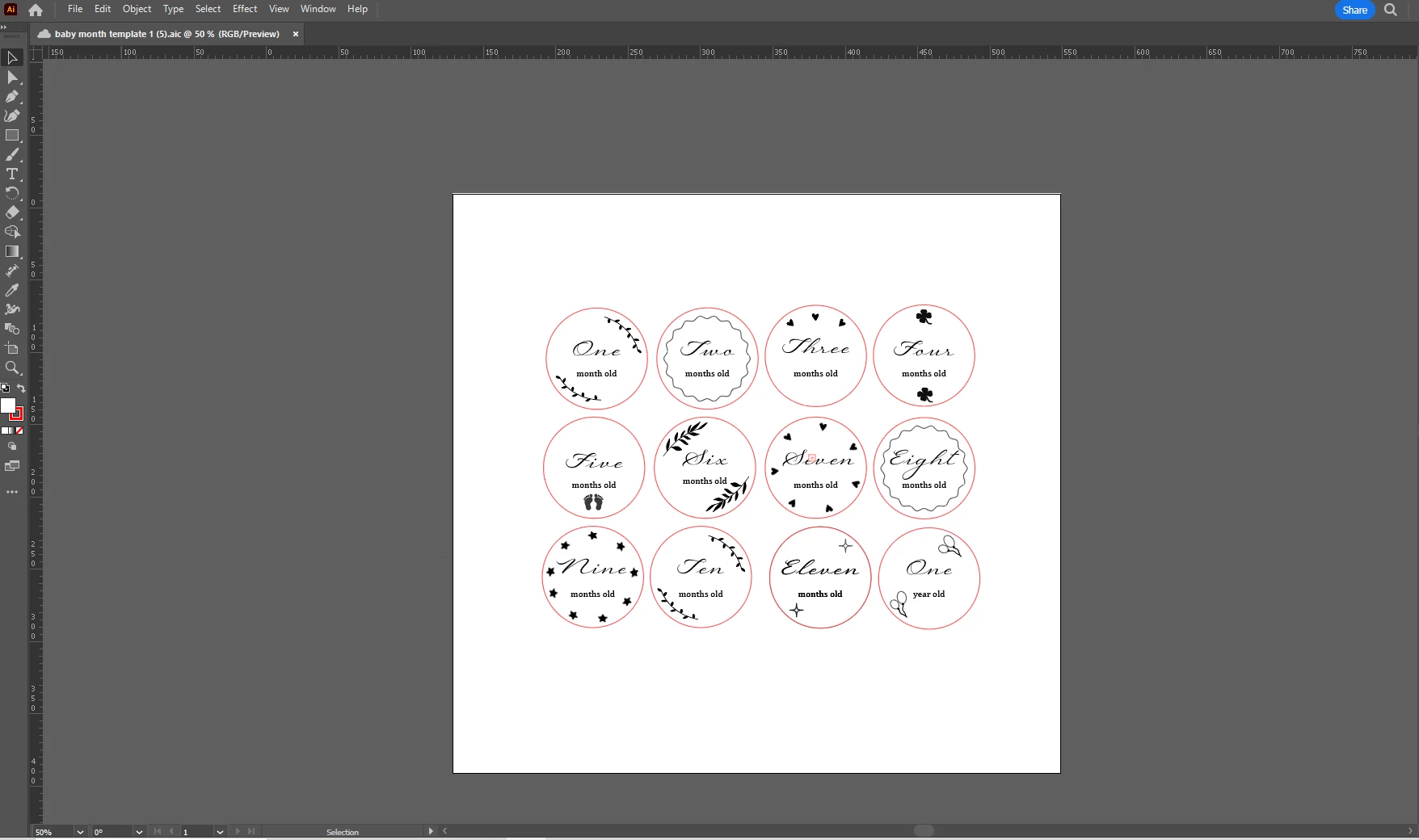

Hi guys, i'm new to illustrator and am trying to export my file into a dfx. When i do this everything seems to have worked exept 2 shapes that i created with the 'disort and transform' effect tool. Is there any reason for this and how to i fix this please?

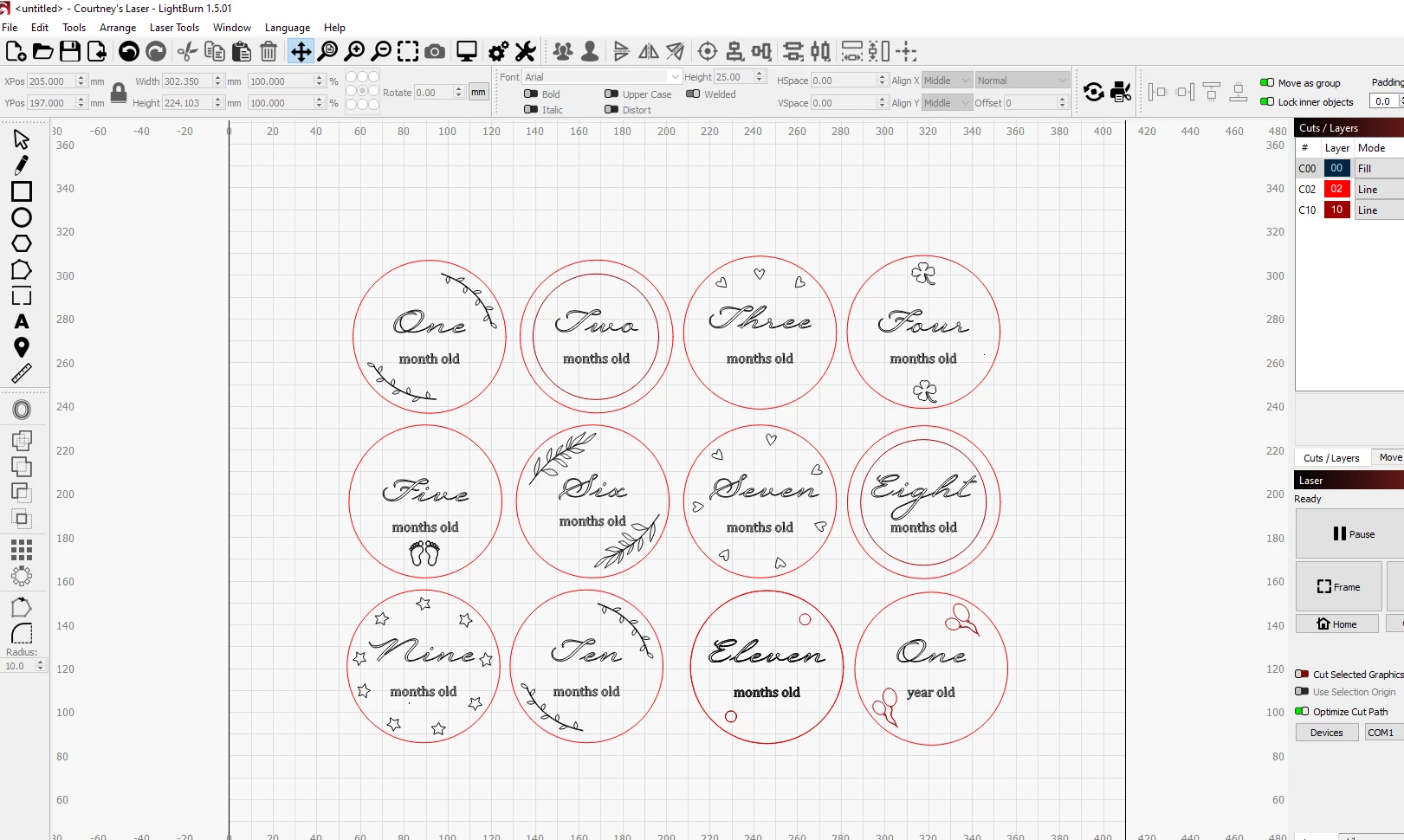

I'm using Lightburn to open this and have matched the scale in mm.

I am using:

Adobe Illustrator 2024 28.2.0

Autocad 24.2.53.0.0

On Microsoft.

This topic has been closed for replies.

C

Courtney35628482i240Author

Participating Frequently

Hi guys,

I have tried all the suggested but still cannot get it to work. Any other ideas please?

Anshul_Saini

Community Manager

Hello @Courtney35628482i240,

I'm sorry to hear that you're still experiencing issues with exporting your file to DXF format despite trying various suggestions. At this point, it would be helpful if you could share the file with us so that we can take a closer look and try to identify the root cause of the problem.

Once you've shared the file, we'll do our best to investigate further and provide you with additional guidance or solutions. Thank you for your patience and cooperation.

Best regards,

Anshul Saini
