Hi @Nils M. Barner I'm sure someone must have addressed this issue before, but I couldn't find it.

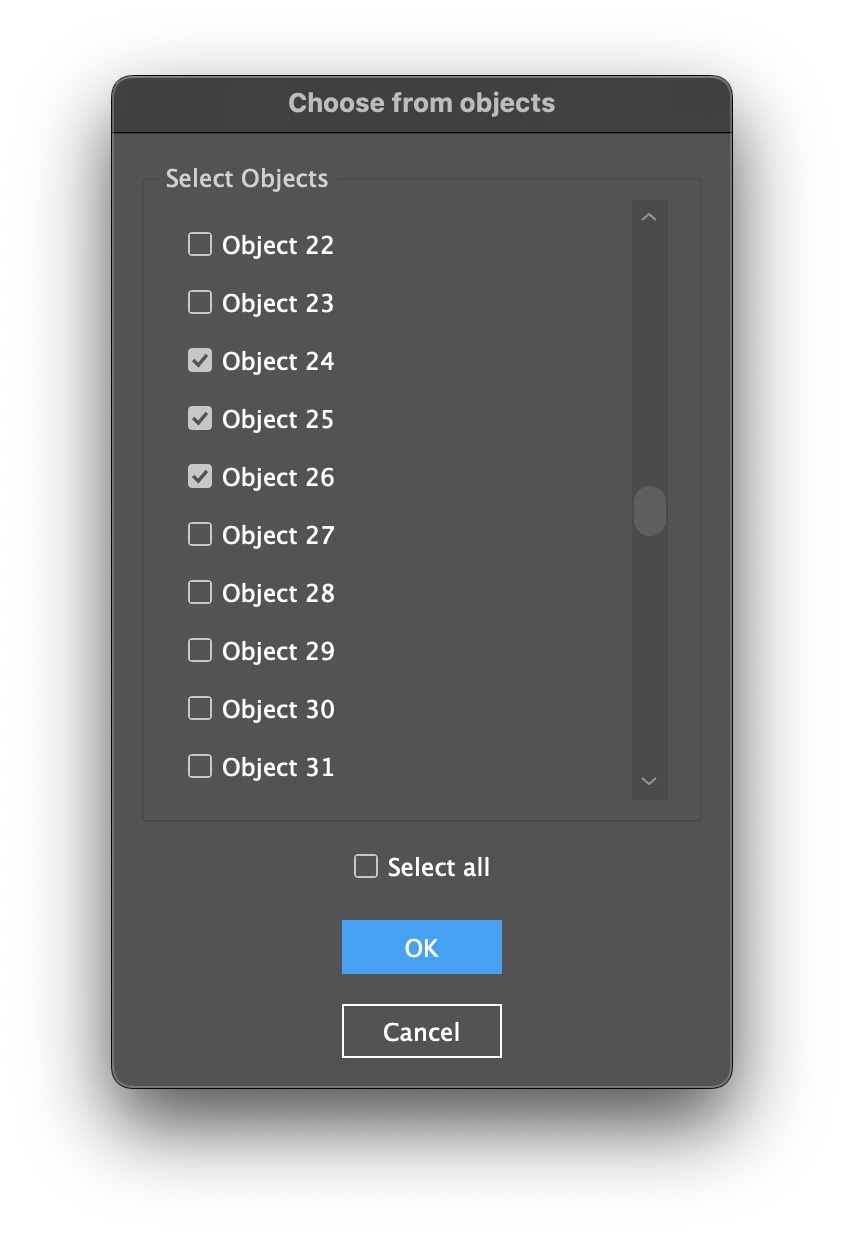

Anyway I've made an attempt and written a constructor I call a "ScollingCheckBoxPanel" which is a scriptUI panel that shows a set number of checkboxes, with a scroll bar. Bugs aside, this should be able to be reused in other projects—just give it different checkboxTitles and values arrays.
So there are two script files: the main script and ScrollingCheckBoxPanel.js constructor script. Keep them in the same folder because the main script `includes` the constructor file. (Or you can move it somewhere else if you change the path in the main script.)
Main script:
/**
* Demonstration of "ScrollingCheckBoxPanel" experiment.
* @author m1b
* @version 2025-06-16
* @discussion https://community.adobe.com/t5/illustrator-discussions/illustrator-scripting-dialog-box-with-scrollable-checkbox-list/m-p/15371451
*/
//@include 'ScrollingCheckBoxPanel.js'
(function () {
// how many checkboxes to see at once
// this will dictate the height of the dialog
const CHECKBOX_COUNT = 10;
var showUI = true;
// some mock objects and their values
var objects = [];
var values = [];
for (var i = 0; i < 50; i++) {
objects[i] = "Object " + (i + 1);
values[i] = false;
}
// putting the UI in a separate function is nice, because it allows
// use to run the script with no UI.
if (showUI) {
var result = ui(objects, values, CHECKBOX_COUNT);
if (result === 2)
// user cancelled
return;
}
// here is the main script, after user has used UI
var selectedObjects = [];
for (var i = 0; i < objects.length; i++) {
if (values[i])
selectedObjects.push(objects[i]);
}
alert("Selected Objects: " + selectedObjects.join(", "));
})();
/**
* UI to select from a list of checkboxes.
* Requires ScollingCheckBoxGroup.js
* @param {Array<String>} objects - the checkbox titles.
* @param {Array<Boolean>} values - the initial checkbox values.
* @param {Number} checkboxCount - the number of checkboxes to display.
* @returns {1|2} - SUI dialog result code where 2 means user cancelled.
*/
function ui(objects, values, checkboxCount) {
var dialog = new Window("dialog", "Choose from objects");
// create an instance of a "scrolling checkbox group"
var scrollingCheckboxes = new ScrollingCheckboxPanel(dialog, objects, values, checkboxCount || 10);
// this checkbox will set all the checkboxes to match its value
var selectAllCheckbox = dialog.add("checkbox", undefined, "Select all");
selectAllCheckbox.value = false;
selectAllCheckbox.onClick = function () { scrollingCheckboxes.setAllValues(this.value) };
dialog.add("button", undefined, "OK", { name: "ok" });
dialog.add("button", undefined, "Cancel", { name: "cancel" });
dialog.center();
return dialog.show();
};
This is the ScrollingCheckBoxPanel constructor. It must be named "ScrollingCheckBoxPanel.js" and be saved in the same folder as the main script (unless you change the path and filename).
/**
* @file ScrollingCheckBoxPanel.js
*
* Experimental scrollable ScriptUI panel showing a collection of checkboxes.
* - Tested only on MacOS Illustrator 29.5.1 and Indesign 20.4.
*
* @author m1b
* @version 2025-06-16
*/
/**
* A ScriptUI panel containing a pseudo-scrollable list of checkboxes.
* Note: `texts` and `values` must be arrays of the same length.
* @constructor
* @author m1b
* @version 2025-06-16
* @param {Window|Group|Panel} container - a ScriptUI container.
* @param {Array<String>} checkboxTitles - the names for the checkboxes.
* @param {Array<Boolean>} values - the values for the checkboxes.
* @param {Number} checkboxCount - the number of checkboxes displayed (default: 10)
*/
function ScrollingCheckboxPanel(container, checkboxTitles, values, checkboxCount) {
var self = this;
self.checkboxCount = Math.min.apply(null, [checkboxTitles.length, values.length, checkboxCount || 10]);
self.checkboxTitles = checkboxTitles;
self.values = values;
// first and last indices
self.start = 0;
self.end = checkboxCount;
var scrollPanel = container.add('panel {orientation:"row", text:"Select Objects", alignment:["fill","fill"] }');
scrollPanel.preferredSize = [280, 130];
scrollPanel.maximumSize.height = 500;
var checkboxGroup = scrollPanel.add('group {orientation:"column", alignment:["fill","fill"], alignChildren:["left","top"], margins:[5,15,5,5] }');
self.scrollbar = scrollPanel.add('scrollbar {alignment:["right","fill"], preferredSize:[18,-1]}');
self.scrollbar.minvalue = 0;
self.scrollbar.maxvalue = values.length - self.checkboxCount;
self.scrollbar.controller = self;
self.scrollbar.onChange = scroll;
self.scrollbar.onChanging = scroll;
self.update = updateCheckBoxes;
self.checkboxes = [];
for (var i = 0; i < self.checkboxCount; i++) {
self.checkboxes[i] = checkboxGroup.add('checkbox {alignment:["fill","center"]}');
self.checkboxes[i].text = checkboxTitles[i];
self.checkboxes[i].controller = self;
self.checkboxes[i].index = i;
self.checkboxes[i].onClick = function () {
self.values[self.start + this.index] = this.value;
};
}
function scroll() {
self.start = Math.floor(this.value);
self.end = self.start + self.checkboxCount - 1;
self.update();
};
function updateCheckBoxes() {
for (var i = 0, j = self.start; i < self.checkboxCount; i++, j++) {
self.checkboxes[i].text = self.checkboxTitles[j];
self.checkboxes[i].value = self.values[j];
}
};
};
/**
* Set every checkbox value to `value`.
* @author m1b
* @version 2025-06-16
* @param {Boolean} value - the value to set.
*/
ScrollingCheckboxPanel.prototype.setAllValues = function setAllValues(value) {
for (var i = 0; i < this.values.length; i++)
this.values[i] = value;
this.update();
};
Maybe that is useful?
- Mark
