Illustrator shape is not connected

  • May 21, 2024
  • 3 replies
  • 6622 views

I use the latest Illustrator version 28.5 on a Windows PC.

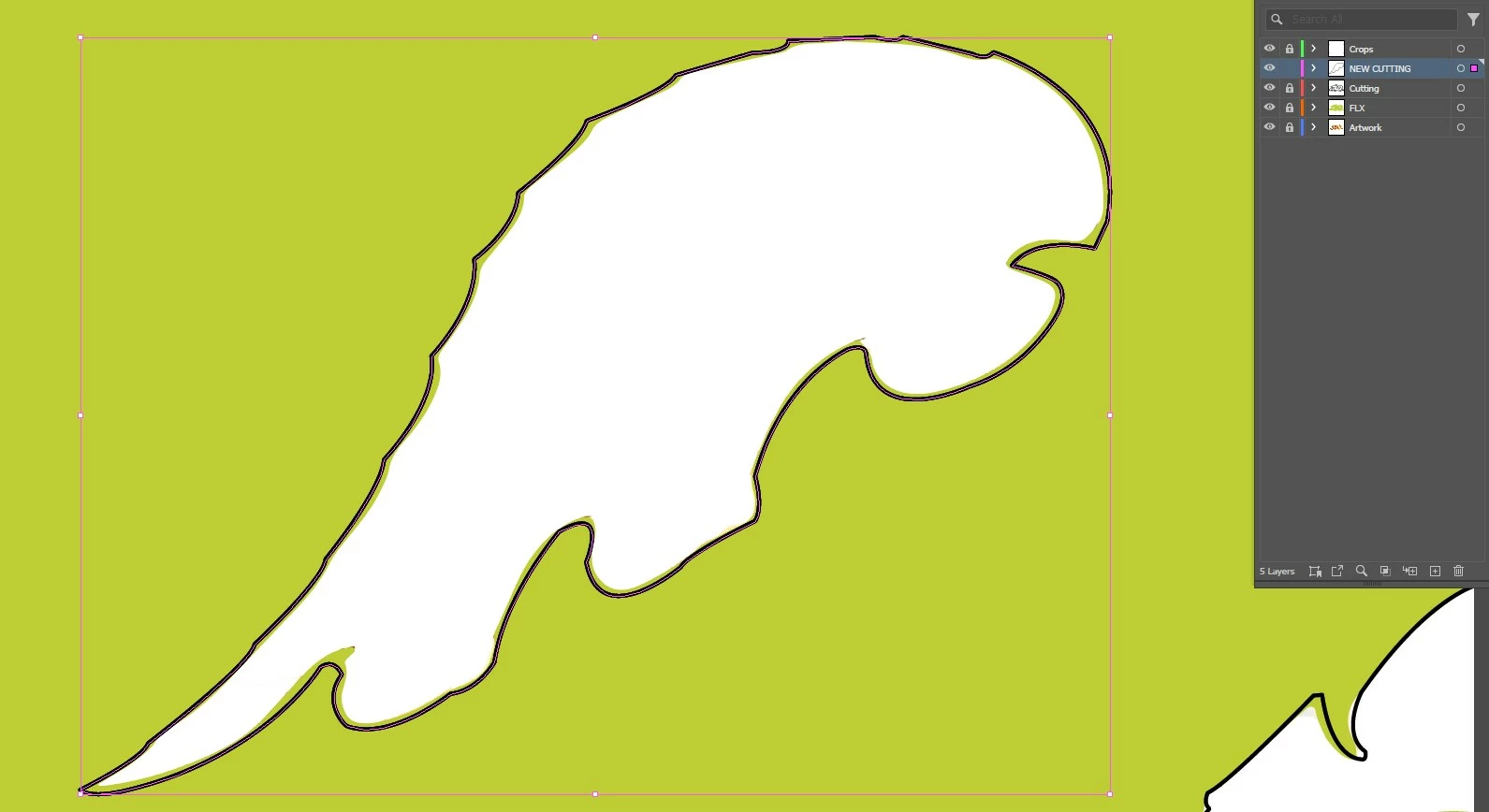

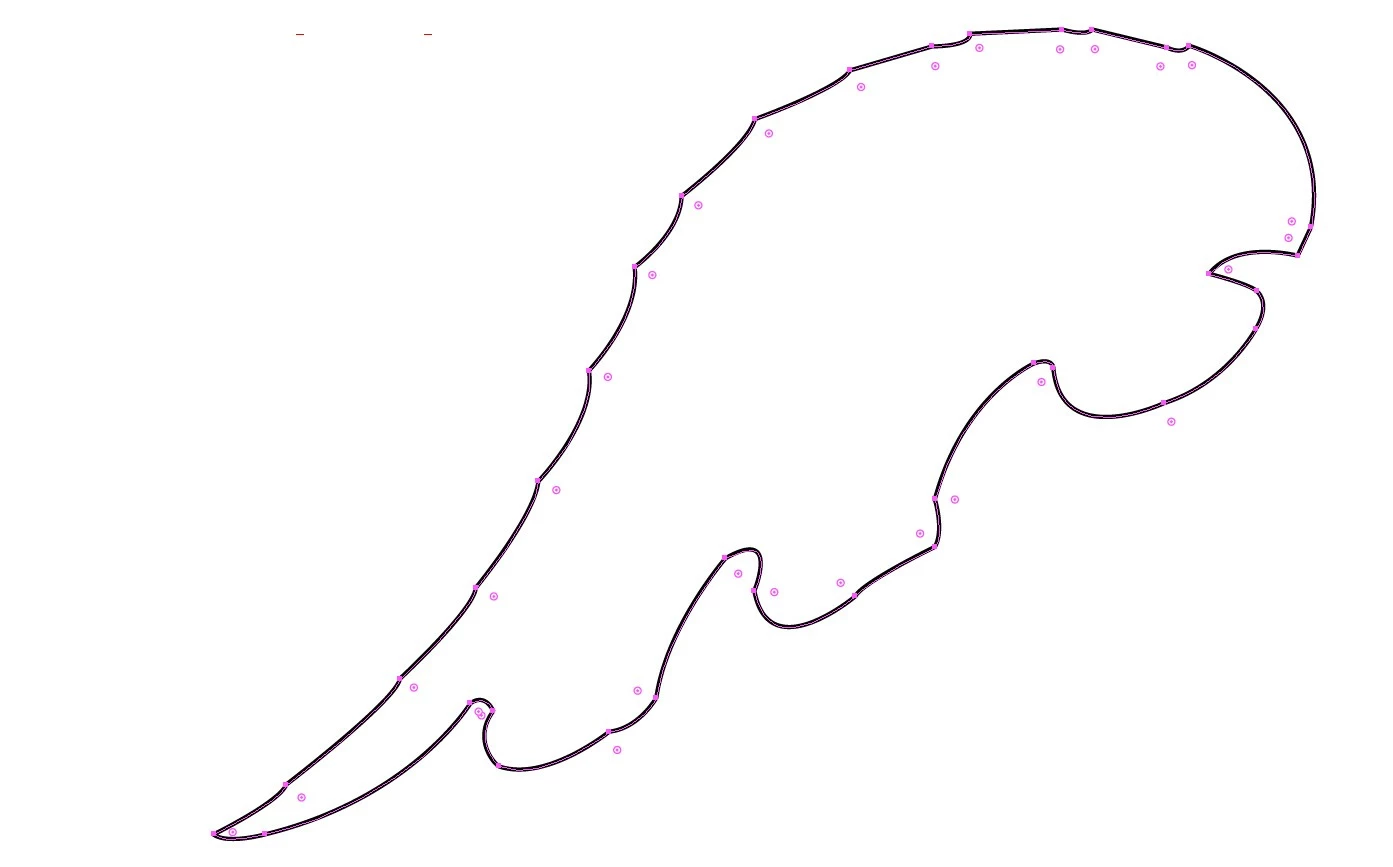

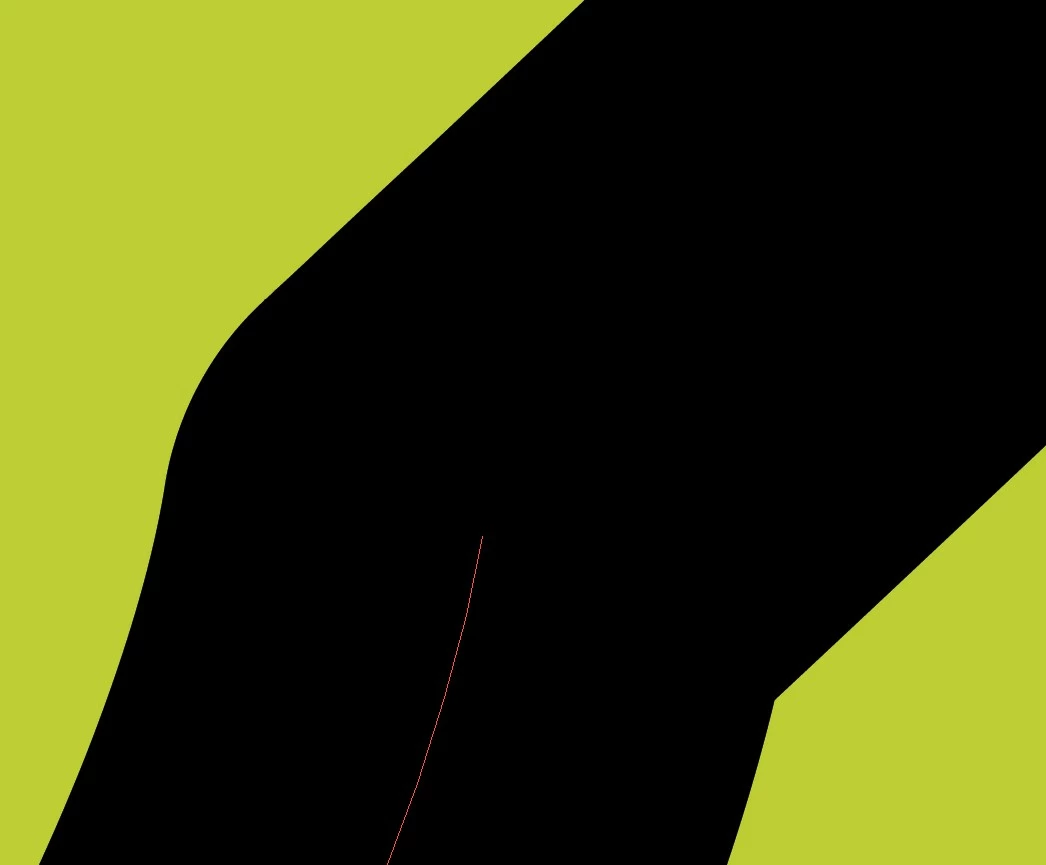

I created a shape using the Pen tool. It should be connected like always (Image 1 attached) but when i zoom in the dots seems disconnected (Image 2 attached). I use the lines for a CNC cutting machine, the cutting software doesn't read it when it's disconnected like that. What's the problem with Illustrator, I had no issue before.

This topic has been closed for replies.
Correct answer Bichoy PPP

I was going to ask if there were other formats. SVG is a pretty new player, so I'm sure there are other formats that might work better for you.


I got it finaly... after trying to change the settings of the svg file. It worked when i changed the CSS properties to "Style Attributes (Entity References)" & changed the Decimal places to "2" instead of 1.

3 replies

B
Bichoy PPPAuthor
Inspiring
May 21, 2024

Monika Gause
Community Expert
Monika GauseCommunity Expert
Community Expert
May 21, 2024

The object does just have a stroke. Where does the white come from? And where oes the green come from?



Your trouble is the loose white fill?

B
Bichoy PPPAuthor
Inspiring
May 21, 2024

Sorry about the confusion.. The White & Green are different layers fill as you see in Layers panel. Attached is just the shape i'm working on.

jane-e
Community Expert
jane-eCommunity Expert
Community Expert
May 21, 2024

@Bichoy PPP



Try selecting the path with the Selection tool, then hit Cmd+J (Ctrl+J).



Jane



B
Bichoy PPPAuthor
Inspiring
May 21, 2024

Thank you Jane, That was my first thought but it's not working 😞

Monika Gause
Community Expert
Monika GauseCommunity Expert
Community Expert
May 21, 2024

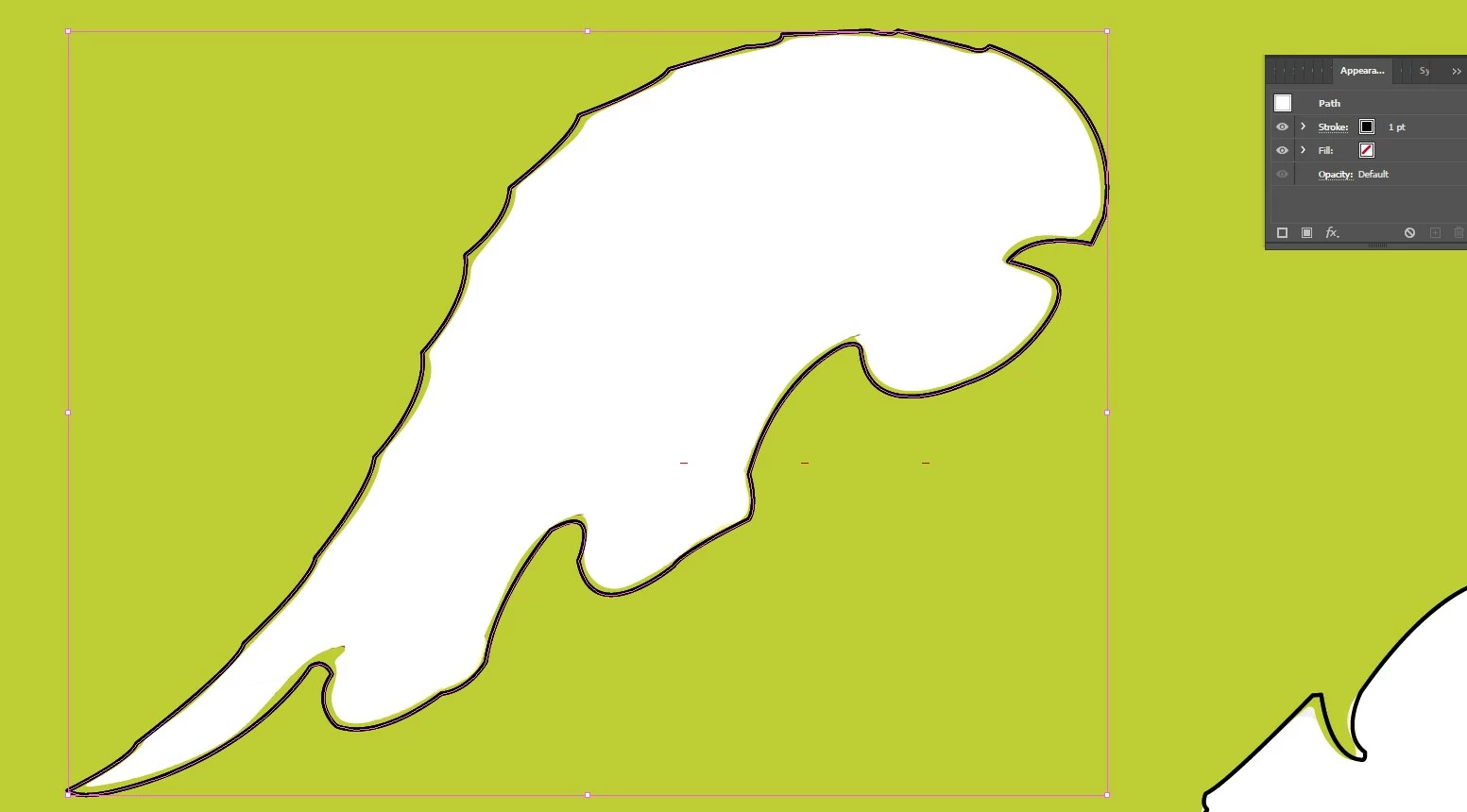

Can you please select those shapes and show screenshots of them in the layers panel and also the Appearance panel. Please embed your screenshots in your post, so we do not have to click on them to open them.

B
Bichoy PPPAuthor
Inspiring
May 21, 2024

I did. Check it out, Please! Thank you 🙂
