Illustrator: Trying to remove many small pieces like the attached

Forum|Forum|7 years ago
October 24, 2018
3 replies
6654 views

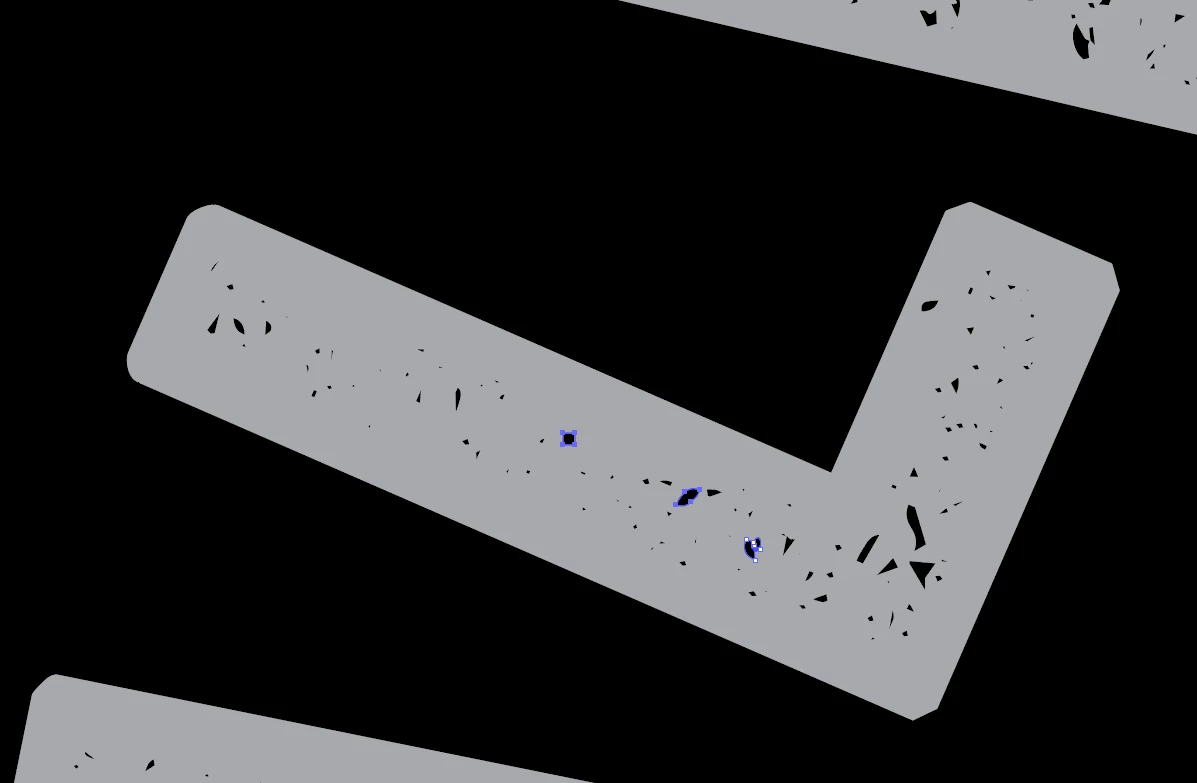

Trying to remove small pieces of this object can do one by one want to know a quicker method for doing this. Thanks

Correct answer Les ONeill

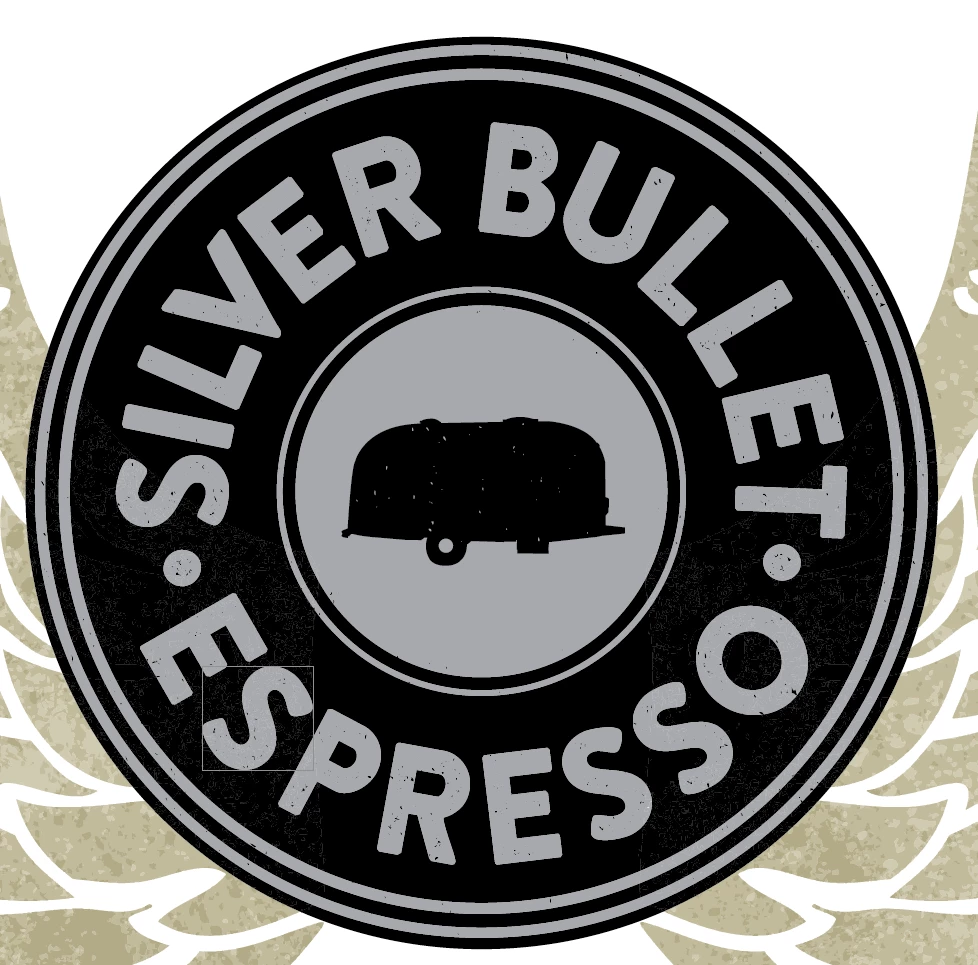

Here is the whole picture

OK. I would select one of the small pieces you want to delete (they look like black fill/no stroke, but I can't be certain). Go to the select menu and choose 'Same/ Fill and stroke' this should select all the black dross but possibly also the large black circle/s, if so, then shift select them to deselect and then hit delete

boonheilig

Participant

If I might add, there is also a script that selects paths by size, called fittingly "SelectPathsBySize"
https://github.com/johnwun/js4ai/blob/master/SelectPathsBySize.jsx

I

isabellaw87200276Author

Known Participant

Ok I shall try that - thanks

Monika Gause

Community Expert

THat is type converted to outlines? So it's a compound path?

In that case what you could try is release the compound path and then use "Unite" from the pathfinder panel (top left button). Will only work for letters that don't have a hole in them.

For the other letters you could try and release the compound path, then color the former "hole" differently. Then select all the parts that belong to the letter and use the button "Merge". Then delete the differently colored "hole"

It would be best to move all the letters to a new layer first and lock all other layers.

L

Les ONeill

Inspiring

Lock the large objects that you don't want to select, then use the lasso tool (Q) and drag to define a shape around the small objects and delete

I

isabellaw87200276Author

Known Participant

I have many of these to do is there a quicker way?

L

Les ONeill

Inspiring

Without seeing the whole picture it's hard to say. But if it's relatively easy to select the objects that you don't want to delete then do that and then 'select inverse' (from the select menu) and hit delete
