Illustrator v24 Flatten or merge everything to make a single object on a single layer.

  • June 3, 2022
  • 2 replies
  • 452 views

Illustrator V24

Windows 10



Hello



This is my first question here so I hope some on can help.



I am new to Illustrator and slowly learning but I have hit a brick wall with this issue so need to ask.



I have built 5 complicated shapes using a combination of box shapes, lines and the paint brush tool.

They are all the same colour.



I am sure there is a correct way to do it but I am not there yet and I have been able to get the design I want.



The issue is that Illustrator has placed every single thing I did on it's own layer meaning I now have around 80+ layers for each of the five shapes..



I want to combine or merge, or what ever the illustrator equilvent is to make each shape one solid object preferably on the same single layer.



I have spent the last two days watching every tutorial on youtube and google searching but nothing has provided the answer to my situation.



Can anyone assist?

This topic has been closed for replies.

2 replies

Bill Silbert
Community Expert
Bill SilbertCommunity Expert
Community Expert
July 1, 2022

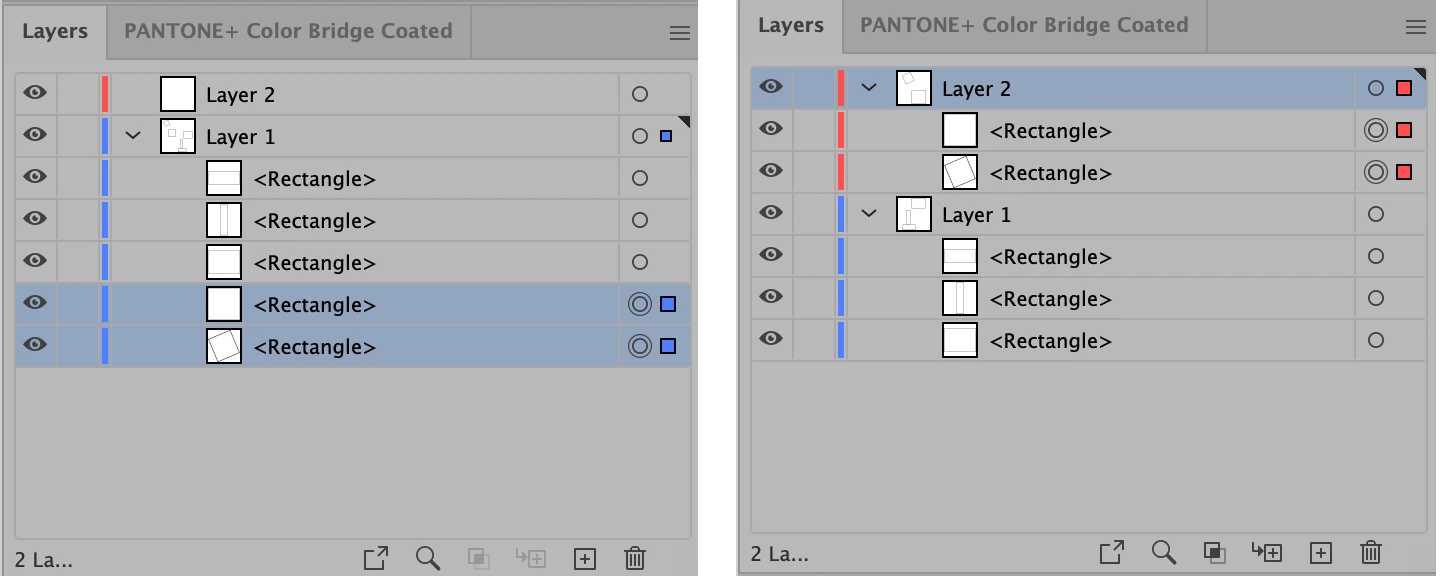

Are you sure that what you are seeing are 80 separate layers rather than one layer with 80 sublayers? In Illustrator every new object added on a layer becomes a sublayer. If this is the case for you then try selecting one of the five complex objects you mentioned. You'll note in the screen shot that the selected objects will have a solid square showing at the right of the sublayer. If you choose all of the layers with a solid square next to them you can then drag them all to a new layer that you've created in the layers panel by clicking on the square with a + sign in it from the bottom right of the panel. By repeating this for all of your complex objects you can wind up with five layers each containing only the appropriate sublayers.

Met1
Met1
Legend
July 1, 2022

This is destructive, so do a Save As.

Isolate each layer, then Select All, convert strokes to outlines, select all click on Merge in Pathfinder, then Trim in Pathfinder. This should isolate every single item on your page irrespective of if it was in a group, compound path or clipping mask.

Now, when you ran Merge and Trim Illy creates additional clear and/or white fills [I don't know why] where there was white or clear previously, you need to clear those for the next step - sometimes they are white, sometimes clear, sometimes 0% black - again I'm not sure why. You need to look for them in preview (ctrl-Y) - they'll be lines where you are expecting none - select one of them, select same fill color, delete...

Select All, then Unite in Pathfinder. Volia!* Repeat for each layer. (If youwant to "merge" the whole doc, have all layers visible.

You might be able to do that last step with the Shape Builder tool, but I'm not proficient in that yet, doesn't always do what I expect / want.

(*I think! - like I said, do a save as first!)
