In illustrator when I apply 100 Black to objects the colour is still black composite

Forum|Forum|9 years ago
November 7, 2016
2 replies
625 views

I have just updated to Illustrator 21.0.0. I work on a macbook pro retina. Inside a CMYK file, whenever I apply a colour of 100 K to an object, it is still converted to a composite black. The only way to sort it out was to manually input the values in the colour picker, C0, M0, Y0, K100.

My friend works on a windows machine and he doesn't have this problem. Has anyone else encountered this issue?

Regards,

Grieux

This topic has been closed for replies.

Correct answer Ton Frederiks

Yes, it has probably been an RGB document in a previous life.

When an RGB document is converted to CMYK, the swatches get converted too.

If you use such a converted black swatch you get the rich black.

In such a document it is better to get rid of the swatches and load the default CMYK swatches.

Ton Frederiks

Correct answer

Community Expert

Yes, it has probably been an RGB document in a previous life.

When an RGB document is converted to CMYK, the swatches get converted too.

If you use such a converted black swatch you get the rich black.

In such a document it is better to get rid of the swatches and load the default CMYK swatches.

A

Anonymous

Thank you for your answer.

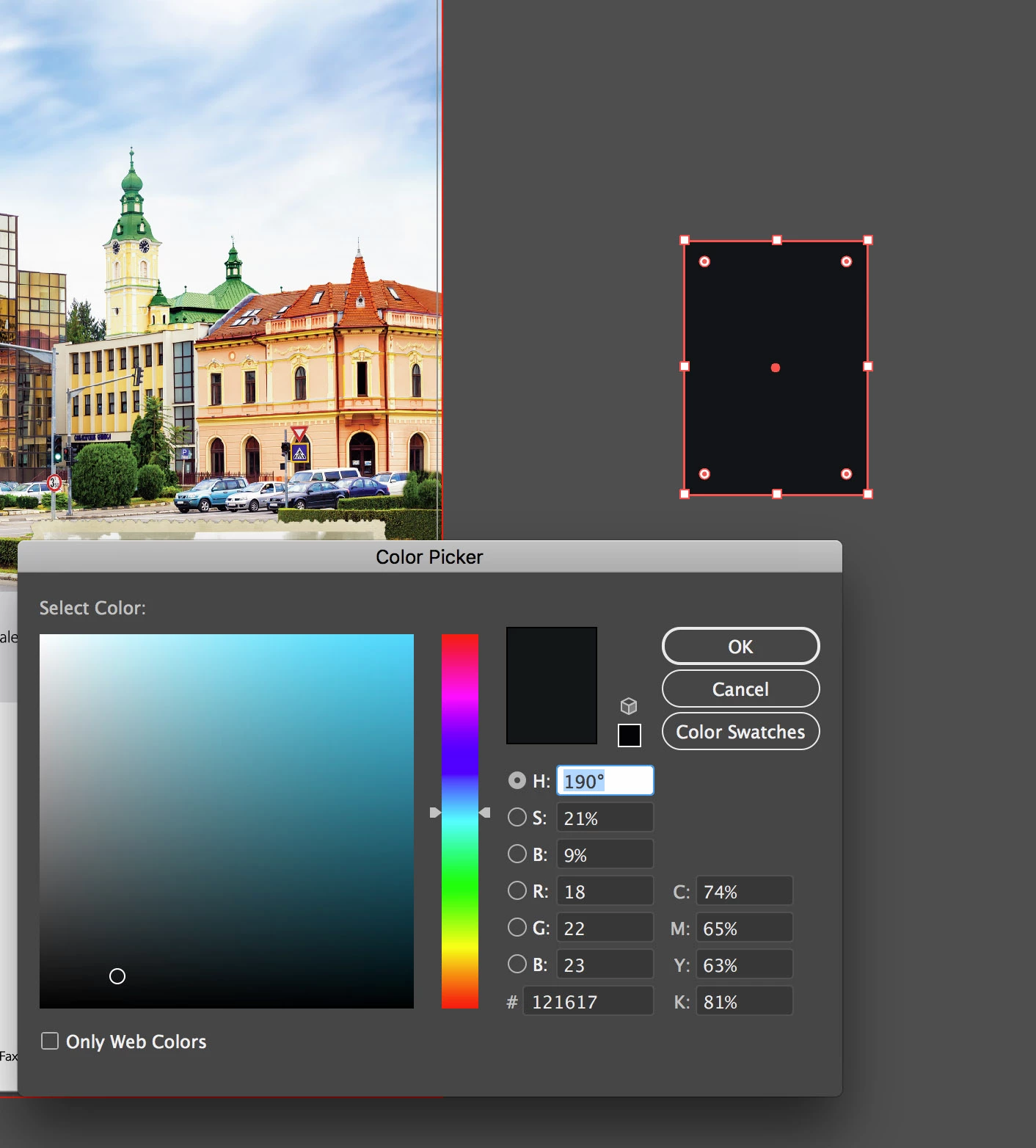

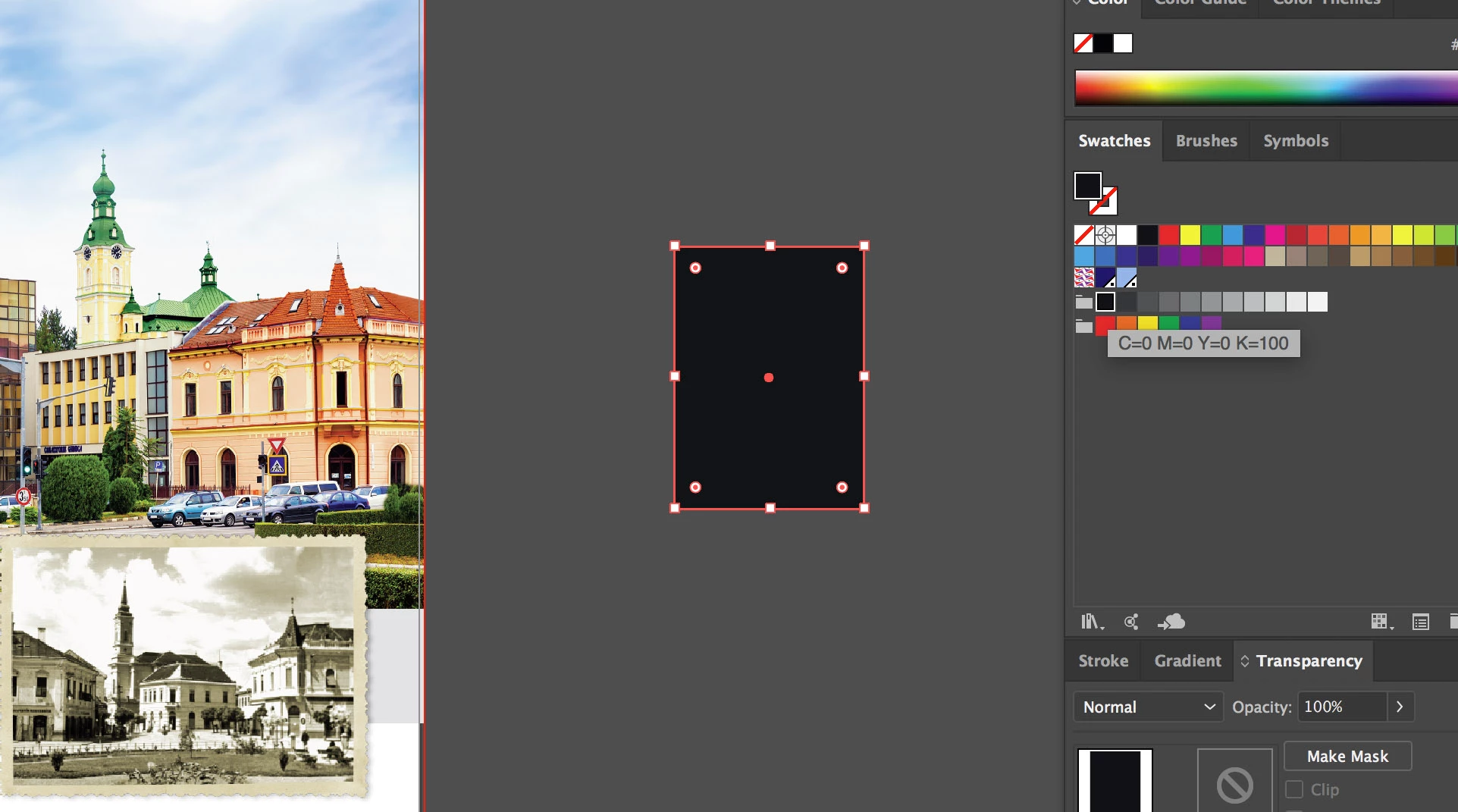

I understand what you say, but in this case shouldn't the converted swatch indicate the composition for rich black? In my case it says 100k, when I rest the mouse on it for a second, as you can see in the first screenshot. But the color reported by the color picker is rich black (second screenshot). It's awkward. I have reloaded the swatches and now it's fine. Thank you so much.
