Inverting colour on overlapping lines with shapes

Forum|Forum|5 years ago
August 26, 2020
3 replies
4149 views

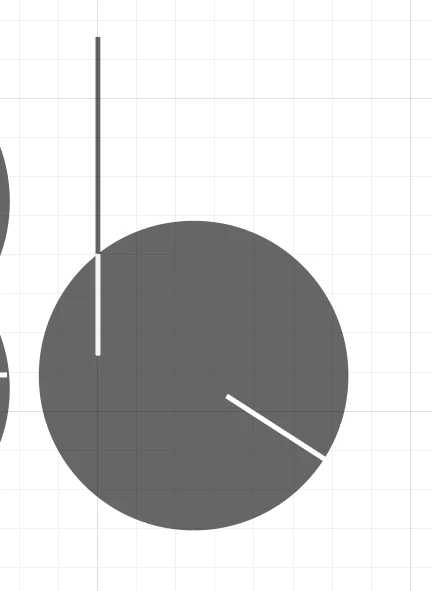

hey im wondering how i can make overlapping lines on shapes turn white, right now i've broken the line up in to two and turned half of it white and the other half regular, but it makes a sharp line that doesn't follow the shape of the circle underneath. been looking for answers for so long now would really appreciate your help 🙂

This topic has been closed for replies.

Kurt Gold

Community Expert

The sample file was originally created in Illustrator CS5 and in that version it is working properly.

Just noticed that using the file in Illustrator CC 2020 is a bit wonky since the Calligraphic brushes change their behaviour when you move them around (that should not happen). Probably it would just have to be recreated in CC 2020.

Kurt Gold

Community Expert

You may also take a look at another technique in the sample file below.

https://drive.google.com/file/d/1P6aK9DnKUvZIScvyPSoZcJENMAvTimxe/view?usp=sharing

Ton Frederiks

Community Expert

Nice, Kurt!

Ton Frederiks

Community Expert

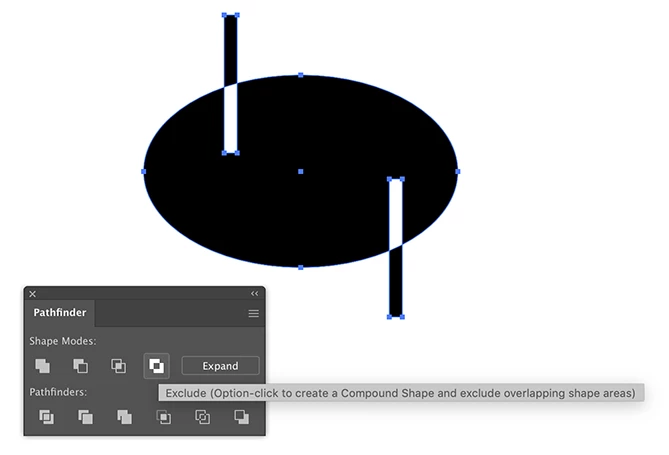

If you outline the lines, you can select both the line and the background object and Alt -click Exclude in the Pathfinder panel to create a compound shape.
