Is extrude along a path possible?

Forum|Forum|3 years ago
May 15, 2023
2 replies
1749 views

Hello! I need to draw stairway parts. Hand rails, balisters, and non-symetrical or non-organic shapes. In 3DS Max, I can extrude a shape along a path. I'm not sure if Extrude and Bevel can do what I need. This handrail is the kind of shape I need to make:

Thank you for any help!

This topic has been closed for replies.

Ton Frederiks

Community Expert

https://helpx.adobe.com/illustrator/using/blending-objects.html

Ton Frederiks

Community Expert

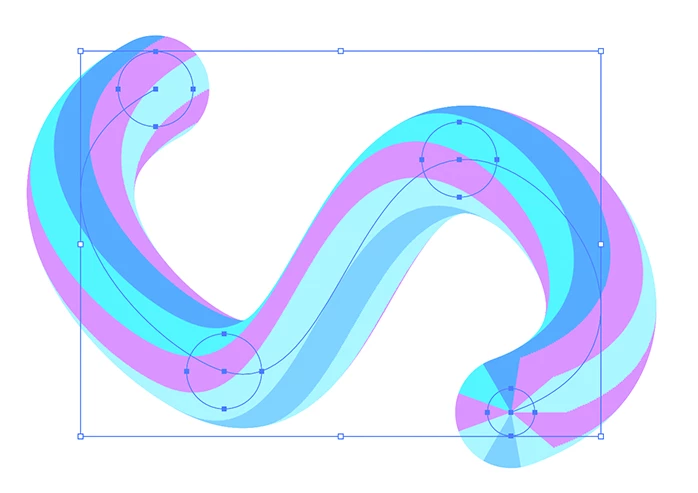

You may try the Blend tool with 2 or more rotated objects and replace the spine.

D

defaultkk0w3osmgh3x

Participant

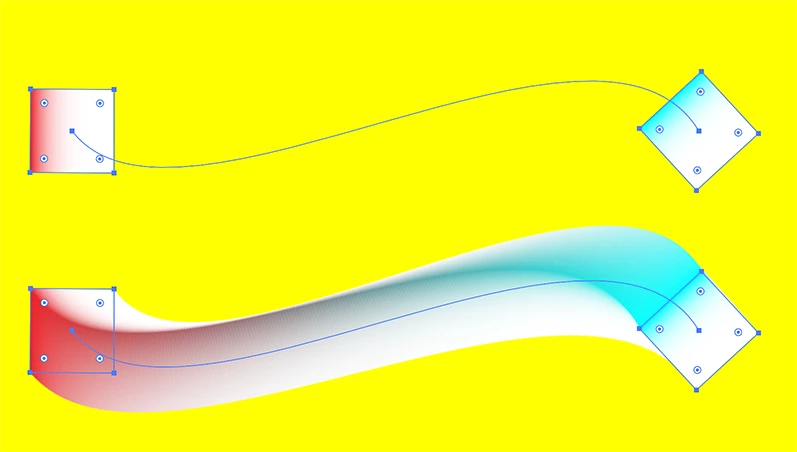

Thank you, Ton! This is getting me closer to what I need. Can I adjest the spline in a 3d space? It has the wrong angles as it is only drawn flat. Also, I have the Blend set to 900 trying to loose the lines going across the shape. Is there a better way to do this? Thank you!

Ton Frederiks

Community Expert

No, you cannot adjust the spline in 3D. As for the number of steps, the blend will always contain separate objects between the blend objects. Instead of blending between 2 objects, you can blend between multiple objects that each will have the number of steps between them.
