Is it possible to use a continuous image across multiple artboards WITH bleeds?

Forum|Forum|9 years ago
February 16, 2017
2 replies
9935 views

Here is where I am confused...

I am creating a trade show display for a client. They need 5 individual boards, each 4'x8'. So the total display once put together will be 20'x8'.

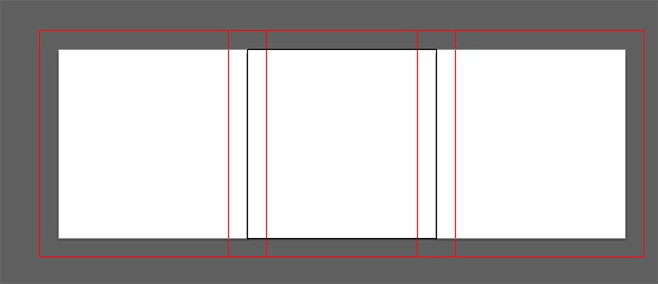

I have 5 artboards, which I created with a 1/4" bleed around each.

Is it possible to use a continuous image as part of the background that spans across all 5 boards (the whole 20'), WITH the document bleeds?

Because I've only been able to do it with 0 bleeds.

This topic has been closed for replies.

Luke Jennings

Inspiring

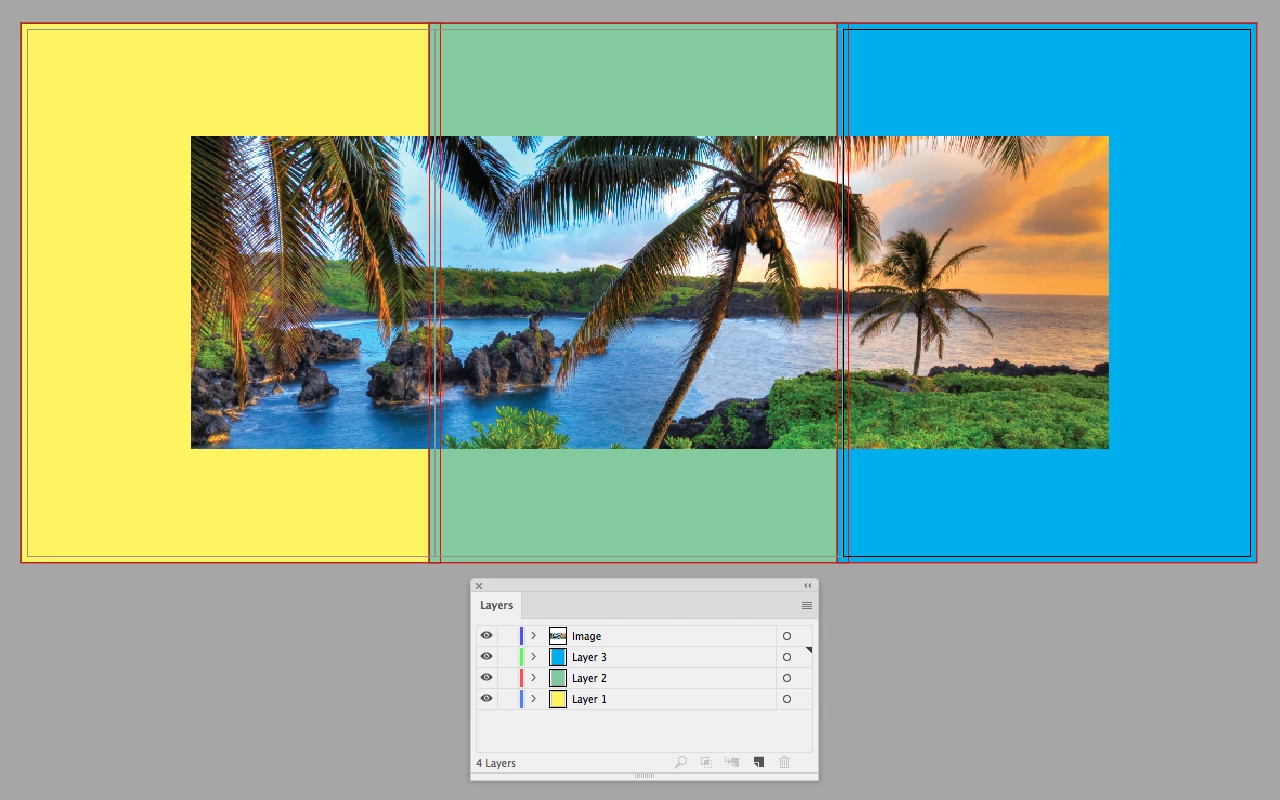

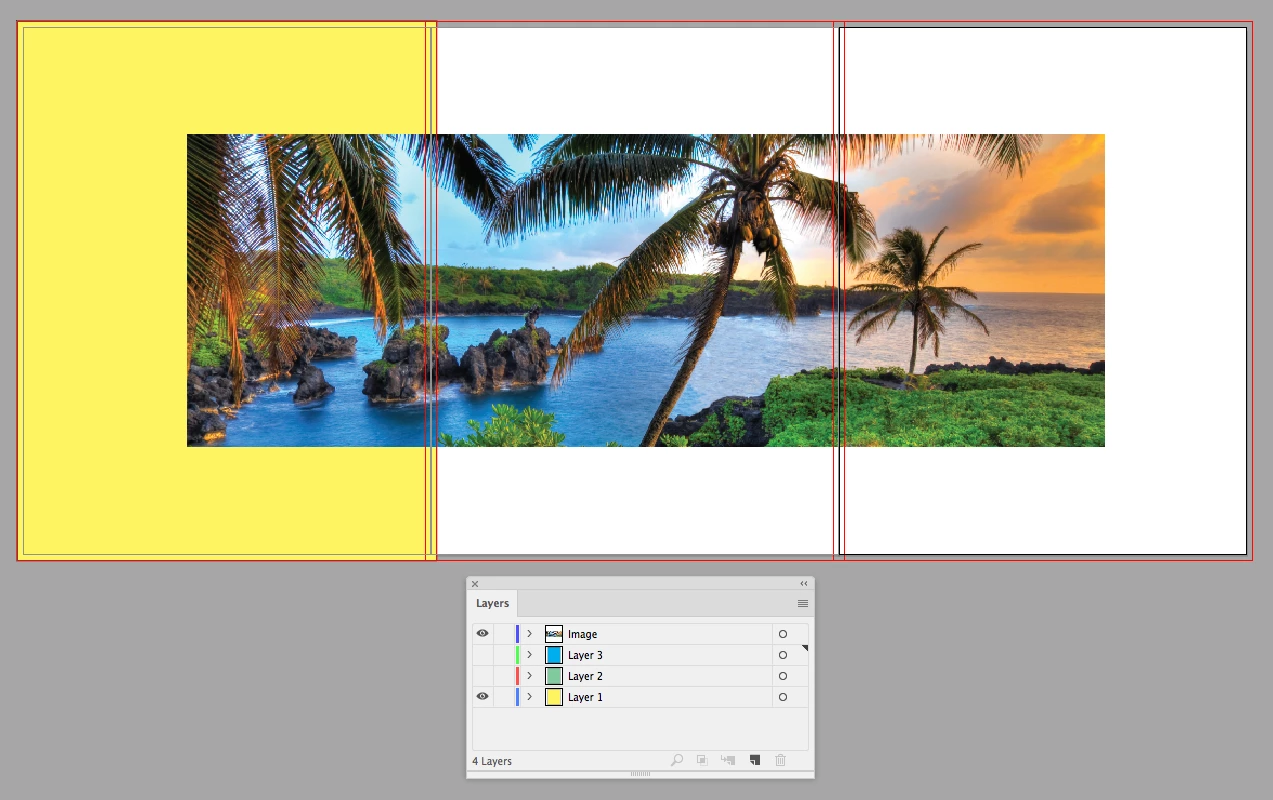

I would use a separate layer for each panel, with the cross over image on top, on its own layer. Each panel would have the needed image bleed and also the panel background bleed (if any). Set up butting artboards with the document bleed set to .125" (assuming you are working at 1/2 size). Save as a separate PDF for each panel, turning off the layer visibility of the other panels. Include trim marks, offset the same amount as the document bleed.

E

efficient_Beekeeper5F93

Participating Frequently

Hi there! I would like to know if this is achieavable on Adobe XD (I don't need the bleed but I would love to have a background image that continues on different artboards).

Is it possible? Would consider some plugins too if necessary
