Is there a technical explanation for why outline strokes that are not aligned centered are converted into a filled object during PDF export?

Forum|Forum|22 days ago
August 18, 2026
12 replies
97 views

The problem came up at the agency today, and it took us hours to figure out why the print shop kept rejecting our PDF. (We needed the stroke for a cutline)

At some point, we found an answer online stating that outline strokes are only exported as such if they are aligned centered. Otherwise the object will be exportet with filling and no stroke at all. But why is that the case from a technical standpoint? Wouldn't it be helpful to receive a warning message during the export process?

We just want to understand how this is working. Thanks in advance!

Correct answer Ton Frederiks

@Franziska2202788319tf I believe that is caused by the origins of Illustrator. Illustrator and later PDF were based on the Adobe PostScript page description language, which has only the center aligned stroke. Illustrator added the align Inside and Outside stroke options later, which have no equivalent in PDF.

B

Bobby Henderson

Community Expert

What application is being used to perform the actual path cutting? When I think of cut paths I usually think of them in terms of large format printing and then die-cutting after the print is laminated. A large format RIP application would be involved. Of course there are other use cases where cutting after printing is involved. In either case any third party applications may have trouble properly importing PDF files with off-center line strokes unless they can support the latest PDF file versions. Some limitations may still be involved.

Is there a reason why the cut path has to be made off center? In projects where I need to use a cut path I have the path set exactly where I want the plotter blade or routing bit to cut. If I need bleed going past the cut path I’ll have separate objects filled (or stroked) for that bleed to be printed. I have to assign cut path strokes with a specific spot color (usually “CutContour”).

F

Franziska2202788319tfAuthor

Known Participant

Hello, thanks for responding! We received this certain object with the inside aligned path from another agency. For now we think it was set by mistake maybe, but we wanted to respect their brand guidelines and try to keep it at first.

If I need bleed going past the cut path I’ll have separate objects filled (or stroked) for that bleed to be printed. I have to assign cut path strokes with a specific spot color (usually “CutContour”).

That’s exactly what we do, too. :)

I don't know what software the print shop uses, but based on the information in the replies here, it makes total sense why they couldn't process the file.

B

Bobby Henderson

Community Expert

The situation makes me wonder if the intended cut path is trying to perform multiple duties.

In Adobe Illustrator it's possible for a single path to carry multiple effects or appearances. However, a PDF output from Illustrator may render those various appearances in convoluted ways and make it difficult for anyone working with the artwork to understand what's going on unless they open the PDF in Illustrator. The PDF would have had to be saved with Illustrator Editing preserved and those appearances would need to be visible in the Appearance panel. Many client-provided PDF files don't arrive in that condition.

For sign making/large format printing purposes a cut path has to be its own dedicated path (with a spot color assigned to the line stroke as well). I’ll often have cut paths isolated on their own separate layer for organization purposes. Any colored line strokes meant to be printed inside or outside the actual path would need to be separate objects. If I'm printing in-house I might be able to trust live stroke effects. If I have to send the artwork to another company to output the job I'll probably expand any live line strokes into raw editable paths.

Dave Creamer of IDEAS

Community Expert

The stroke should still remain visually. Non-centered strokes just become a separate object.

Try copying the art and using the Outline feature on the Pathfinder panel. With a little editing, it can make a good cutline.

David Creamer: Community Expert (ACI and ACE 1995-2023)

Abhishek Rao

Community Manager

Hi @Franziska2202788319tf,

Thanks for reaching out and for raising this question.

To help us better understand and investigate the behavior, could you please share a screenshot from Illustrator showing the original object along with its stroke/alignment settings, and a screenshot from Acrobat showing how the same object appears in the exported PDF?

Please also share a screenshot of the PDF export settings used in Illustrator for reference.

This will help us better understand the exact workflow and behavior you're seeing.

Thanks,
Abhishek

F

Franziska2202788319tfAuthor

Known Participant

Hello, thanks for responding. :) I try my best to show our workflow, unfortunately our software is set to German. Hope that’s okay.

Here are our specs:

Mac Studio
Chip: Apple M1 Max
Mac OS Tahoe 26.3

Illustrator Version 30.7

Acrobat Pro Version 2026.001.21789

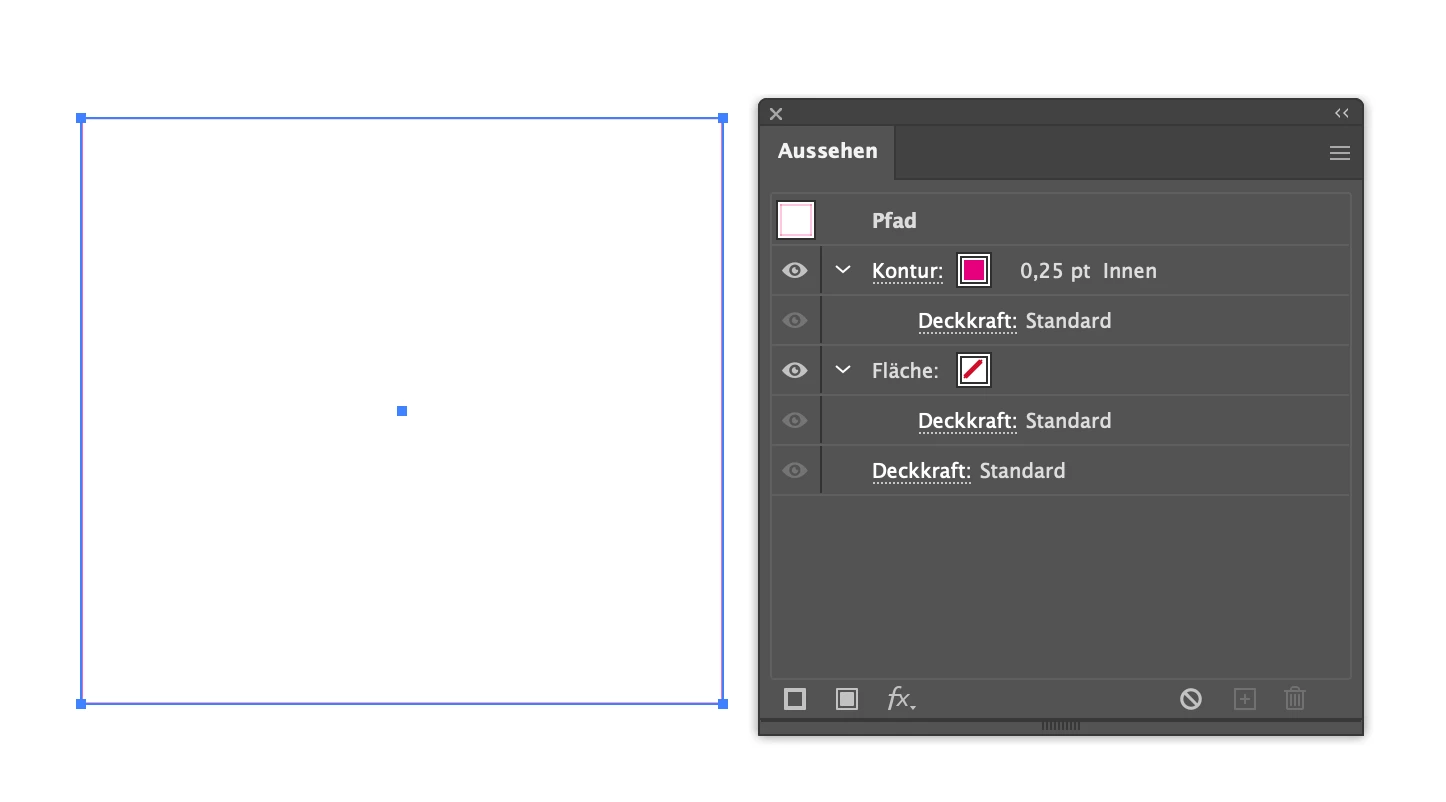

So this is a sample object with a stroke cutline, that is aligned inside. (We recieved this from another agency with this alignment-setting and wanted to keep it to respect the brand design. For now we think it was not supposed to be aligned like this honestly.)

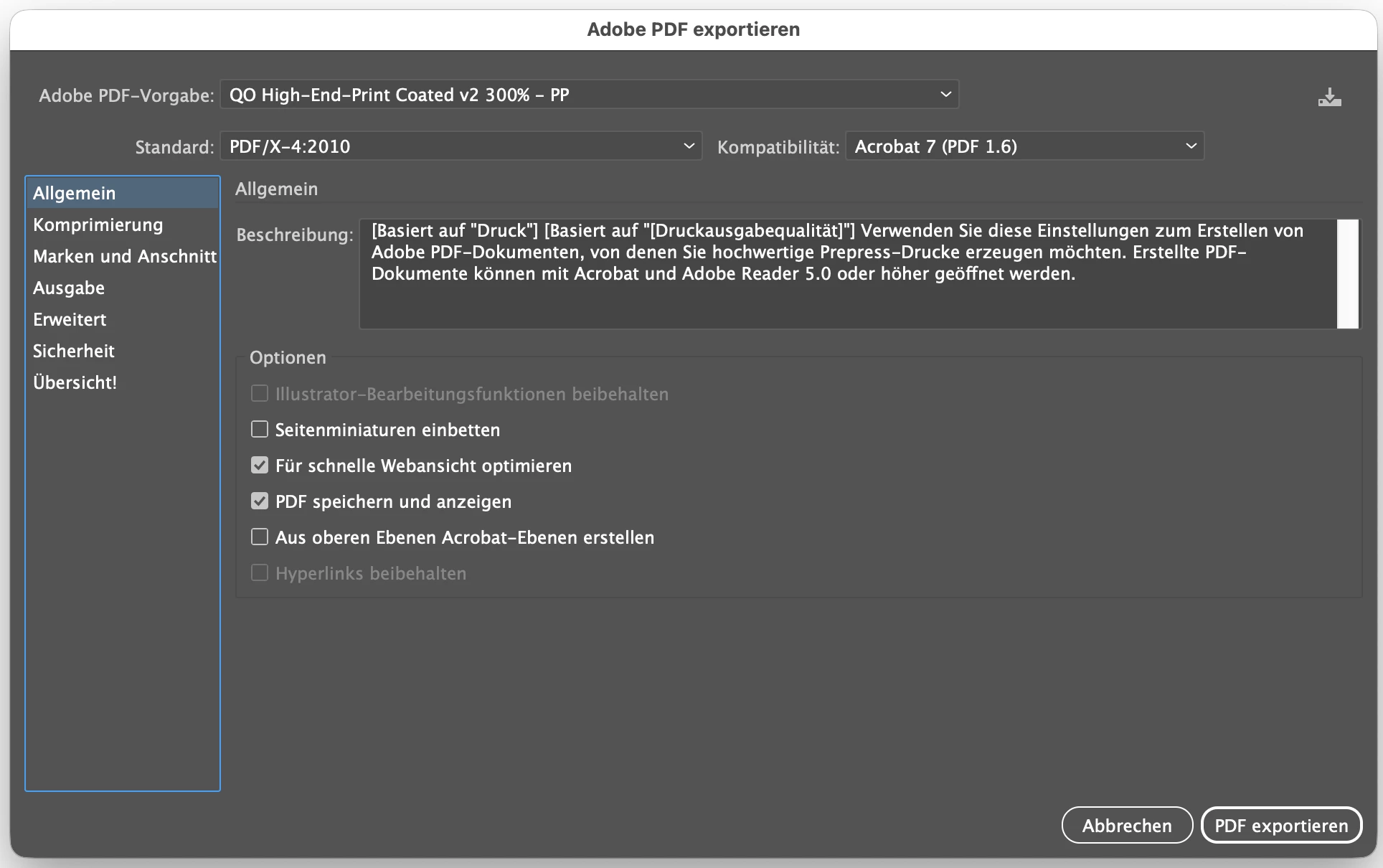

This is the PDF export-profile we have to use. @Ton Frederiks already stated that the behaviour we came across does not happen with export profiles that provide lllustrator Editing capability. That’s already good to know in general. (I think therefore this screenshot of the settings is sufficient.)

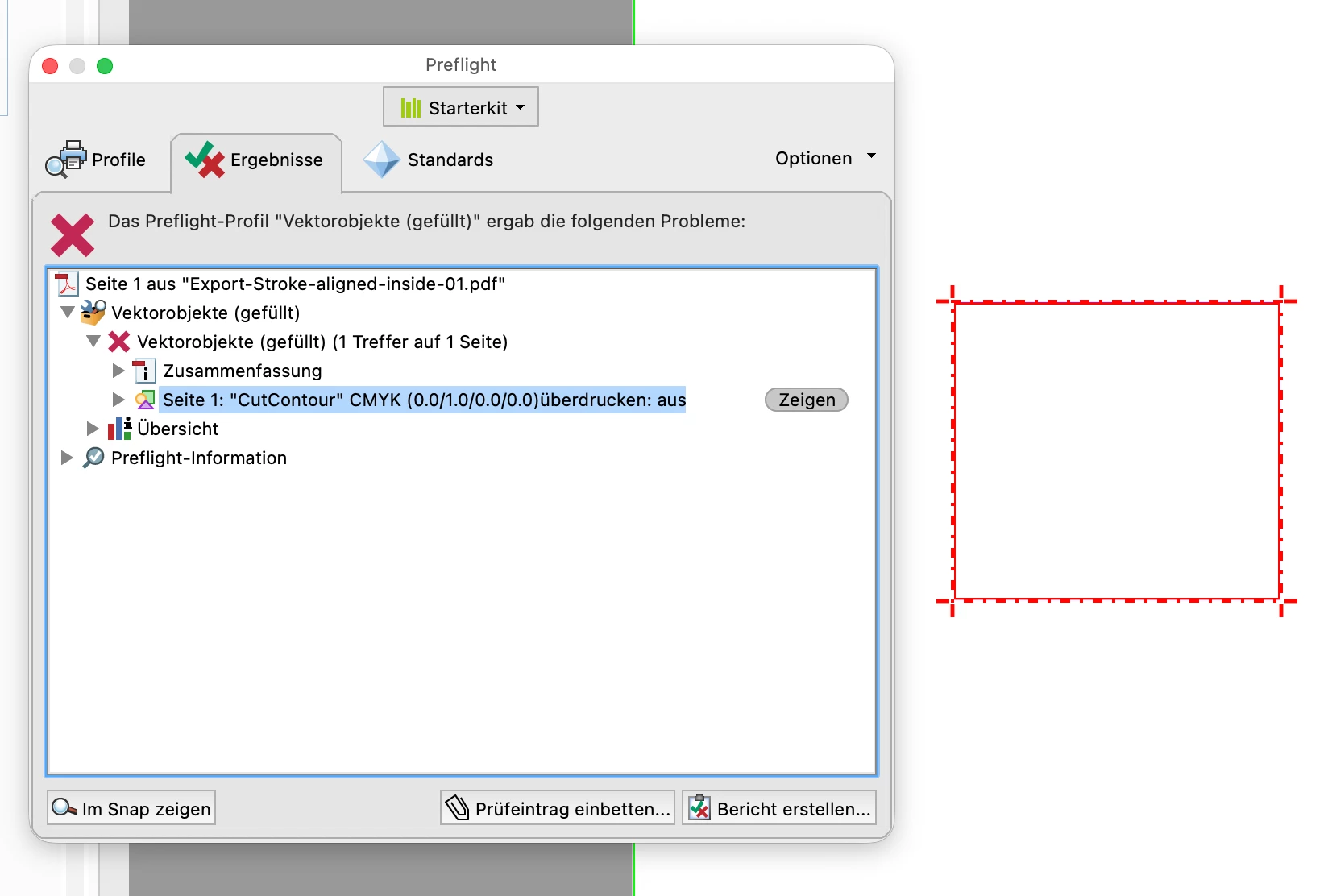

In Acrobat the visible object looks fine but with a preflight check it’s marked as filled object correctly.

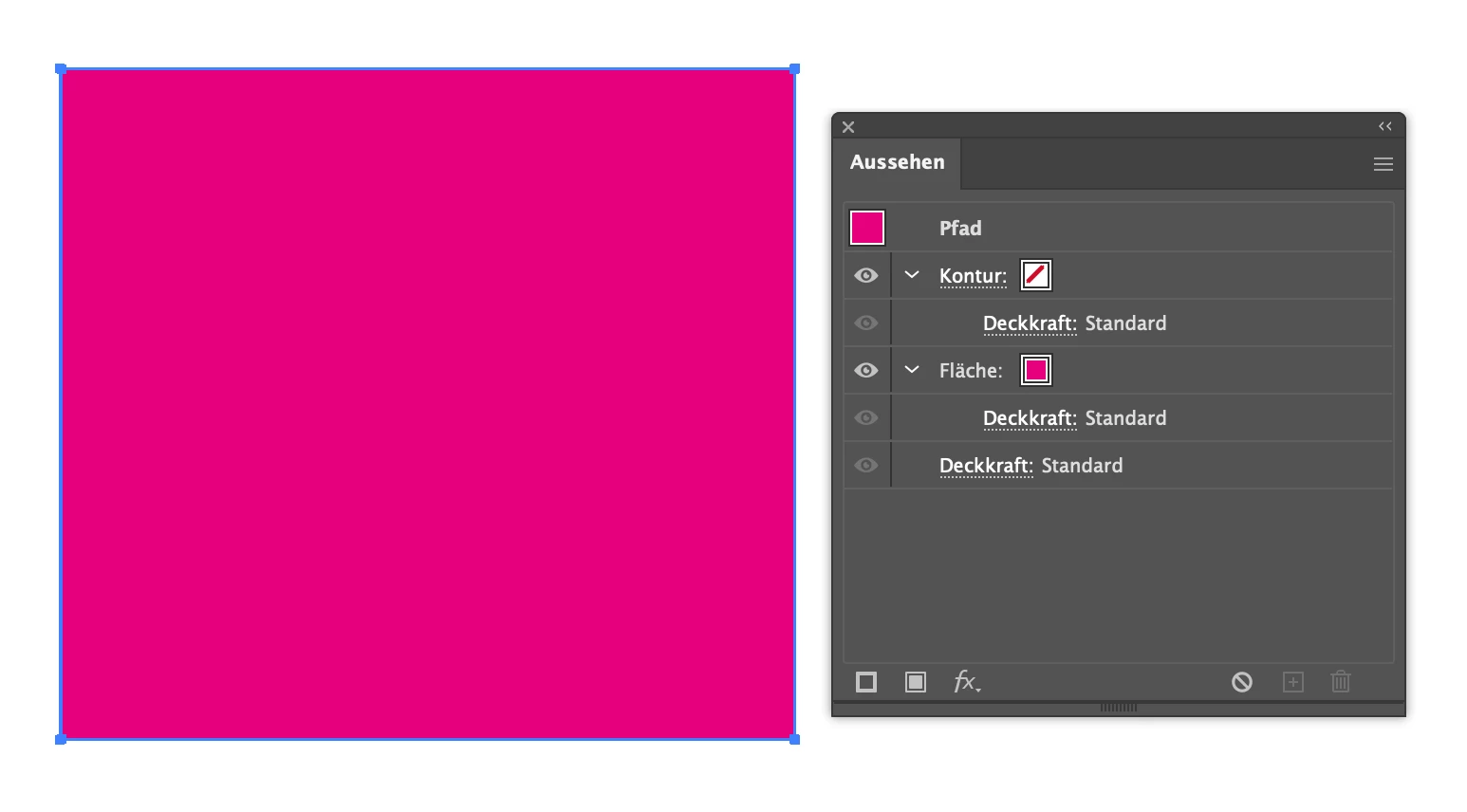

When I now open the PDF in Illustrator the object has this settings. It’s a compound path without a stroke, instead the color is set to the filling now.

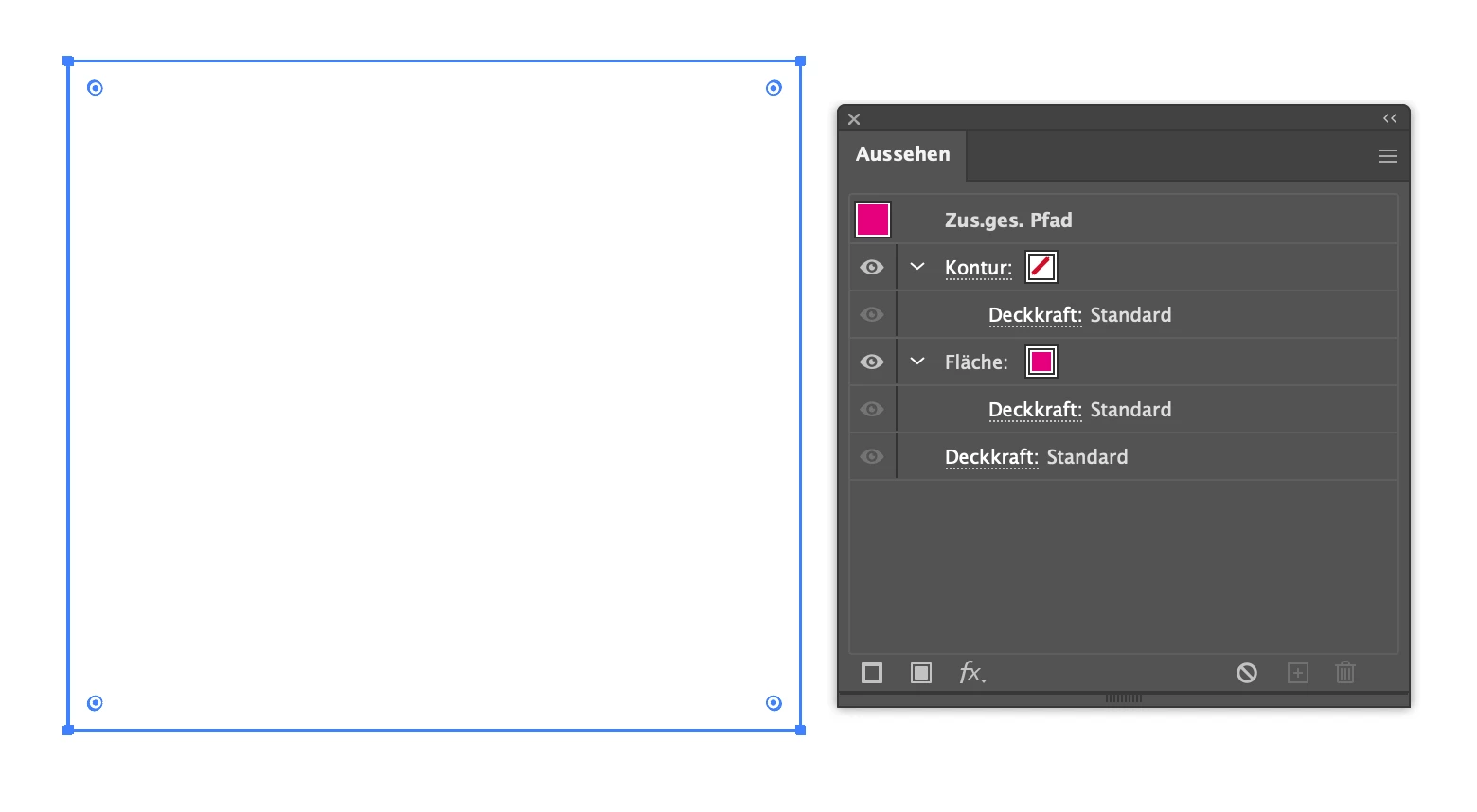

When I right-click and release the compound path I see the filled object as expected. For us it’s kind of interesting to know why the object is handled that way technically. But overall we’re already happy to found out how to prevent it the future. Even so some sort of warning before exporting a PDF with not centered strokes and without lllustrator Editing capability would be pretty awesome. :)

Ton Frederiks

Correct answer

Community Expert

@Franziska2202788319tf I believe that is caused by the origins of Illustrator. Illustrator and later PDF were based on the Adobe PostScript page description language, which has only the center aligned stroke. Illustrator added the align Inside and Outside stroke options later, which have no equivalent in PDF.

Ton Frederiks

Community Expert

@Abhishek Rao It is easy to test, save an Illustrator file with objects stroked, center, outside and inside as a PDF without Illustrator Editing capability. Open the result in Illustrator, only the center aligned object keeps the stroke.

F

Franziska2202788319tfAuthor

Known Participant

Thanks for responding! Yeah, that’s the behaviour we have right now and because we need certain PDF Export-Profiles for the printer the illustrator editing capability is lost while exporting. This at least gives us some sort of explanation to communicate to collegues to prevent problems in the future.
