Is there a way to allow a pattern to extend past the shape?

  • February 23, 2024
  • 2 replies
  • 392 views

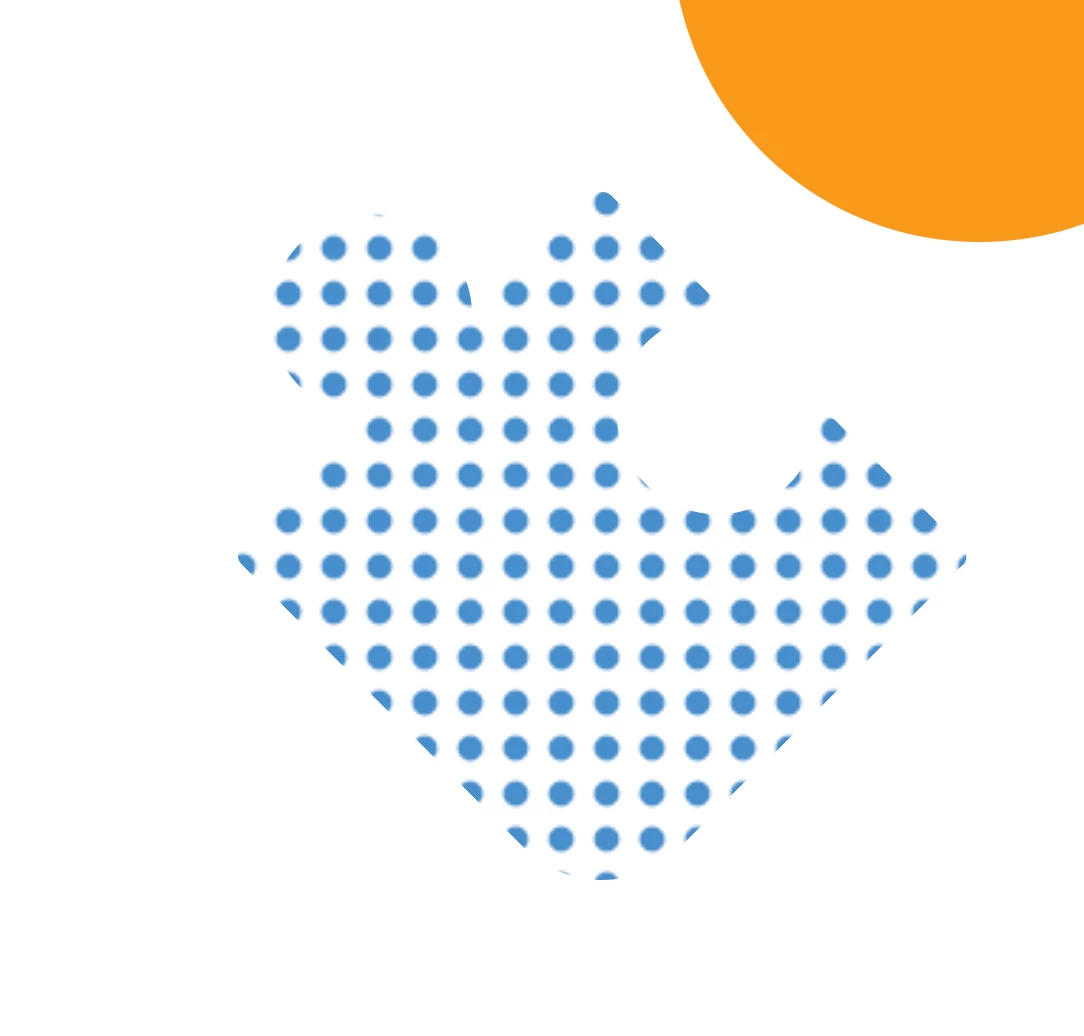

I'm trying to fill some shapes with little circles so I created a pattern to fill the shape. I can't find a way to allow the circles to go past the shape (at least for the ones that get cut off by the shape's bounds)



Basically, I want all the circles to be complete circles but some are cut off.





This topic has been closed for replies.

2 replies

Scott Falkner
Community Expert
Community Expert
February 23, 2024

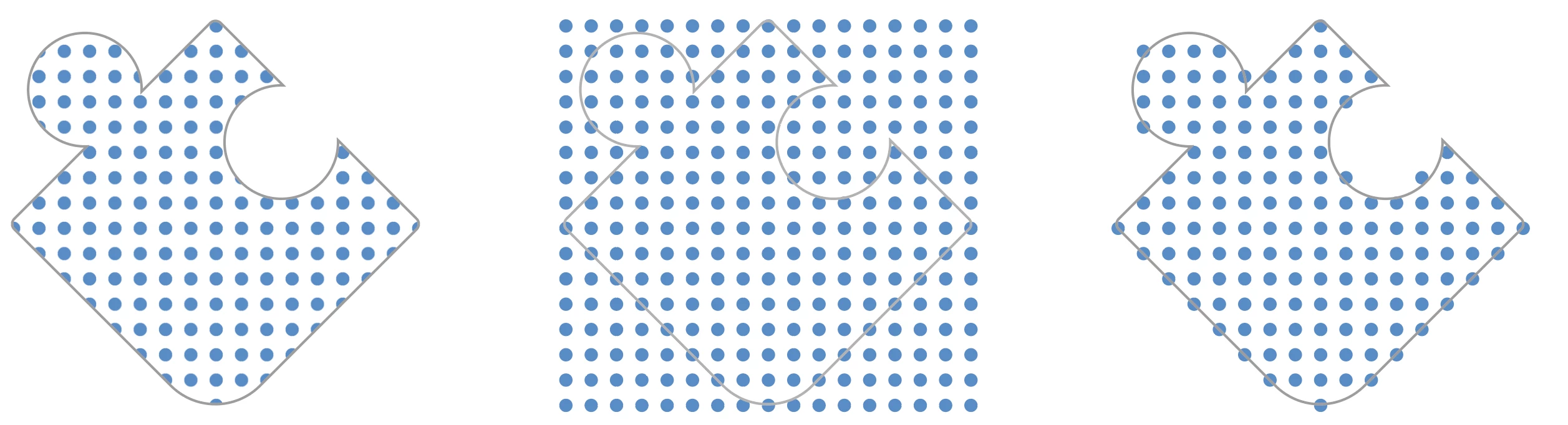

  1. Expand the object (Object > Expand). This will convert the pattern into objects that are masked by the path.
  2. Release hte maske (Object > Clipping Mask > Release). This will removethe mask You can now see and delete each pattern tile.
  3. Ungroup (Object > Ungroup). I usually do this a couple of times.
  4. Use the Lasso tool () to select the tiles you don’t want then delete them. You might have to press the Delete key twice, since some of the objects in the pattern tile won’t be completely selected. Deleting only once will leave parts of the objects behind.

Participating Frequently
February 23, 2024

Thank you!

Monika Gause
Community Expert
Community Expert
February 23, 2024
Participating Frequently
February 23, 2024

Woof! Maybe this can be a future feature. I'll try this method for now! Thank you!

Monika Gause
Community Expert
Community Expert
February 23, 2024

If you happen to have Astute Graphics plugins, then you could also use their Halftone effect (part of Phantasm). A lot of people have them, so just in case ...
