Isometric Spiral staircase

Forum|Forum|4 years ago
April 22, 2021
4 replies
3360 views

Hi does anyone know how to make a spiral staircase in Illustrator, in isometric view/perspective - many thanks

Draw and design

This topic has been closed for replies.

Correct answer Doug A Roberts

Hi thanks for your efforts everyone (especially Doug). I am familiar shapebuilder but it does not work for me the way described. I'll try again with fresh eyes at the weekend. thank you all

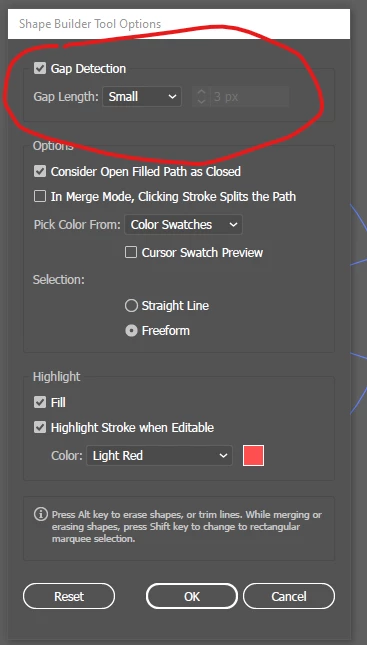

Apologies, I see the issue with polar grid. Shape builder can be finnicky with circles. Try turning on Gap detection (double-click the tool for options):

Jacob Bugge

Community Expert

Kaye, everyone,

Curiously, all the staircases shown so far, except for the latest one by Doug, are Kerr (or Ker) style.

Kurt Gold

Community Expert

Doug, hopefully the guys who are supposed to walk down your (first) corkscrew stairs won't have one over the eight.

Doug A Roberts

Community Expert

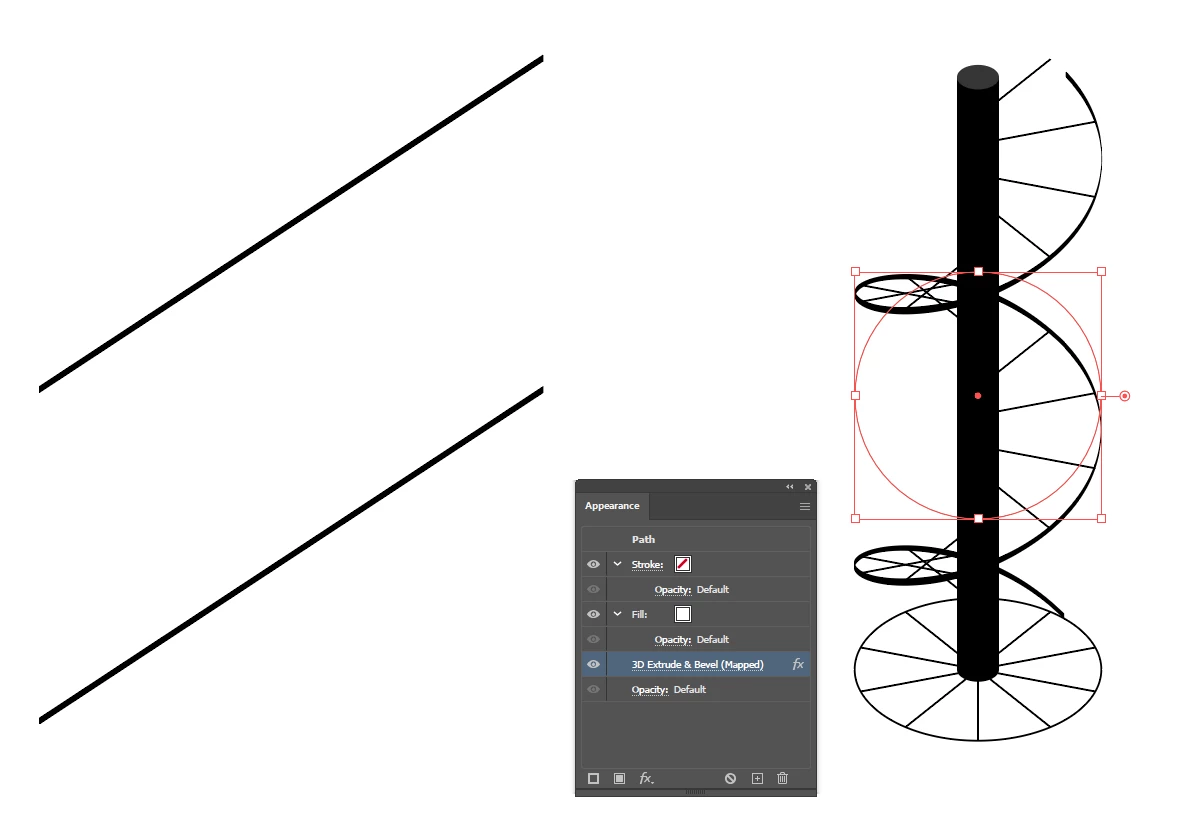

This would be my first thought:

Create a circle and use 3D > Extrude & Bevel, Isometric Top, and whatever extrude depth you need.

Create two lines (actually shapes with vertical ends, so they coincide when it repeats). Make them into a symbol.

Map the symbol to the 3D effect. Stretch to fit.

Create a circle with spokes at the base of your 3D effect.

Alt-drag each spoke up in turn so that it coincides with the spiral.

Carry on drawing from there.

K

kpabbleAuthor

Inspiring

Hi many thanks for your reply...got a little lost from step 4...

1 Create a circle and use 3D > Extrude & Bevel, Isometric Top, and whatever extrude depth you need (done this)

2 Create two lines (actually shapes with vertical ends, so they coincide when it repeats) (think I did this right)

3 Make them into a symbol (did this)

4 Map the symbol to the 3D effect. Stretch to fit. (got lost from here)

5 Create a circle with spokes at the base of your 3D effect.

6 Alt-drag each spoke up in turn so that it coincides with the spiral.

7 Carry on drawing from there.

Doug A Roberts

Community Expert

Hi many thanks for this getting a little closer to what I am after. Can you explain how did you make the shape on the left? Have tried using polar grid but it does not look anything like yours

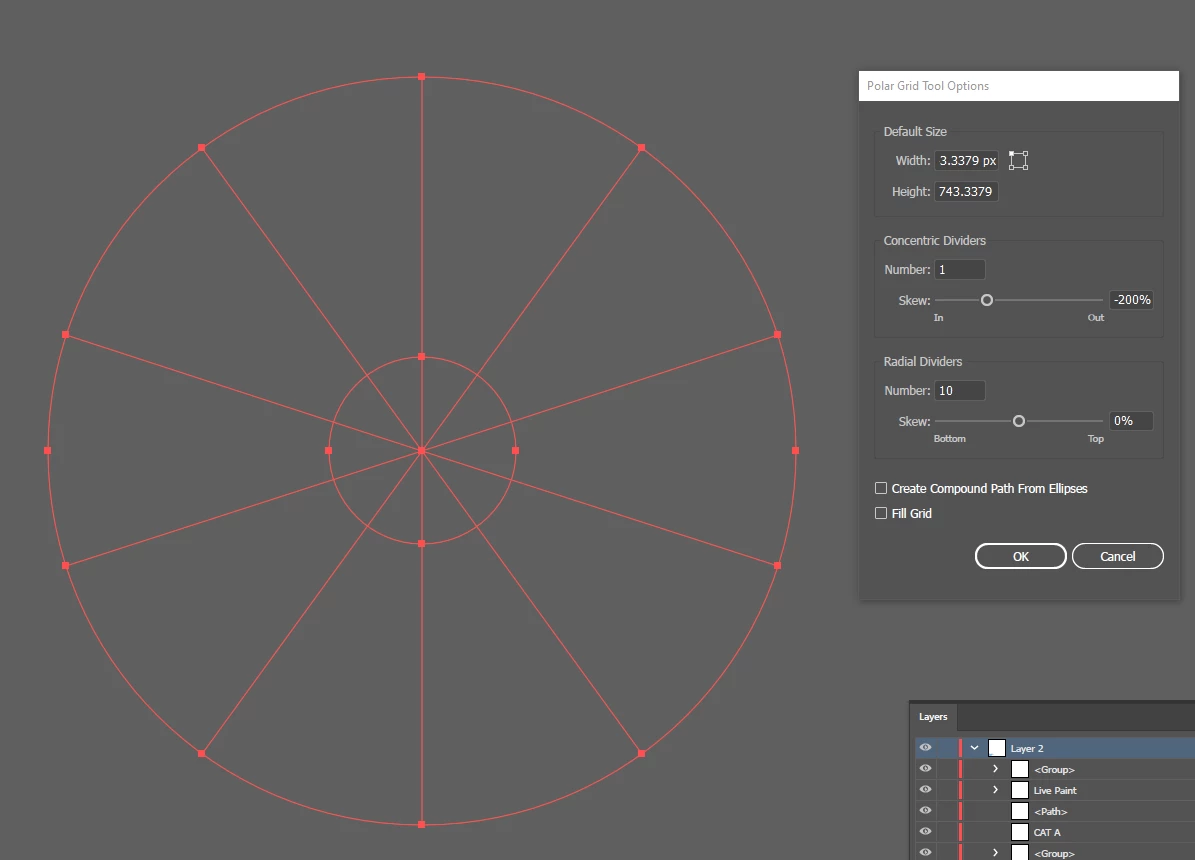

I rotated a line around the centre point, but you could get something similar with the polar grid:
