Issue / Question with dynamic symbols

  • September 17, 2020
  • 4 replies
  • 722 views

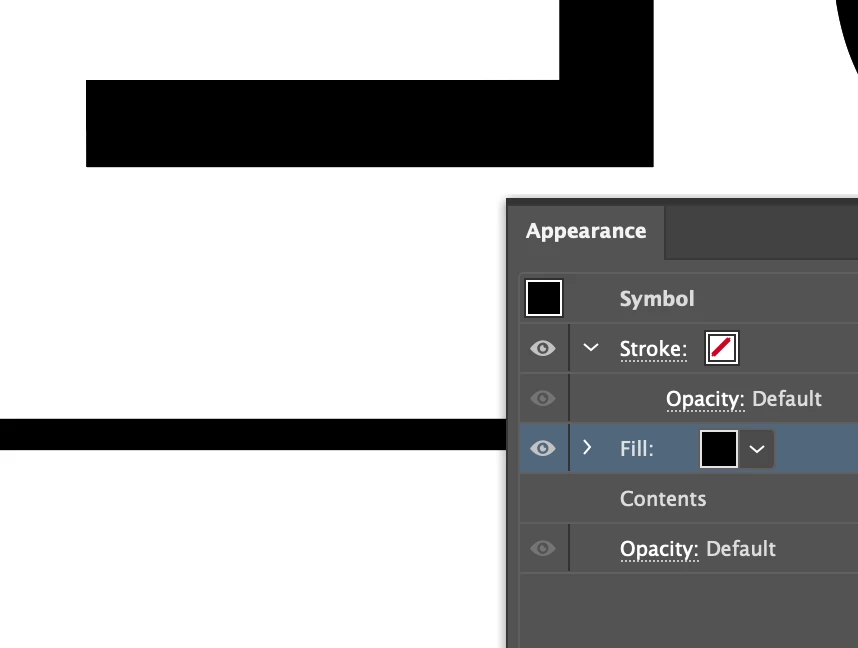

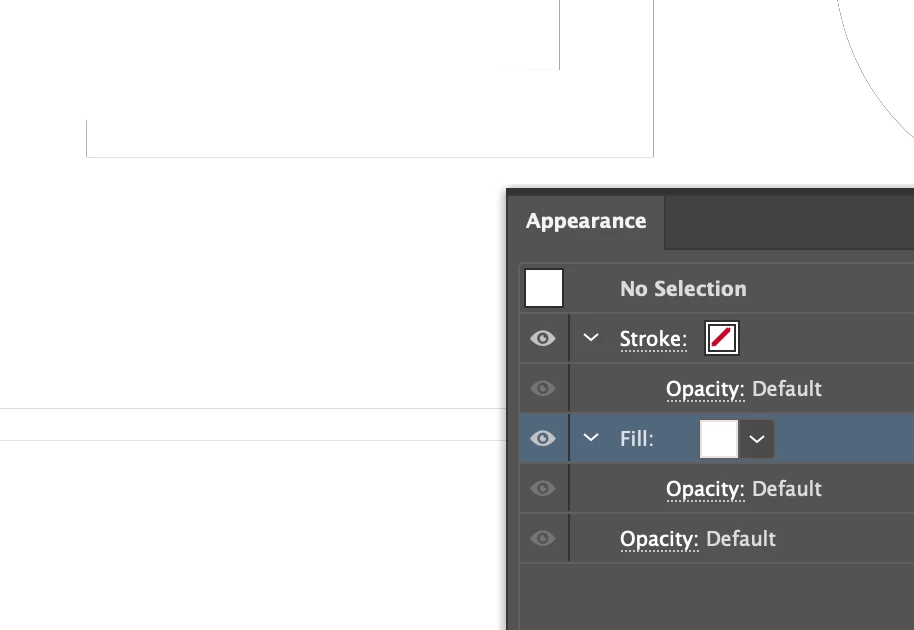

I have created a dynamic symbol, and placed it in a file. The original is black. I am changing this instance of the symbol to white, and there is an outline showing up. I'm not sure how to remove this, as I don't have any outlines on the original, and the stroke is marked as nill. There are no other layers visible currently.

This topic has been closed for replies.
Correct answer tromboniator

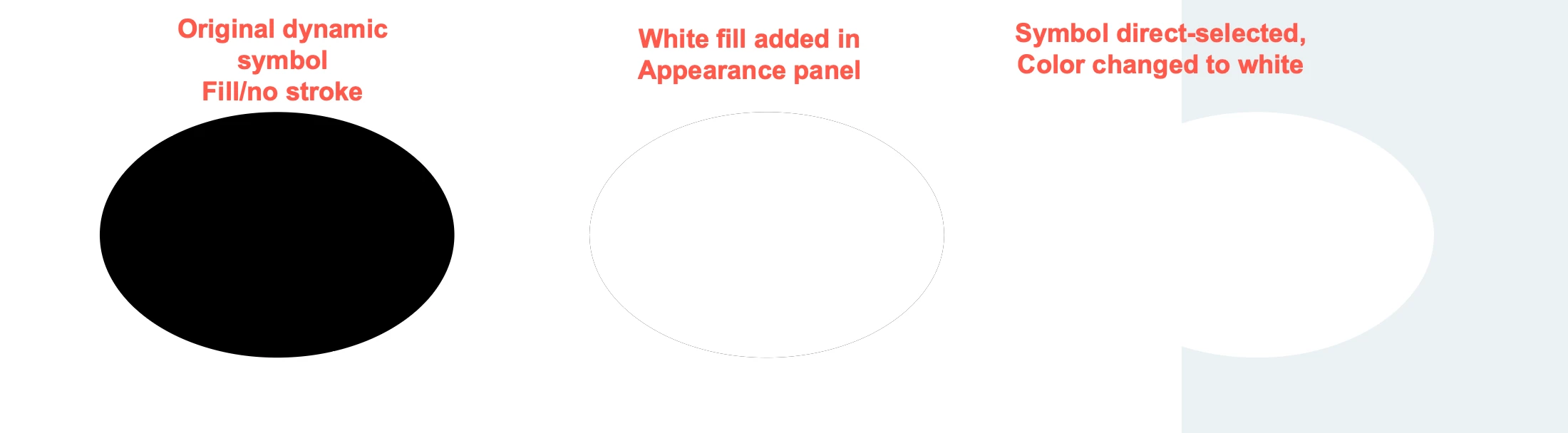

There's no need for a stroke to explain it, it's just a matter of not correctly understanding and using the dynamism of the symbol.



4 replies

tromboniator
Community Expert
tromboniatorCommunity ExpertCorrect answer
Community Expert
September 18, 2020

There's no need for a stroke to explain it, it's just a matter of not correctly understanding and using the dynamism of the symbol.



    Monika Gause
    Community Expert
    Monika GauseCommunity Expert
    Community Expert
    September 18, 2020

    Please upload the file. Are you sure the original symbol doesn't have a stroke?

    tromboniator
    Community Expert
    tromboniatorCommunity Expert
    Community Expert
    September 18, 2020

    From your original post my understanding is that you want to change the color of the instance of the symbol that's on the artboard, and not the symbol itself. In that case, just select the symbol (or the path within the Symbol that you want to change) with the Direct Selection Tool (white arrow) and then select the color you want. This process changes the color, so there's no outline; adding a fill through the Appearance panel piles another color on, and generates the screen appearance of the outline.



    Peter



    Edit: Just so we're clear, the ability to easily change the color this way is the "dynamic" part of Dynamic Symbol.

      tromboniator
      Community Expert
      tromboniatorCommunity Expert
      Community Expert
      September 17, 2020

      I am unable to replicate this behavior. Could you please go through the process, exactly, by which you created the symbol and how you changed its color? I'm not suggesting you did anything weird, I'd just like to make sure we're talking about the same thing.



      Thanks,
      Peter

      sammyknapp
      sammyknappAuthor
      Participant
      September 17, 2020

      Well, I had a design made previously and I went to the Symbol Panel, and clicked on the New Symbol button. I changed the Export Type to Graphic, and left the Symbol Type as Dynamic Symbol. I did not check the box to Enable Guides for 9-Slice Scaling. The design I had is originally black. Once I place an instance of the symbol, I click on it, open the Appearance Panel, and click the Add New Fill button. From there, I chose the color white. I tried other lighter colors, and the outline remains.

      sammyknapp
      sammyknappAuthor
      Participant
      September 17, 2020

      If I make the original design white before I turn it into a symbol, there is no outline. But there must be something I'm doing wrong or some issue; I can't imagine it's supposed to be like that.
