Join multiple paths at once

Question

Hello People, im new here.

I have an aray of lets say Hexagons, not filled, with a stroke of 0.8mm. All closed paths.

Now the stroke is aligned to the center of the path, but i want hem, alignd to the inside.

For 1 item its just Crt-J (join) and i can alter the alignment. But with a lot of these hexagons it's quite a hassle to individualy join them.

Is there a way (scrip maybe) to join them in one go.

The have to remain individual items.

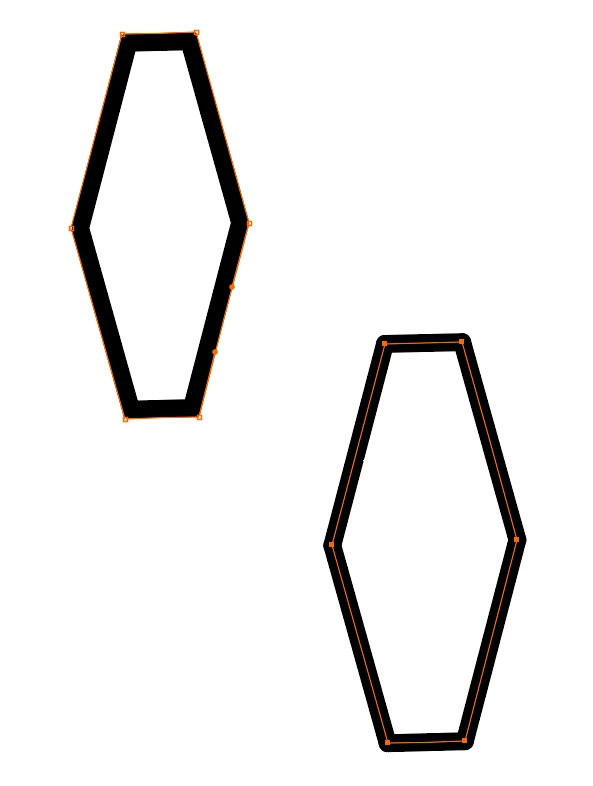

Below an example, left is what 1 need, right is wat i have (i hope i did not upload it trice, something lagged)

Monika Gause · Accepted Answer

You could try the Join reasonable script:

https://shanfan.github.io/Illustrator-Scripts-Archive/

But also: select them all

Object > Live paint > Make

Triple click with the live paint tool in one of them

select with the selection tool

set all the strokes to none.

Expand the live paint group.

Ungroup

Apply fill and strok as desired.

m1b · Answer

Hi @b l m bd40819900, what exactly are you joining? I didn't think Join ctrl-J could join closed paths. After you have tried Monica's suggestions, if you still need help, please post a demo file showing before you have joined, and then after how you want it joined? That might help. (You must attach the demo file as a .pdf with Illustrator editability because the forum software doesn't accept .ai files.)

- Mark
