Library Graphics aren't accurate. When placing a logo 'as a copy' anchor points are out of place

Forum|Forum|6 years ago
March 2, 2020
6 replies
855 views

(specs at bottom)

The vector graphics I add to one particular CC Library change over time... in case it's not obvious the 'B' should not have the jagged connections between the baseline and the right hand vertical.

Various copies and versions of this brand logo come out wrong / irregular when placed as a copy. These vectors did display correctly at one point. When I notice it's gone wrong I go back to the orriginal logo file and add it to the library again... it works for a while then eventually the same things happen. This does not occur when the same graphic is 'placed' or dragged from the library wondow to the artboard.

Thanks in advance

Illustrator 24.0.3

Running on:
MacBook Pro (16-inch, 2019)
Proccessor: 2.4 GHz 8-Core Intel Core i9
Memory: 32 GB 2667 MHz DDR4
Graphics: AMD Radeon Pro 5500M 8 GB

Intel UHD Graphics 630 1536 MB

This topic has been closed for replies.

Correct answer Ton Frederiks

Did you check the anchor points for the B at the problem area?

Is the shape closed, are there anchor points on top of each other?

Ton Frederiks

Community Expert

Can you share the file, or at least the part that is causing trouble?

It is very hard to talk about things we can't see.

Monika Gause

Community Expert

Is snap to point turned on in the target file? Maybe the setting moves the points when you place the logo.

Blissful_Moonlight5C49Author

Known Participant

On or off, it has the szame result

Ton Frederiks

Correct answer

Community Expert

Did you check the anchor points for the B at the problem area?

Is the shape closed, are there anchor points on top of each other?

Blissful_Moonlight5C49Author

Known Participant

The shape is closed but it does look like, (if displaying correctly) there would be anchor points on top of eachother on those prolem areas. Why would this cause them to move? Thanks

Ton Frederiks

Community Expert

Try to recreate that area with as few anchor points as possible and see if the problem returns.

Ton Frederiks

Community Expert

Does it also occur when double clicked in the library to open the logo?

Blissful_Moonlight5C49Author

Known Participant

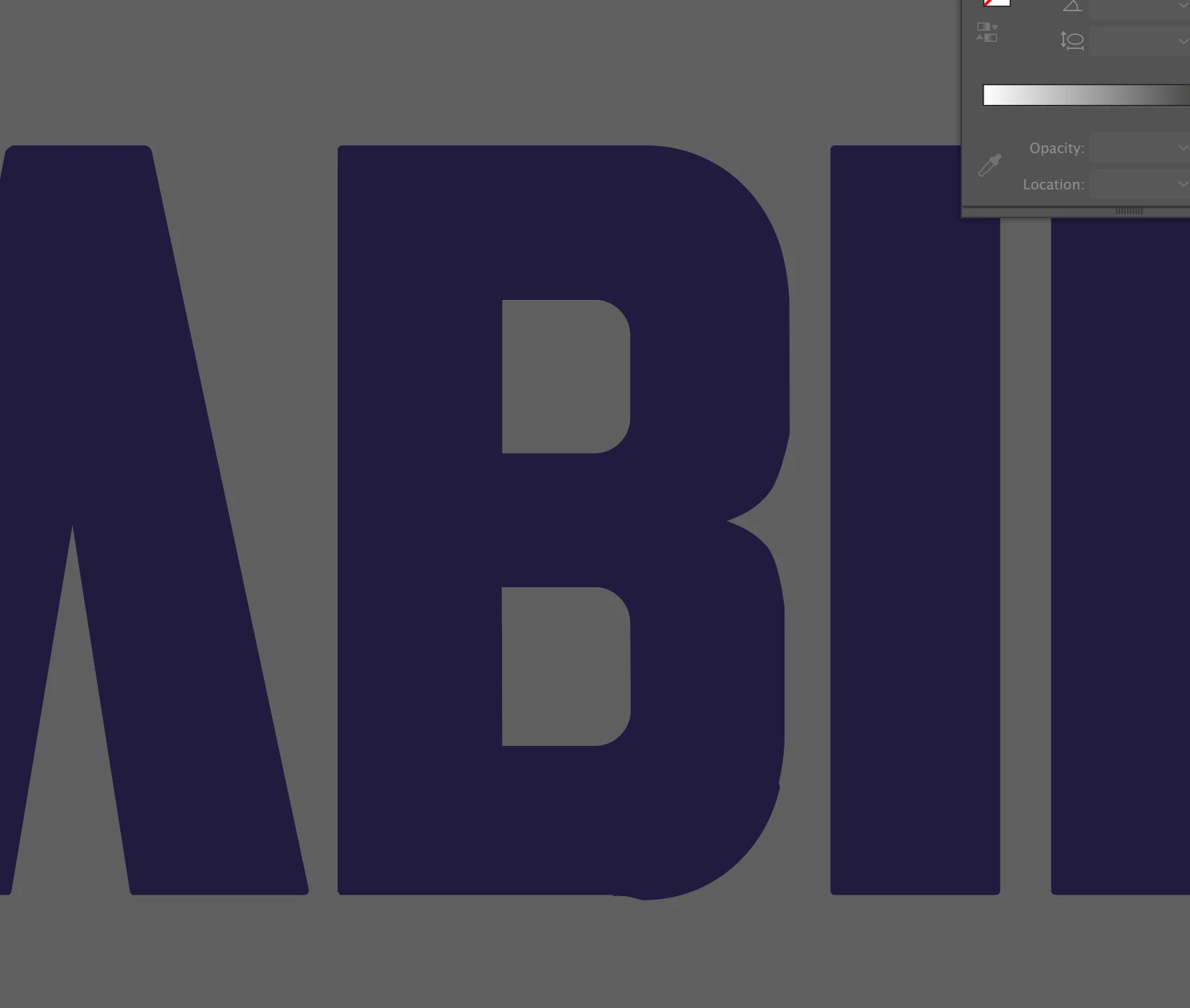

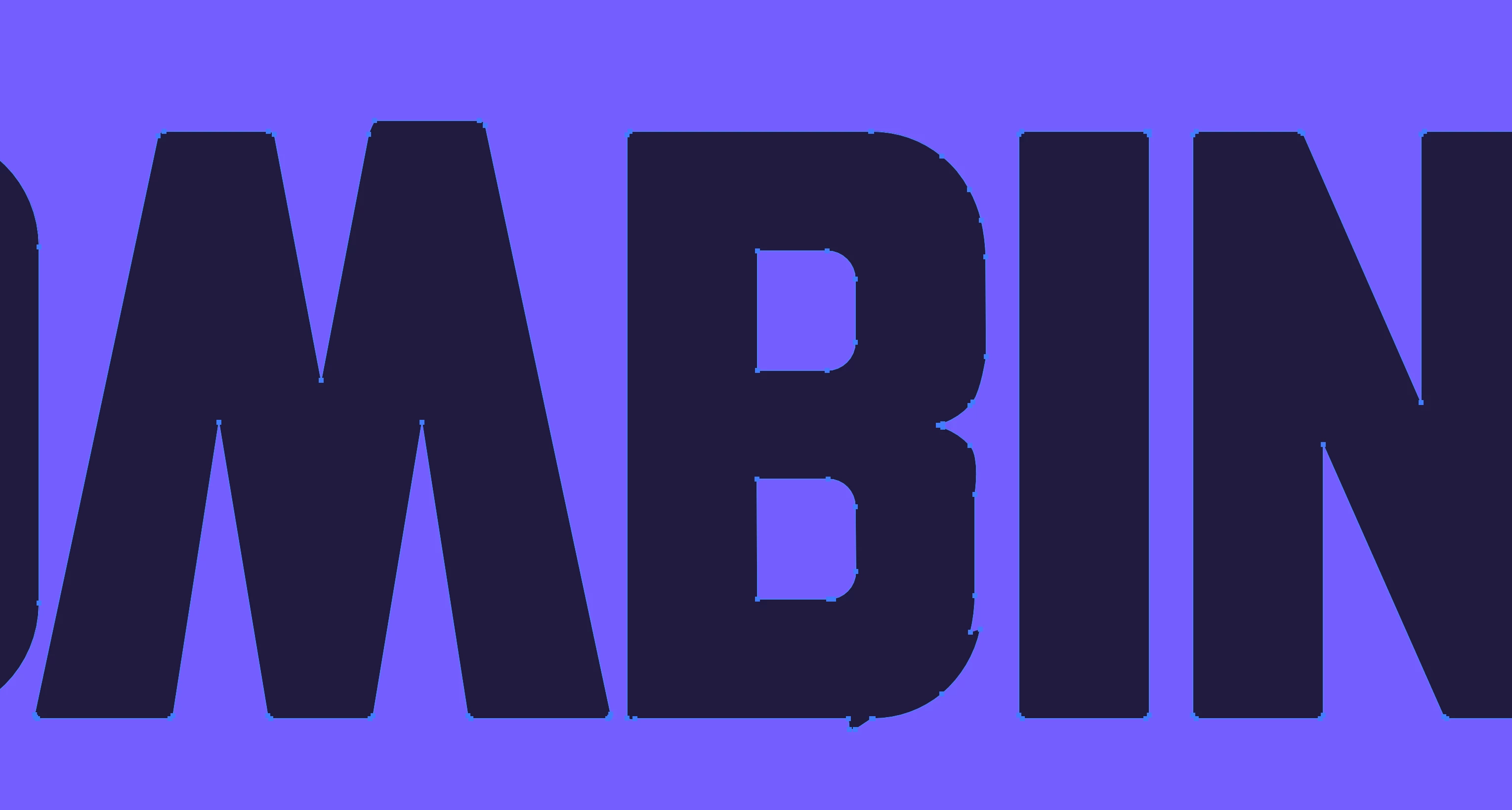

No - when I double click the logo is correct. Should have also mentioned - the nature of the inconsistency chnages sometimes, but usually in the same area. See attached images
