Looking to adjust the global brightness of a layer in Illustrator

  • March 15, 2019
  • 3 replies
  • 6887 views

I'm very new to Illustrator so please go easy on me gang.

Is there a way to adjust the over-all brightness (and/or contrast) of an entire layer in Illustrator?

My file is in CMYK colour mode.

The layers have many objects with many colours and gradients. Some layers incorporate the Blur FX as well.

I've attempted capturing all objects on the specific layer, then selected Edit / Edit Colors / Saturate.

Nothing is happening (?)

Thanks for your help!

    This topic has been closed for replies.
    Correct answer jane-e

    techtone  wrote

    I was really hoping for a single slider control (like in Photoshop) to affect the entire layer as a whole. Meaning, controlling all colors at the same time.

    Hi techtone​

    Recolor Artwork works on whatever is selected. To affect the entire layer, click the button to the right of the layer in the Layers panel to select all on the layer.

    Use the first of the two tabs in the Recolor Artwork dialog. Turn on the Link button to change all the colors and not just one. At the bottom, drag the Satuation slider to change only the saturation and not the hue or brightness.

    ~ Jane

    3 replies

    Myra Ferguson
    Community Expert
    Myra FergusonCommunity Expert
    Community Expert
    March 15, 2019

    You could place the Illustrator artwork in Photoshop as a smart object then use the color editing tools you're familiar with there. As a smart object, the Illustrator artwork can be double-clicked to let you open it in Illustrator if you want to make any adjustments. Also, effects applied to a smart object are non-destructive.

    Mike_Gondek10189183
    Community Expert
    Mike_Gondek10189183Community Expert
    Community Expert
    March 15, 2019

    Illustrator has a blur effect, but using alot of this can slow down your computer as Illustrator is designed to be  a vector program not bitmapped. Please post a screenshot of your artwork as what you are working on I suspect is better done in Photoshop.

    In Illustrator you can assign attributes (eg: brightness, blur) to an entire layer. Anything added to that layer will get that attribute. To do this requires following the steps exactly.

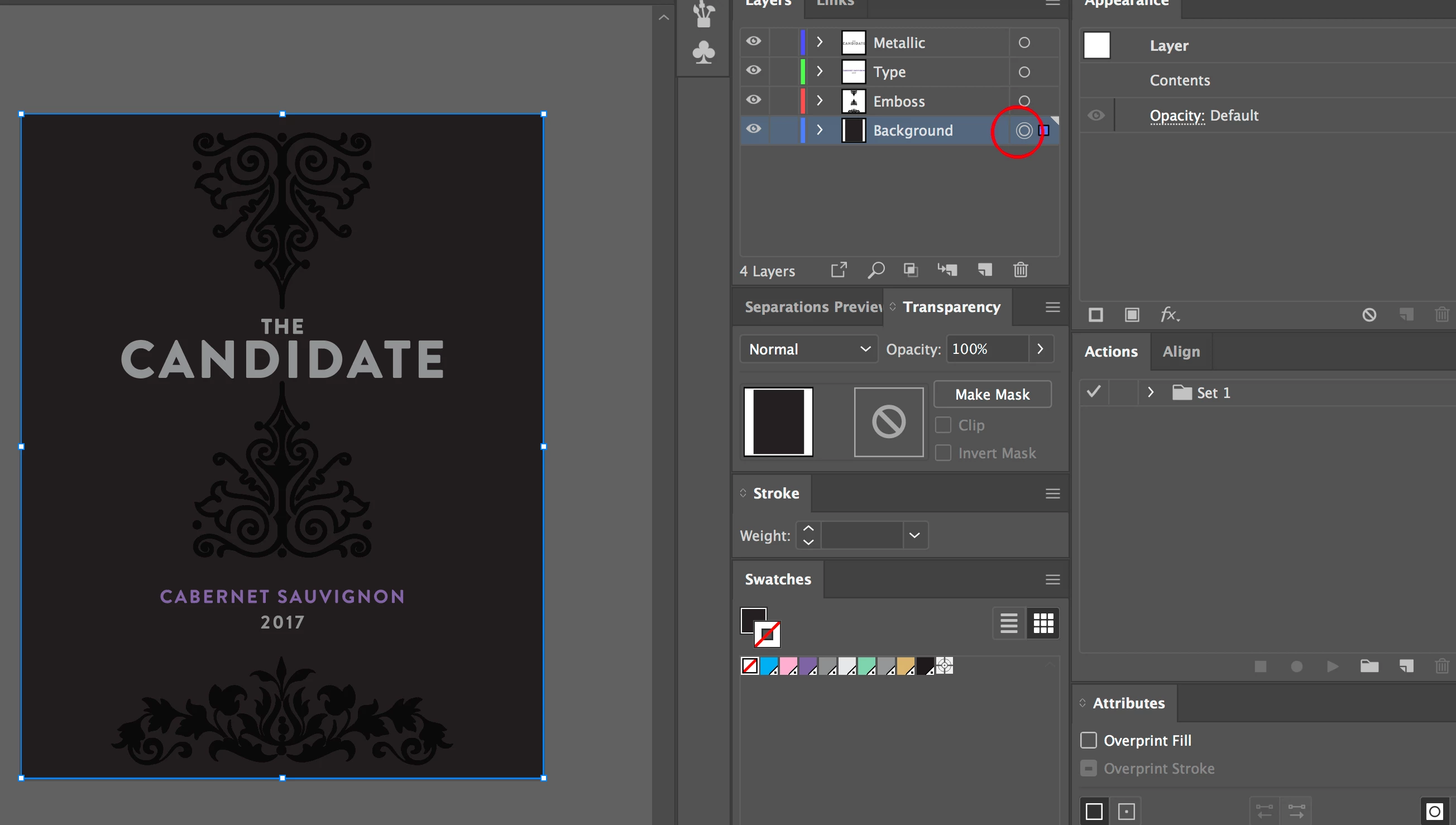

    1. Click on the radio button to the right, you will the see a full sized colored square indicating the entire layer is slected. A smaller square indicates something on the layer is selected.

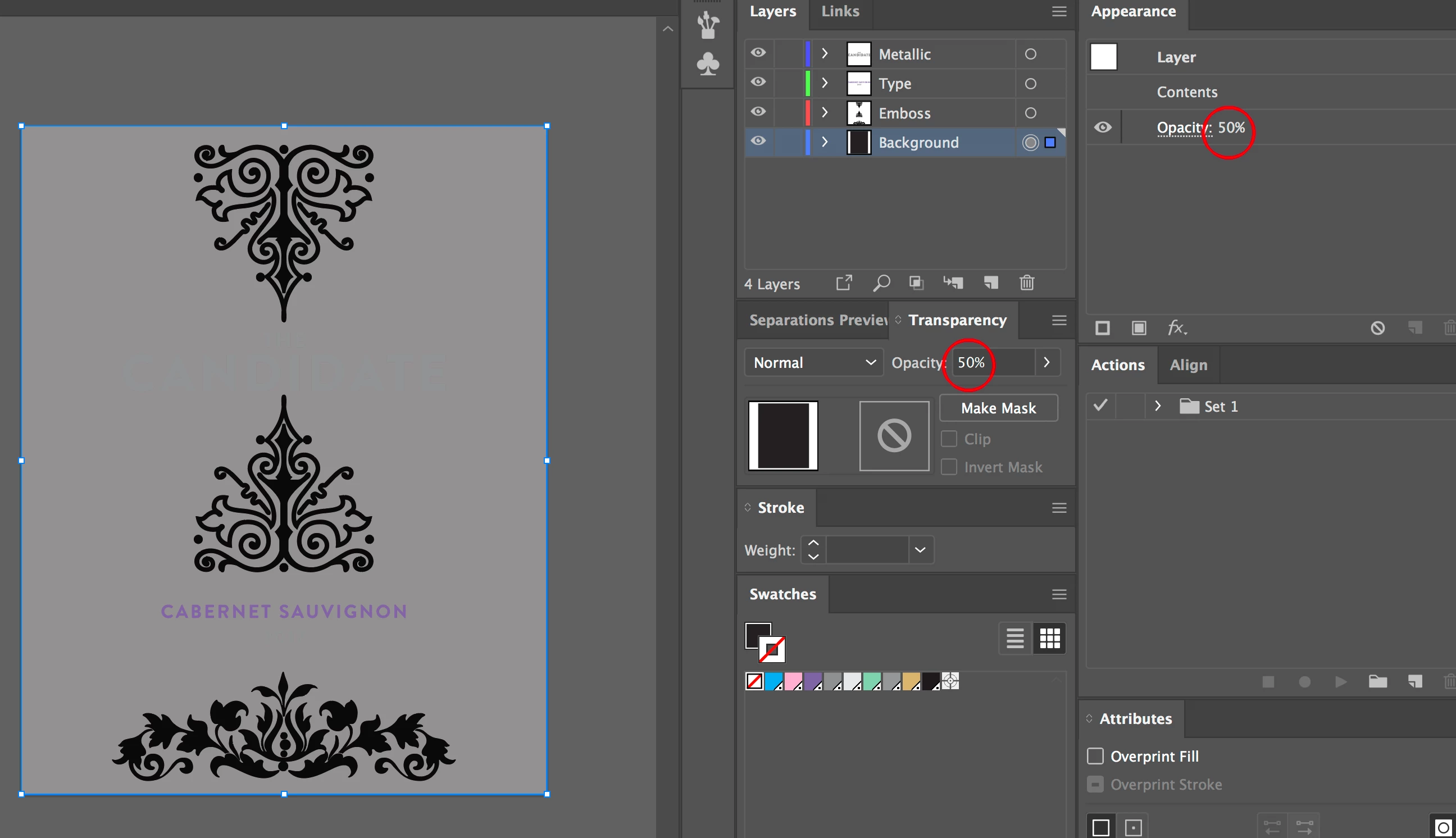

    2. Go to transparency and change the value from 100% to a smaller value (eg: 50%)

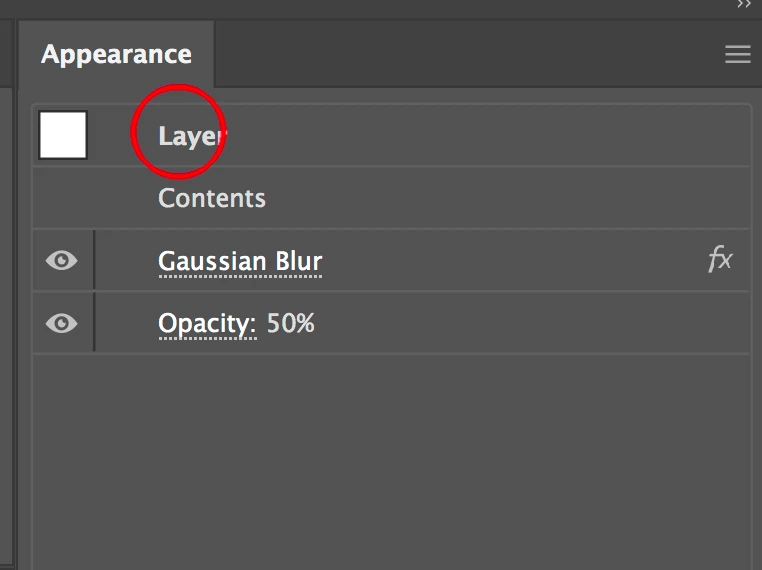

    Should you need to modify or remove this, use  the appearance palette.

    You can also add blur effects to an entire layer.

    Appearance palette is usually for advanced users, so understand is very important as to what it says at the very top as you can set attributes that show in appearance at various levels (group, path, type & layer).

    Monika Gause
    Community Expert
    Monika GauseCommunity Expert
    Community Expert
    March 15, 2019

    So you selected all the objects (they don't need to be on the same layer)?

    And then you opened Recolor artwork, increased saturation and nothing happened?

    Can you please show the artwork? Before and after as well as the dialog box?

    TechTone
    TechToneAuthor
    Participant
    March 15, 2019

    Hi Monika,

    Thanks for directing me to 'Recolor artwork'.

    Yes, this feature is having an effect on my project however it appears to be a 'color specific' adjustment.

    Let me find some tutorials online regarding 'Recolor artwork' so I can learn a little more about it...and not waste your time.

    I was really hoping for a single slider control (like in Photoshop) to affect the entire layer as a whole. Meaning, controlling all colors at the same time.

    Perhaps there is an 'Effect' that gives a faded/washed out appearance to a layer that I'm unaware of...?

    Thanks again,

    B
    Blyskawica
    Participating Frequently
    March 15, 2019

    You can do this (single slider control) by attaching a Brightness/Contrast Live Effect to the layer using the third-party plug-in Phantasm.
