Question

Outer anchor point added using the Direct Select tool

  • July 12, 2022
  • 6 replies
  • 372 views

Hello!



I had a new thing happen to me today, and I'd like to be able to explain it to my students. The problem is, I'm not exactly sure how to do that because I'm not sure of the purpose:

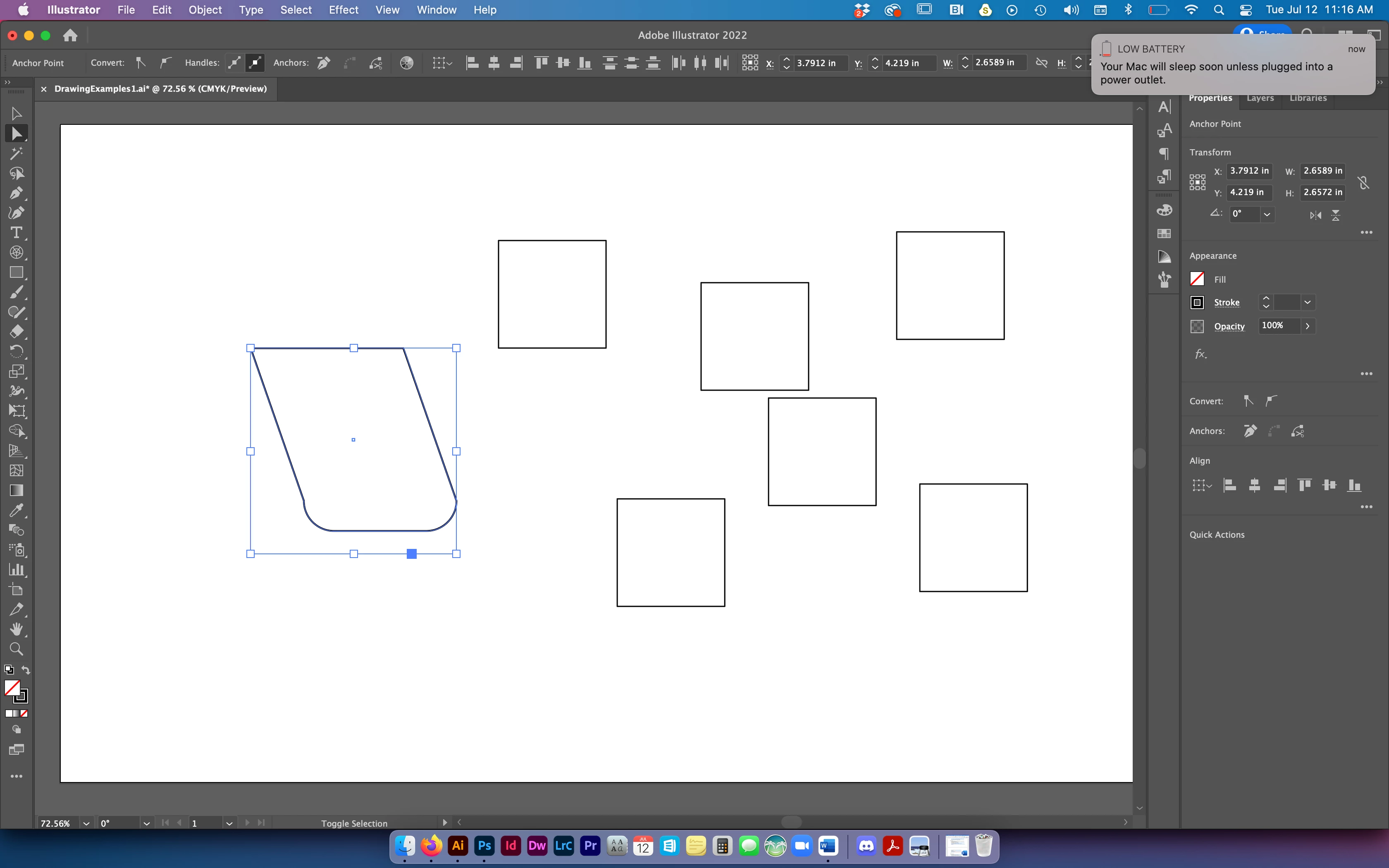

I wanted to demonstrate using the Direct Select tool to adjust only the bottom two corner widgets of a square. When I Shift + select the anchor points, everything acts as you'd expect. BUT, when I click+drag to select the bottom two anchor points and connecting line segments, a new anchor point appears outside of my square (you can see it as a tiny x on the bottom line or the bounding box in my first screenshot, then as a filled blue anchor point on the bounding box in the second screenshot).



When I hover over it, my Direct Selection cursor changes to a Select Anchor Point icon, and when I click on the new anchor point, it drags the selected objects around as if I was just clicking on the line segment to manipulate the shape.



I would like to be able to explain:

  A. Why the addition of the exterior anchor point?

  B. Does it have a special name?

  C. In what circumstances would I want/need to use it?



I greatly appreciate your help!

This topic has been closed for replies.

6 replies

Monika Gause
Community Expert
Community Expert
July 13, 2022

Are you sure that this anchor point was not there before you selected the bottom of the rectangle?

Legend
July 13, 2022

Can you show the selection with the layers panel open?

Ares Hovhannesyan
Community Expert
Community Expert
July 13, 2022

May be reset preferences can solve this problem, Did you try that?

Kurt Gold
Community Expert
Community Expert
July 13, 2022

Can you share this Illustrator file for inspection?



Kevin Stohlmeyer
Community Expert
Community Expert
July 13, 2022

Is there an Effect applied to round the corners?

Ton Frederiks
Community Expert
Community Expert
July 13, 2022

I cannot replicate that. Is it document specific? Did you restart your computer? Preferences reset?
