OUTLINE/STROKE Issue inside font/letters

  • May 11, 2021
  • 1 reply
  • 3851 views

Hello Community,



I have a very strange problem which appeared out of a sudden last week.

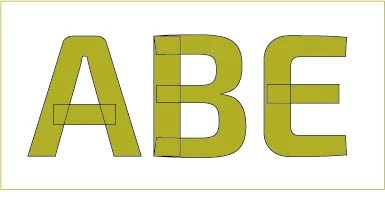

As you can see on the attached image:
When I use a certain font and put an outline - then the outline shows every single bar of the letter.

It is a google font "EXO 2.0" which we use as the main font for our company for years now. We never had a problem with this font.



Here's what I found out during my own troubleshooting:

I tested it on another computer with the same ILLUSTRATOR version: Problem does not appear

I deinstalled Illustrator and reinstalled the latest version: Problem still appears

I downgraded to an older version of ILLUSTRATOR: Problem still appears

I deinstalled and reinstalled the font: Problem still apears
Problem does not appear in INDESIGN

Problem does not appear in PHOTOSHOP

The problem appeared suddenly especially with this font - other fonts work like expected

I already contacted the designer of the font - no answer so far.



I tried a google search for a similar problem - I tried german and english but couldn't find any similar situation except one where someone asked the same question but didn't get an answer that helped.



Since it i our main font we use for our company - this problem gives me quite a headache - any help is highliy appreciated!

This topic has been closed for replies.
Correct answer Doug A Roberts

I just checked and yes it appears on all VAR Fonts.

This is weird - since it does not appear on my other computer though - using the same font.


The family only added a variable version last year -- are you sure it's the same font on both machines?

1 reply

Doug A Roberts
Community Expert
Community Expert
May 11, 2021

"In March 2020, the family has been updated to a variable font family."



This occurs with all variable fonts in Illustrator, since they are constructed from discrete shapes that get wider/narrower.

helmut-meeth
Participating Frequently
May 11, 2021

Thanks for the info - but this problem occured since last week. And does only happen on my computer at work.

I never had this problem before last week.

Hope there is a solution.

Doug A Roberts
Community Expert
Community Expert
May 11, 2021

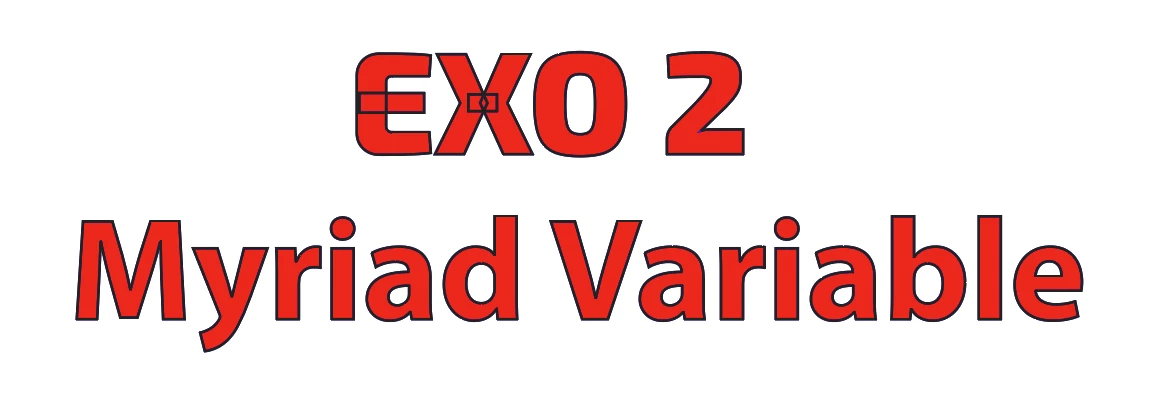

I should say it happens with some variable fonts -- I'm not sure why some and not others:

Some discussion of workarounds here:



https://community.adobe.com/t5/illustrator/removing-overlaps-in-lettering-from-variable-fonts/td-p/11645636



For instance, add Outline Stroke and Effects > Pathfinder > Add to the stroke in the appearance panel:
