Packaging Layout

  • July 25, 2019
  • 3 replies
  • 1011 views

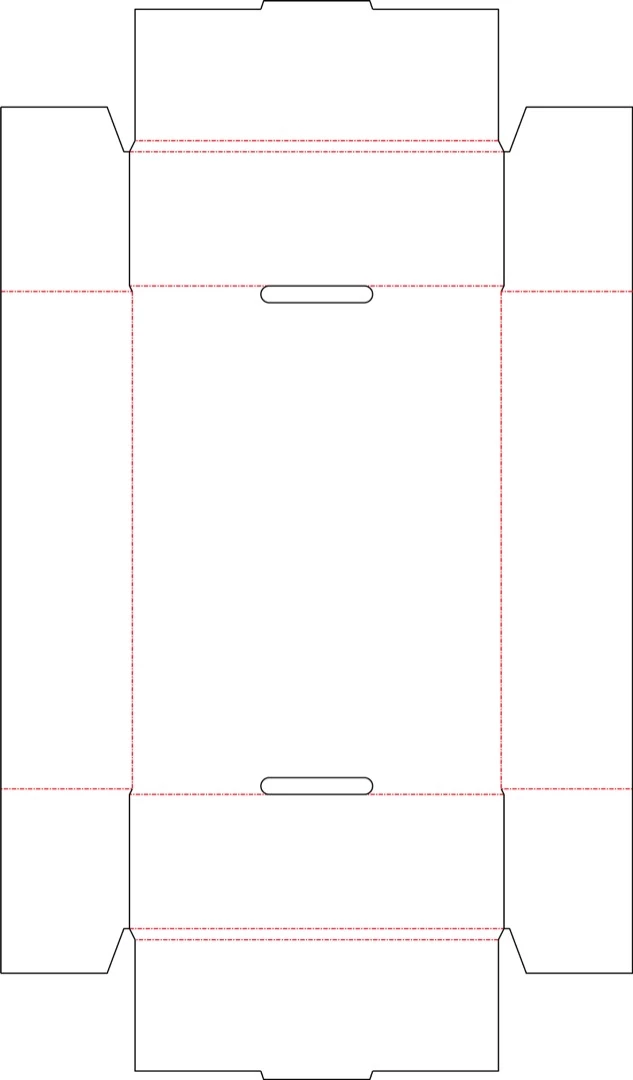

I was asked to use this 12pk can tray layout to design. However, I can't seem to figure out where is the front, sides, etc.

Can someone please help?

This topic has been closed for replies.
Correct answer Jon Fritz

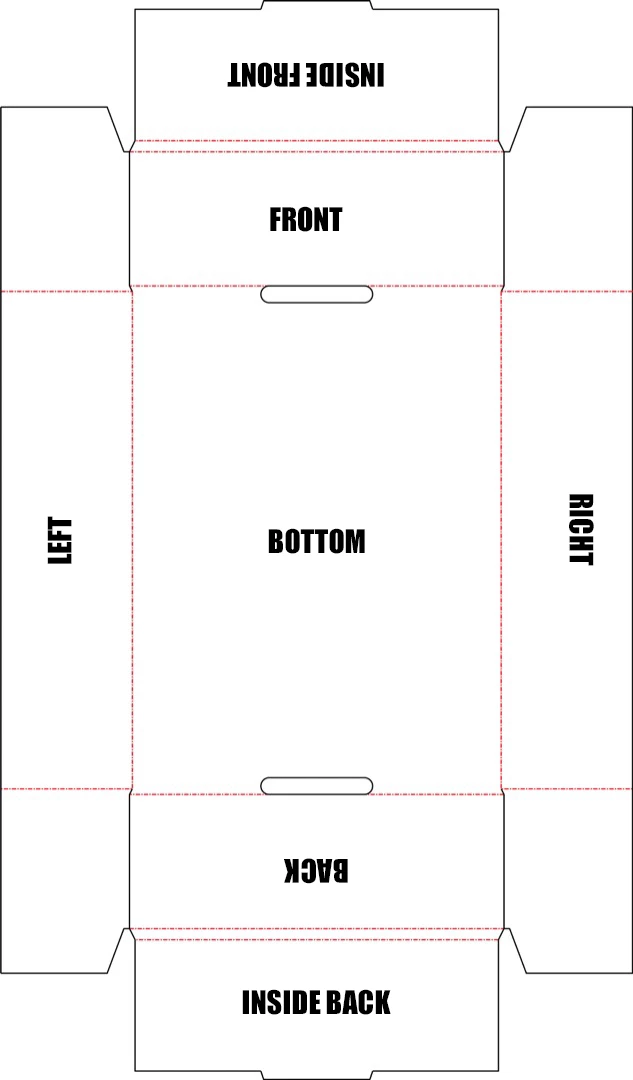

I work with these pretty frequently, typically this is how they're printed (type orientation is the art orientation)...

...aside from bleeds, the 4 small rectangular corner shapes are not printed on, since they're hidden by the wrapping ends of the packaging.

3 replies

meganchi
meganchi
Legend
July 25, 2019

Do as mentioned above by @Jon Fritz II or @Ton Frederiks.

The red dotted lines are the crease areas of the package. Once you cut out the outer black line edges, you can use a ruler to run a paper clip or burnishing tool along the ruler edge to add the crease and then fold by hand.

The black lines are the cut areas. You'll need to use an exacto knife to cut on the left and right of the front and back panels that are noted in the post above.

Alternately, you can ask whoever provided the die line to you to send a formed mockup sample or provide a 3D image of the final formed container as a visual reference.

    Jon Fritz
    Community Expert
    Jon FritzCommunity ExpertCorrect answer
    Community Expert
    July 25, 2019

    I work with these pretty frequently, typically this is how they're printed (type orientation is the art orientation)...

    ...aside from bleeds, the 4 small rectangular corner shapes are not printed on, since they're hidden by the wrapping ends of the packaging.

      thebodiahtrist
      thebodiahtristAuthor
      Participant
      July 26, 2019

      Very helpful Jon thank you so much!

      PackagingBee
      PackagingBee
      Participant
      October 21, 2019

      Hello,



      if you want to learn this box intital packaging and its dimensions then I recommend you to do some online research and as per my research I found a blog who can help you to sort out your future issues about box packing ideas and so on, btw I'm sharing with you here a blog which will help you about templates of box packaging. https://packagingbee.com/templates/



      Thanks me later. 🙂

      Ton Frederiks
      Community Expert
      Ton FrederiksCommunity Expert
      Community Expert
      July 25, 2019

      Print it cut it and fold it along the dotted lines to get an idea of the box.
