PageItem.applyEffect(LiveEffectXML)

I've been admiring this thread for a while. I appologise if the connection has already been made (particuarly to ten_a) - I've not seen it though; I was googling for more info on the topic, and came this post in Japanese where 投稿者: ten_a shares some of their own live effect code:

https://translate.google.com/translate?sl=auto&tl=en&u=https://ten-artai.com/2015/12/318/

#Drop Shadow
<LiveEffect name="Adobe Drop Shadow"><Dict data="R horz 7 I blnd 1 R opac 0.75 R dark 100 B pair 1 I csrc 0 R vert 7 R blur 5 B usePSLBlur 1 I Adobe Effect Expand Before Version 16 " /></LiveEffect>



#Fuzzy Mask
<LiveEffect name="Adobe Fuzzy Mask"><Dict data="R Radius 5 " /></LiveEffect>



#Inner Grow
<LiveEffect index="0″ major="1″ minor="0″ name="Adobe Inner Glow"><Dict data="I gtyp 1 I blnd 2 R opac 0.75 R blur 5 “><Entry name="gclr" valueType="F"><Fill color="1 0 0 0 0″/></Entry></Dict></LiveEffect>



#Outer Grow
<LiveEffect name="Adobe Outer Glow"><Dict data="I Adobe Effect Expand Before Version 16 I blnd 2 R opac 0.75 R blur 5 B usePSLBlur 1 " /></LiveEffect>



#Scribble Fill
<LiveEffect name="Adobe Scribble Fill"><Dict data="R Spacing 5 R EdgeOverlap 0 R Scribbliness 0.05 R StrokeWidth 3 R Angle 30 R EdgeOverlapVariation 5 R SpacingVariation 0.5 R ScribbleVariation 0.01 " /></LiveEffect>



#Round Corners
<LiveEffect name="Adobe Round Corners"><Dict data="R radius 10 “/></LiveEffect>



#Outline Type
<LiveEffect index="0″ isPre="1″ major="1″ minor="0″ name="Adobe Outline Type"><Dict /></LiveEffect>



#Outline Stroke
<LiveEffect index="0″ major="1″ minor="0″ name="Adobe Outline Stroke"><Dict /></LiveEffect>



#Offset Path
<LiveEffect name="Adobe Offset Path"><Dict data="R mlim 4 R ofst 10 I jntp 2 " /></LiveEffect>



#Zigzag
<LiveEffect name="Adobe Zigzag"><Dict data="R roundness 0 R absoluteness 1 R relAmount 10 R ridges 4 R amount 10.006 " /></LiveEffect>



#Free Disort
<LiveEffect name="Adobe Free Distort"><Dict data="R src3h 278 R src2h 178 R dst2v -263 R src2v -263 R src0h 178 R dst2h 178 R src3v -263 R dst3v -263 R dst0v -163 R src1h 278 R src1v -163 R src0v -163 R dst0h 178 R dst1v -163 R dst1h 278 R dst3h 278 " /></LiveEffect>



#Punck & Bloat
<LiveEffect name="Adobe Punk and Bloat"><Dict data="R d_factor 10 " /></LiveEffect>



#Twirl
<LiveEffect name="Adobe Twirl"><Dict data="R angle 30 " /></LiveEffect>



#Pathfinder
<LiveEffect name="Adobe Pathfinder"><Dict data="R TrapTintTolerance 0.05 B ExtractUnpainted 1 B TrapConvertCustom 0 R TrapAspect 1 B ConvertCustom 1 R TrapMaxTint 1 R Mix 0.5 B RemovePoints 0 I Command 0 R TrapThickness 0.25 R TrapTint 0.4 B TrapReverse 0 R Precision 10 “><Entry name="DisplayString" value="" valueType="S" /></Dict><LiveEffect>



#3D Effect
<LiveEffect name="Adobe 3D Effect"><Dict data="B showHiddenSurfaces 0 R cameraPerspective 0 I rotationPresetKey 9 B paramsDictionaryInitialized 1 I 3Dversion 2 B extrudeCap 1 R mat_12 -0.278 R mat_13 0 R mat_20 -0.456 R mat_21 0.248 R mat_22 0.855 R mat_23 0 R mat_30 0 R mat_31 0 R mat_32 0 R mat_33 1 R rotX -18 R rotY -26 R rotZ 8 R revolveAngle 360 B revolveCap 1 R revolveOffset 0 I revolveAxisMode 0 I surfaceStyle 3 R surfaceAmbient 50 R surfaceMatte 40 R surfaceGloss 10 R blendSteps 25 B invisibleGeo 0 I shadeMode 3 B preserveSpots 0 I numLights 1 B shadeMaps 0 I numArtMaps 0 R mat_11 0.961 R mat_10 0.002 R mat_03 0 R mat_02 0.438 R mat_01 0.125 R mat_00 0.89 I effectStyle 0 R bevelHeight 4 B bevelExtentIn 1 R extrudeDepth 50 “><Entry name="shadeColor" valueType="F"><Fill color="1 0 1 1 0″/></Entry><Entry name="light0″ valueType="D"><Dict data="R lightDirX 0.39 R lightDirY 0.33 R lightDirZ -0.85 R lightPosX 0 R lightPosY 0 R lightPosZ -1 R lightIntensity 1 " /></Entry><Entry name="DisplayString" value="3D " valueType="S"/></Dict></LiveEffect>

I've tested most of them, and they were grand!

This is a great thread, I was following moluapple's method through an uncompressed AI file when I noticed that these Live Effects look like siblings to what I optimistically hope might be other accessible things. In my file, the Stroke Offset effect shows up mixed in with Stroke and Fill effects:

 /Part ,
/BasicFilter :
(Stroke Style Filter) 0 0 /Filter ,
1 /Visible ,
2 /FillOrStroke ,
/Dictionary : /NotRecorded ,
/StrokeStyle : 0 R
0.011535820551217 0.457404434680939 0.82201874256134 0 0.96078431372549 0.607843137254902 0.270588235294118 XA
0 1 0 0 0 Xy
0 J 0 j 2 w 1 M []0 d
0 XR
1 0 Xd
/Def ;
 (StrokeStyle) ,
; /Dict ;
 /Part ,
/CompoundFilter :
(Chain Style Filter) 0 0 /Filter ,
1 /Visible ,
/BasicFilter :
(Adobe Stroke Offset) 1 0 /Filter ,
1 /Visible ,
(Illustrator.exe) /PluginFileName ,
(Stroke Offset Live Effect) /Title ,
2 /FillOrStroke ,
/Dictionary : /NotRecorded ,
(Inside) /String (DisplayString) ,
/StrokeStyle : 0 R
0 0 0 0 1 1 1 XA
0 1 0 0 0 Xy
0 J 0 j 1.8 w 1 M []0 d
0 XR
1 0 Xd
/Def ;
 (StrokeStyle) ,
'B StrokeOffsetInside 1' +
; /Dict ;
 /Part ,
/BasicFilter :
(Blend Style Filter) 0 0 /Filter ,
1 /Visible ,
/Dictionary : /NotRecorded ,
/BlendStyle : 0 0.6 0 0 0 Xy
0 J 0 j 1 w 10 M []0 d
0 XR
/Def ;
 (BlendStyle) ,
; /Dict ;
 /Part ,

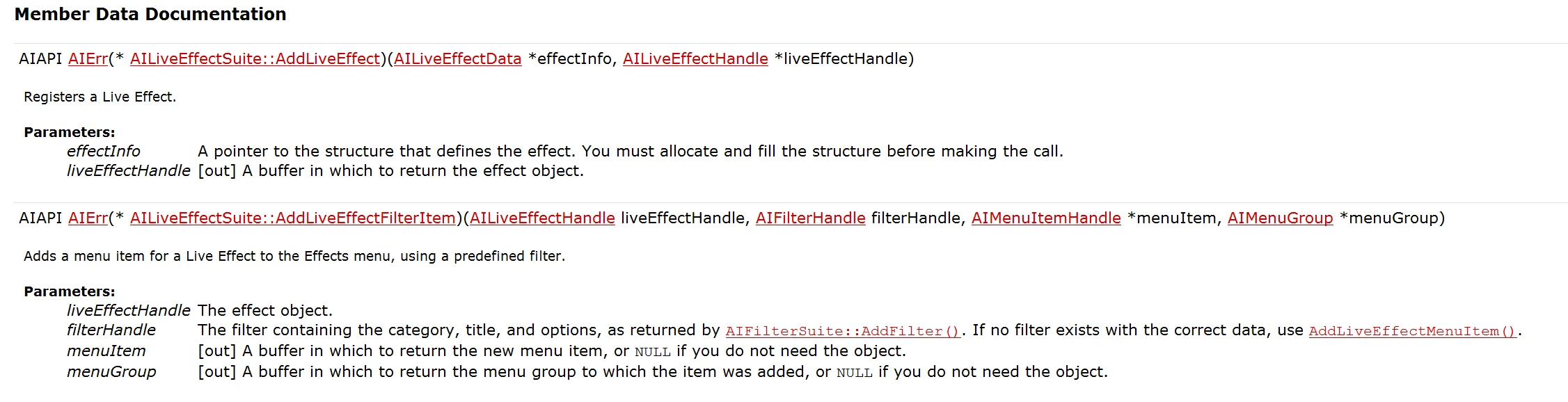

The format looks very similar too -- moluapple's RegExp picks up "Adobe Stroke Offset" which looks to be "Stroke Style Filter" in the effect above. I'm curious if strokes and fills could be accessed as LiveEffects and if what we're looking at is how the Appearance panel is handled. Would it be possible to access a stroke through this method then use PageItem.tag to keep track of multiple strokes? I don't know anything about C++, but I wondered if the way this worked was through the AILiveEffectSuite:

If so, would that mean that a script could potentially have access via app.sendScriptMessage? Or am I completely out in left field on this?

They may be SVG filter?
