Question

Pattern keeps showing lines HELP

Forum|Forum|6 months ago
November 22, 2025
3 replies
1024 views

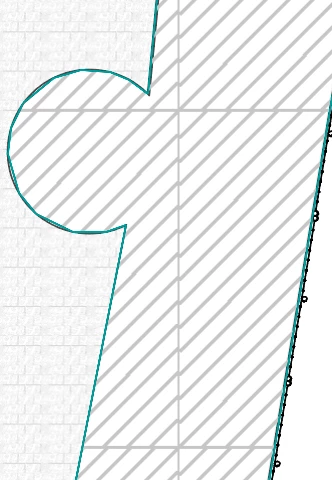

Im trying to add a pattern to an object in a drawing that I am doing, but it keeps showing tile edge and vertical lines in the pattern that I cannot get rid of? Sometimes I get it, sometimes I don't, but I can never fix it. I have undone transform patterns, I have even scaled, but it scales together with the lines. I don't understand because on pattern editor and preview, the pattern is perfectly seamless but then when I apply it to an object, it just comes with these edges. I have even ticked size to tile art and same issue.

Ton Frederiks

Community Expert

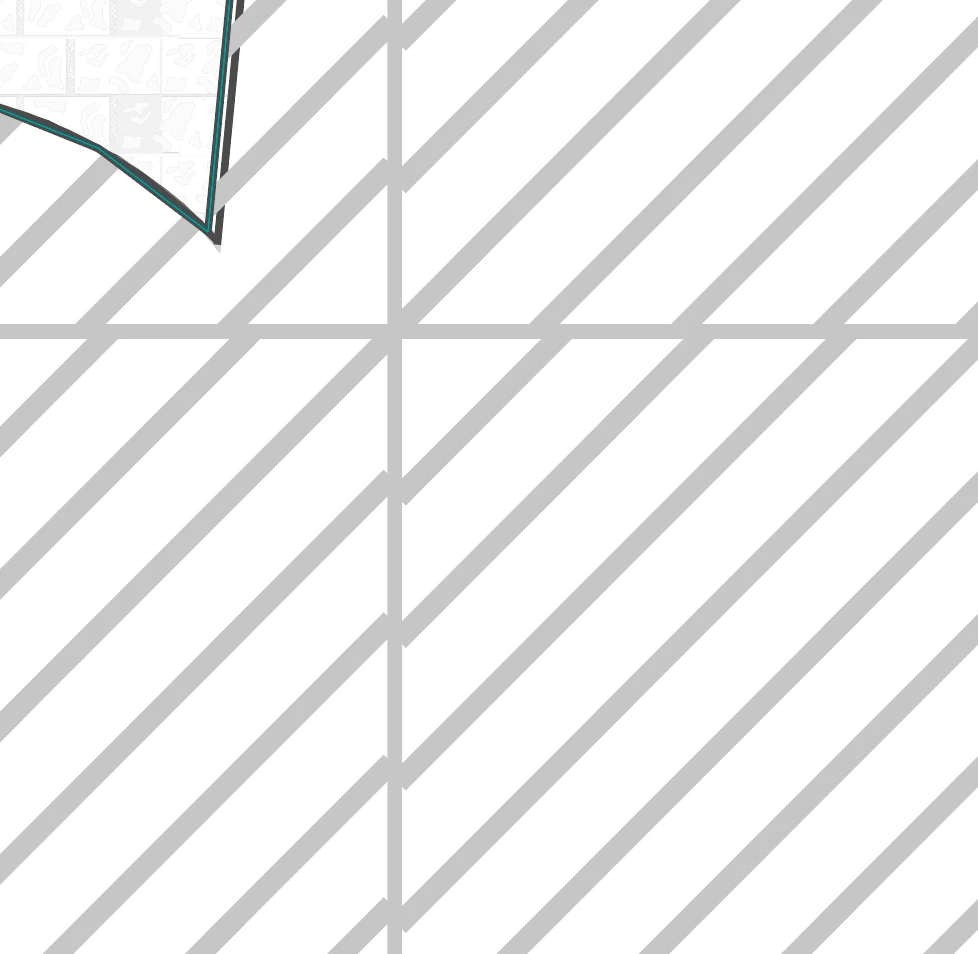

Something maybe related, as in your first screenshot, the lines are not aligned.

That is very difficult to achieve with angled lines.

The best approach is to create you line pattern horizontal or vertical, and when applied to objects, rotate only the pattern.

Also, set your units to Pixels or Points and check if your pattern tile size does not contain fractional pixels.

B

balanced_Mist8483Author

This is what I am going to try. I will create horizontal lines when rotate them to see if it works.

Ton Frederiks

Community Expert

See this file by previous Illustrator engineer Teri Pettit: Constructing Diagonal Pattern Fills (AI 9)

https://tpettit.verio.com/adobe/diagonal_patterns_9.ai

Monika Gause

Community Expert

Looks like there is a rectangle in your pattern that has a stroke applied to it.

B

balanced_Mist8483Author

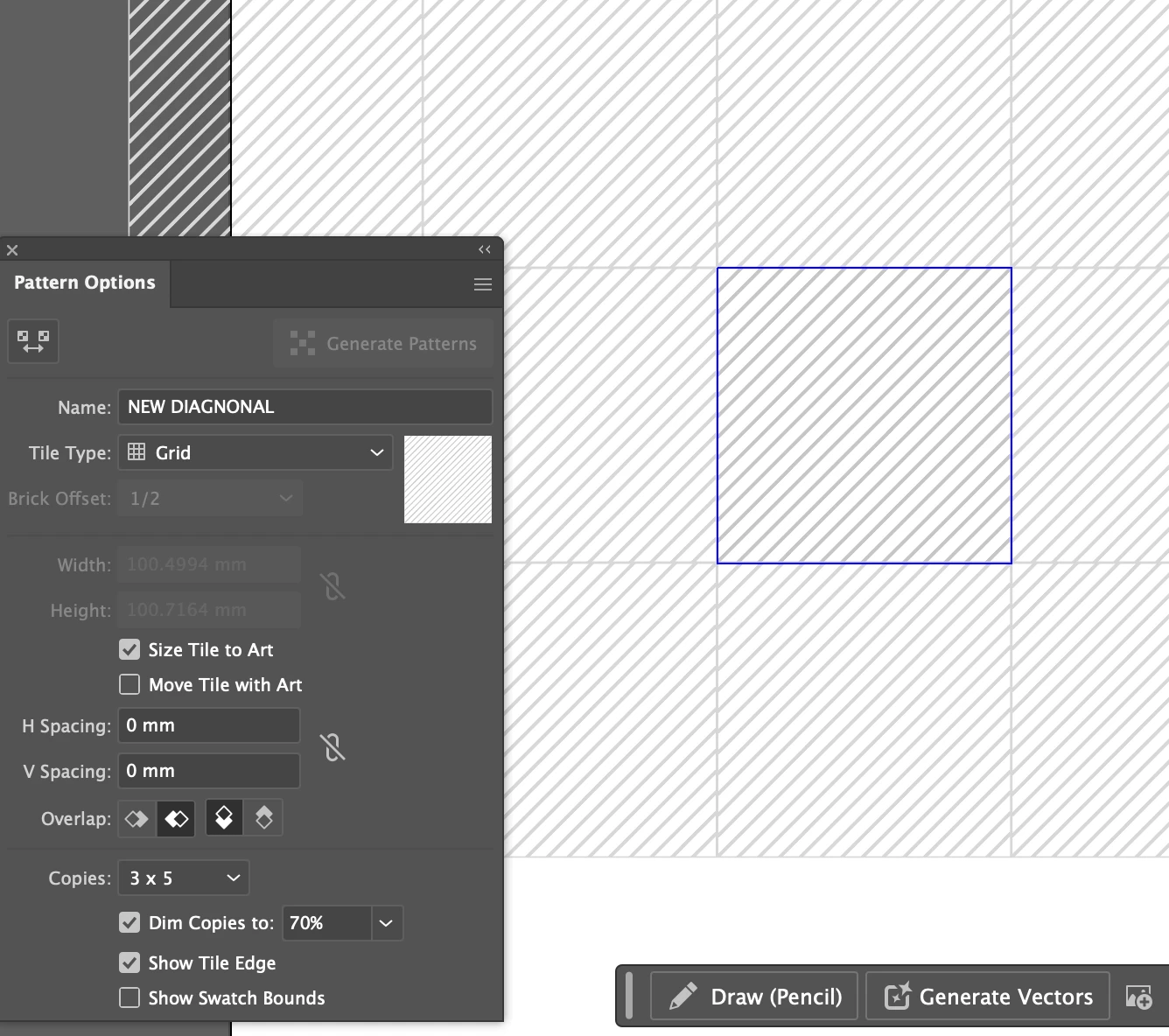

In order to create it, I made diagonal lines, offset them, then rectangular box, sent it to back, clipping mask, then I made the pattern. But there wasn't a rectangle in the pattern, it was just used to clip the lines into a pattern.
