personal symbols AREN'T VISIBLE ON 3D CLASSIC

Forum|Forum|3 years ago
November 29, 2022
3 replies
1143 views

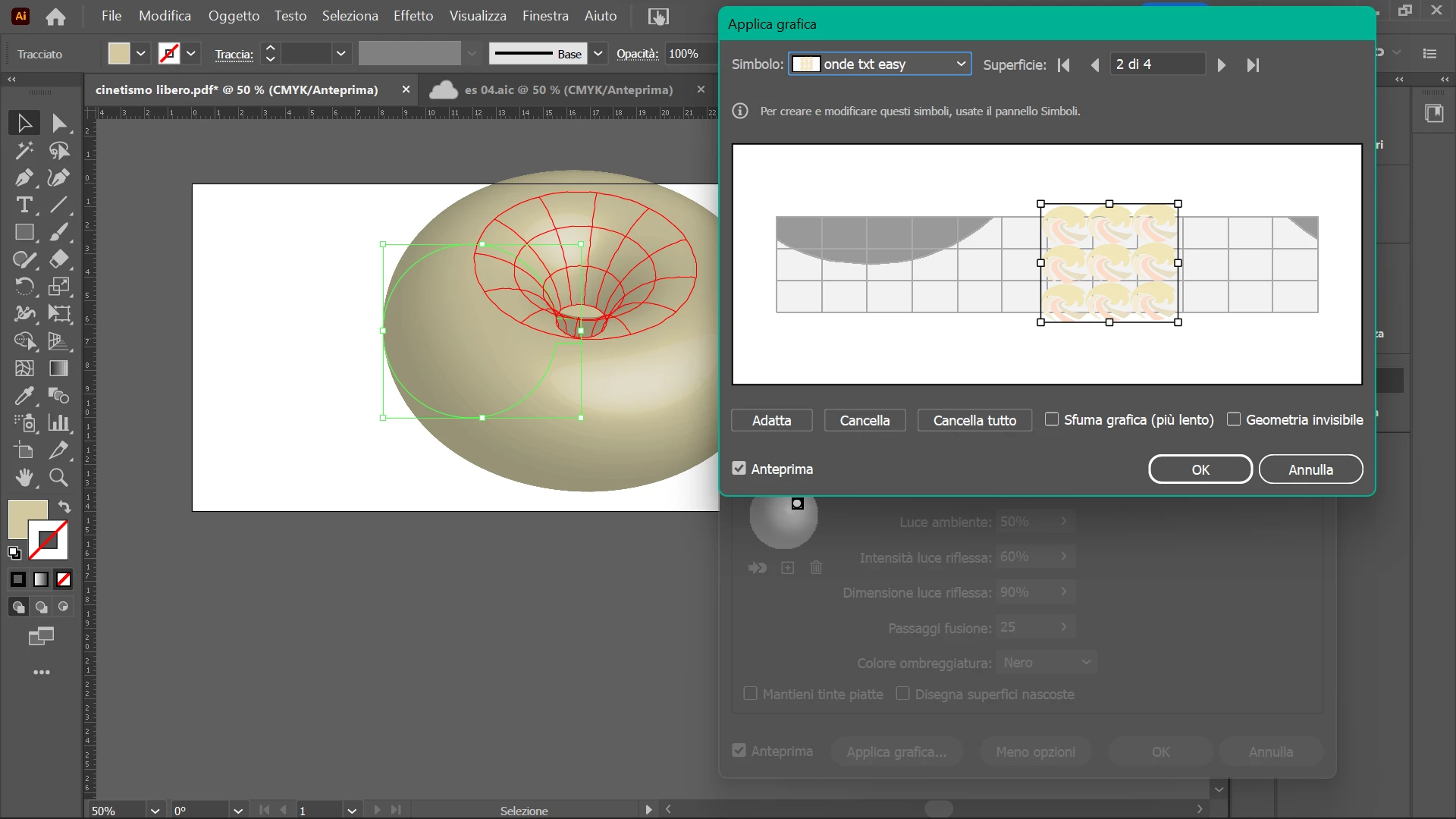

In 3D classic, symbols i created before arent't visible on the shape! The other preset symbols are!

Thanks for your help

This topic has been closed for replies.

Correct answer Monika Gause

cinetismo_libero.pdf

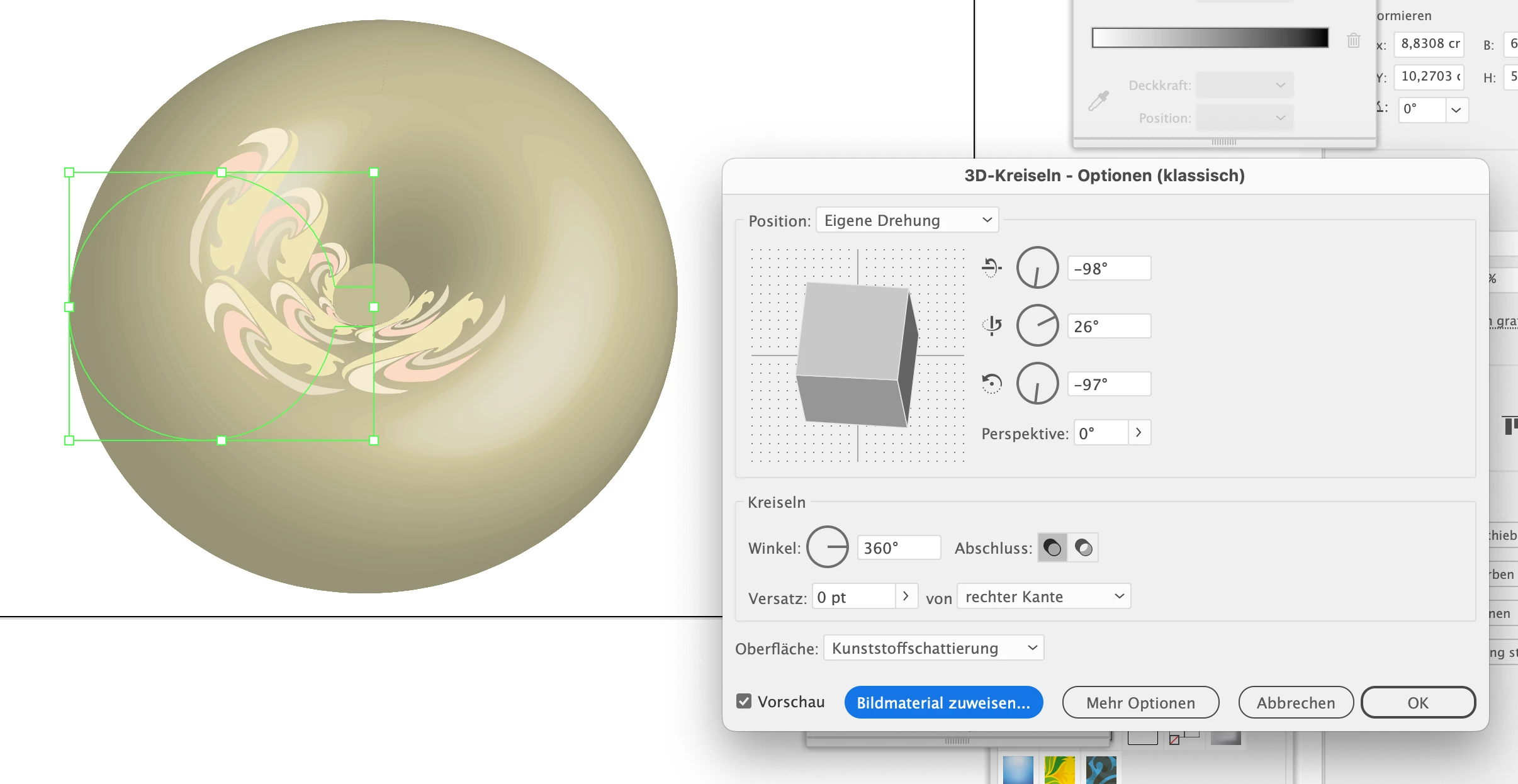

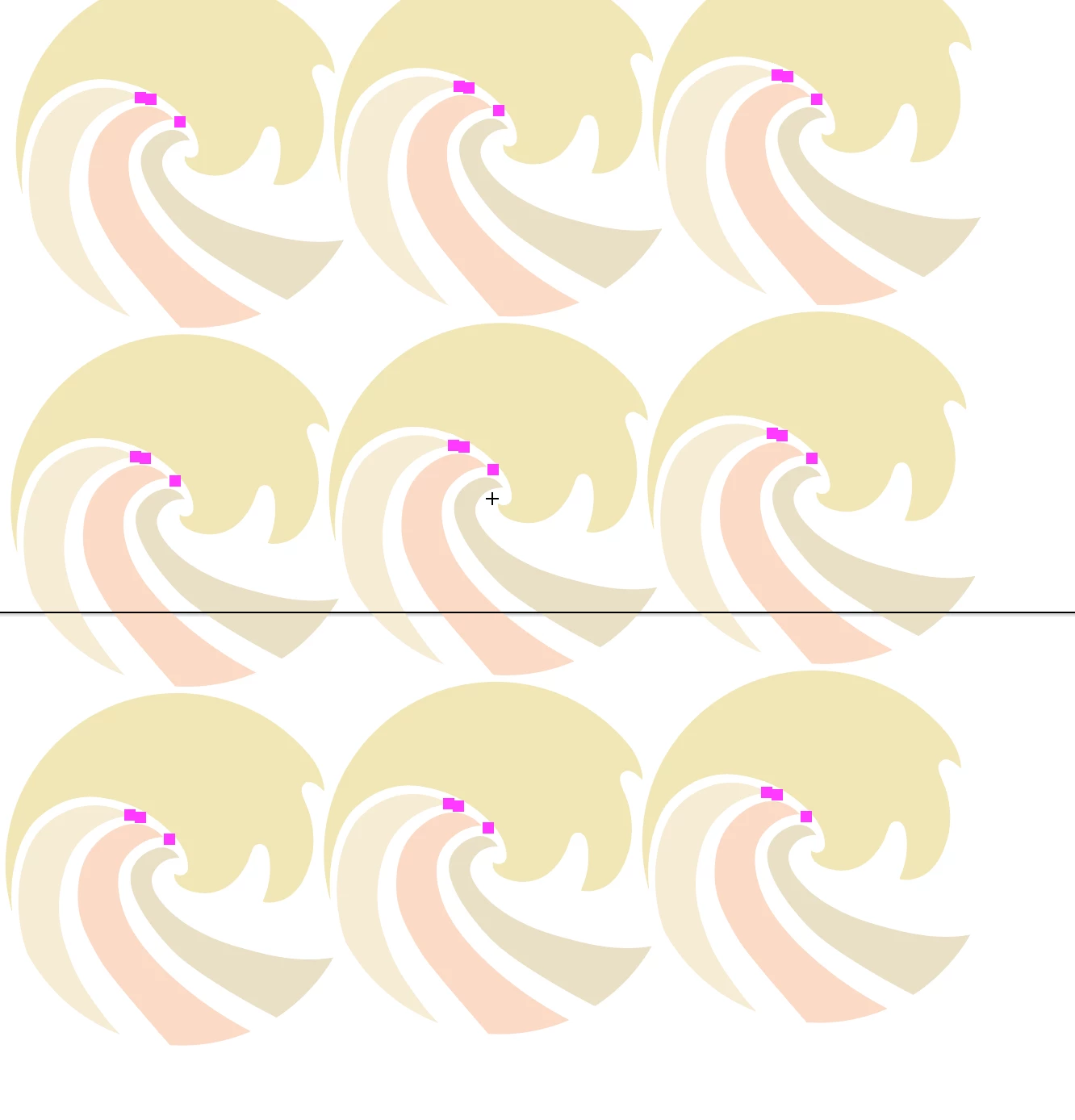

Open the symbol for editing and then Select > Object > Stray points.

Delete.

Then try again. Should work now.

Community Expert

Community Expert

Please upload the file.

You might also want to search for stray points in your symbol.

Giovanni CelaniAuthor

Participating Frequently

many thanks

Giovanni CelaniAuthor

Participating Frequently

cinetismo_libero.pdf

cinetismo_libero.pdf

Community Expert

Community Expert

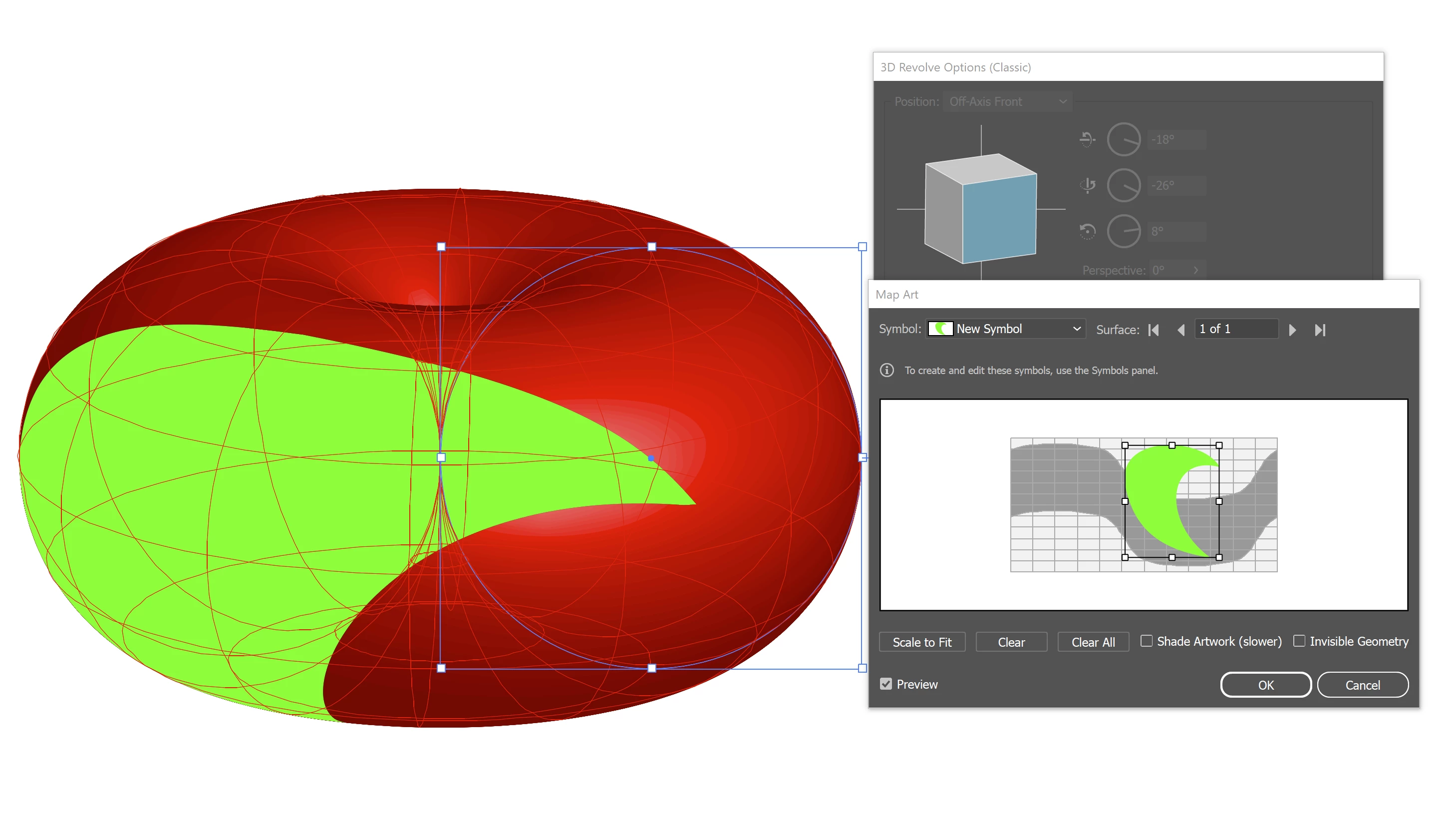

What's the original shape here? I only get one surface when revolving an ellipse:

Giovanni CelaniAuthor

Participating Frequently

nope, the shape is an ellipse and a rectangle, i submit the file thx

Giovanni CelaniAuthor

Participating Frequently

before you answer, no, the symbols aren't IN the object, I searched everywhere.

Thanks 🙌🙌🙏
