perspective grid tool

  • September 7, 2021
  • 3 replies
  • 2085 views

HELLO, I'm having problems using the perspective grid tool. When I transfer a photo into a square the photo doesn't adjust the perspective, it gets distorted. Can anyone help? My Illustrator CS6 version on a Mac.

This topic has been closed for replies.

3 replies

Ton Frederiks
Community Expert
Ton FrederiksCommunity Expert
Community Expert
September 7, 2021

Like Peter and Bill said, you cannot distort an image by dragging it into the Perspective grid.

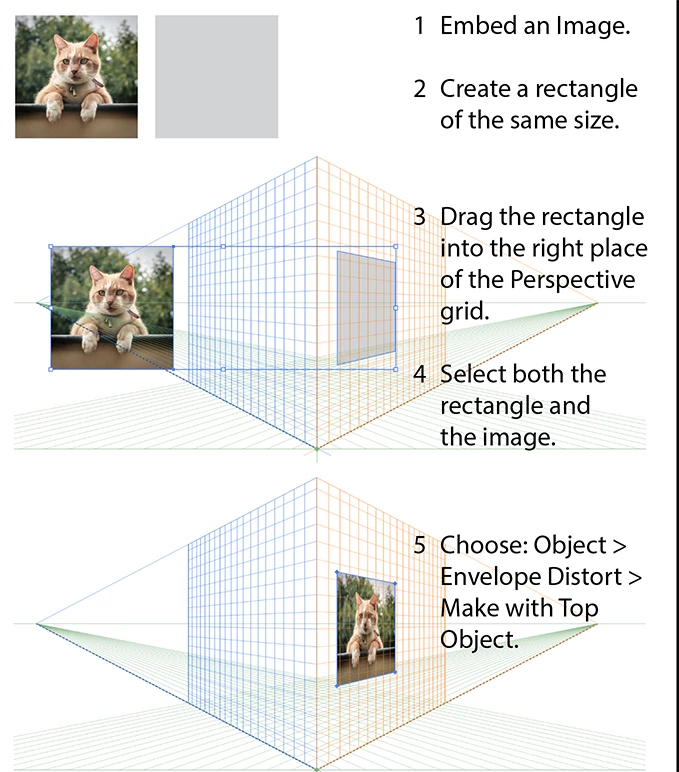

But maybe this is a workaround:

 

    V
    vitorm15253346Author
    Participating Frequently
    September 9, 2021

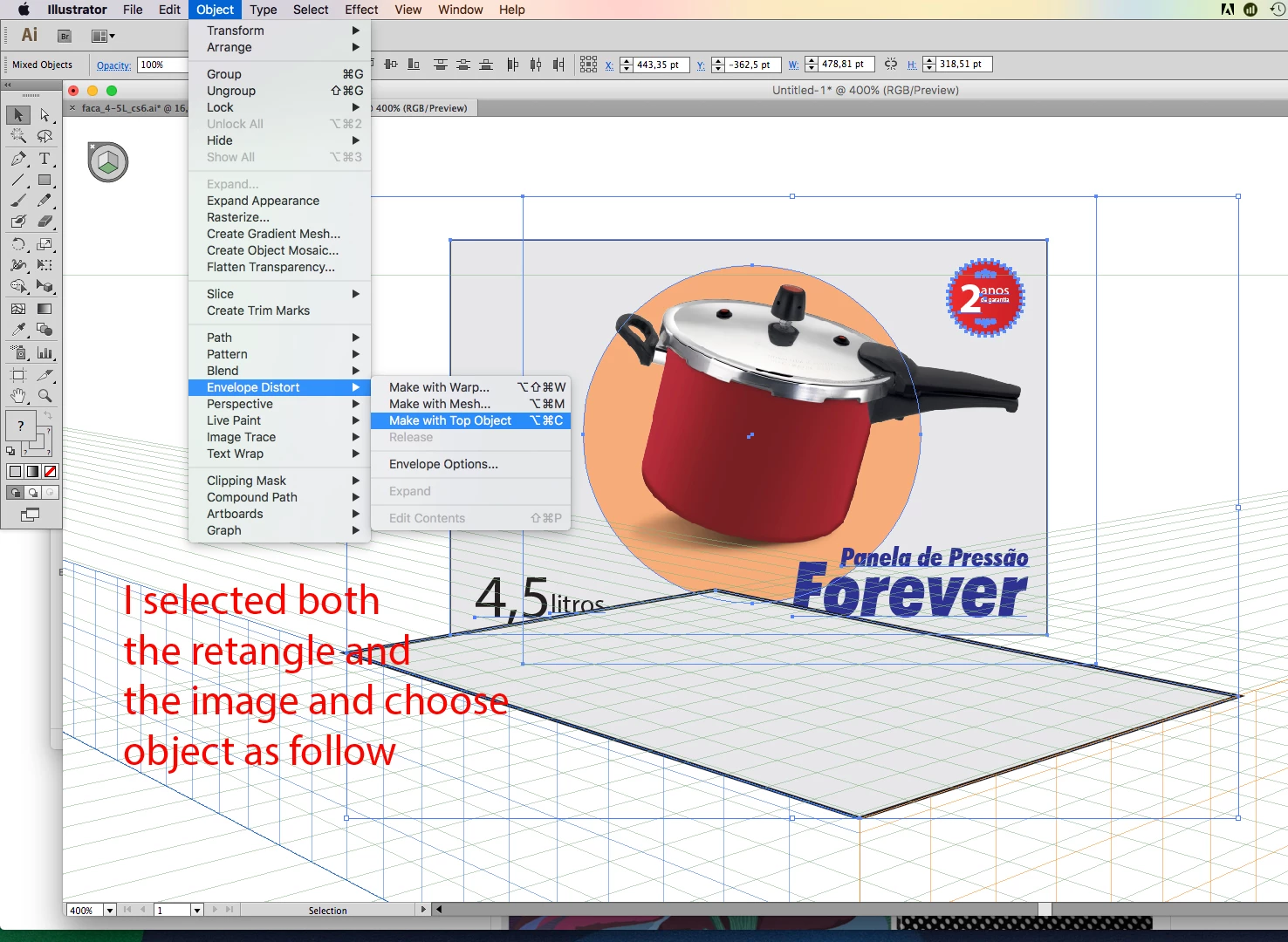

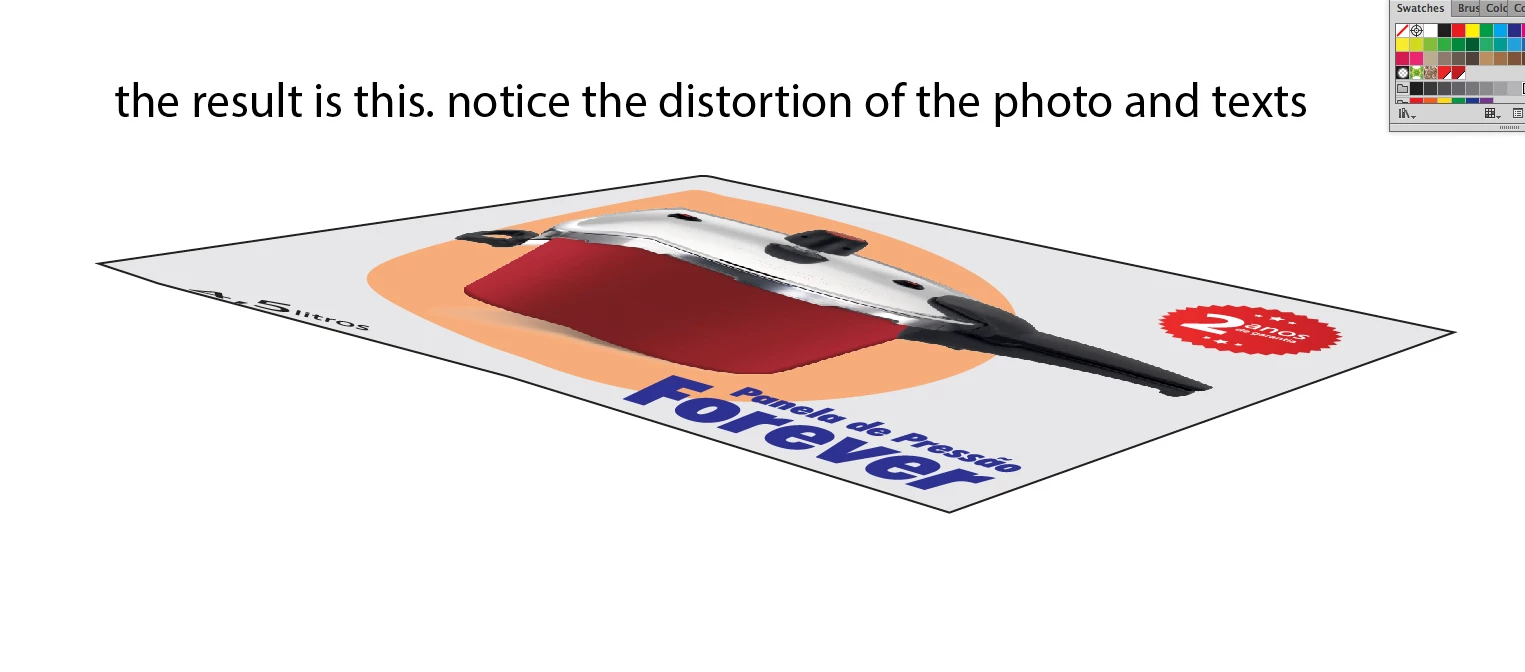

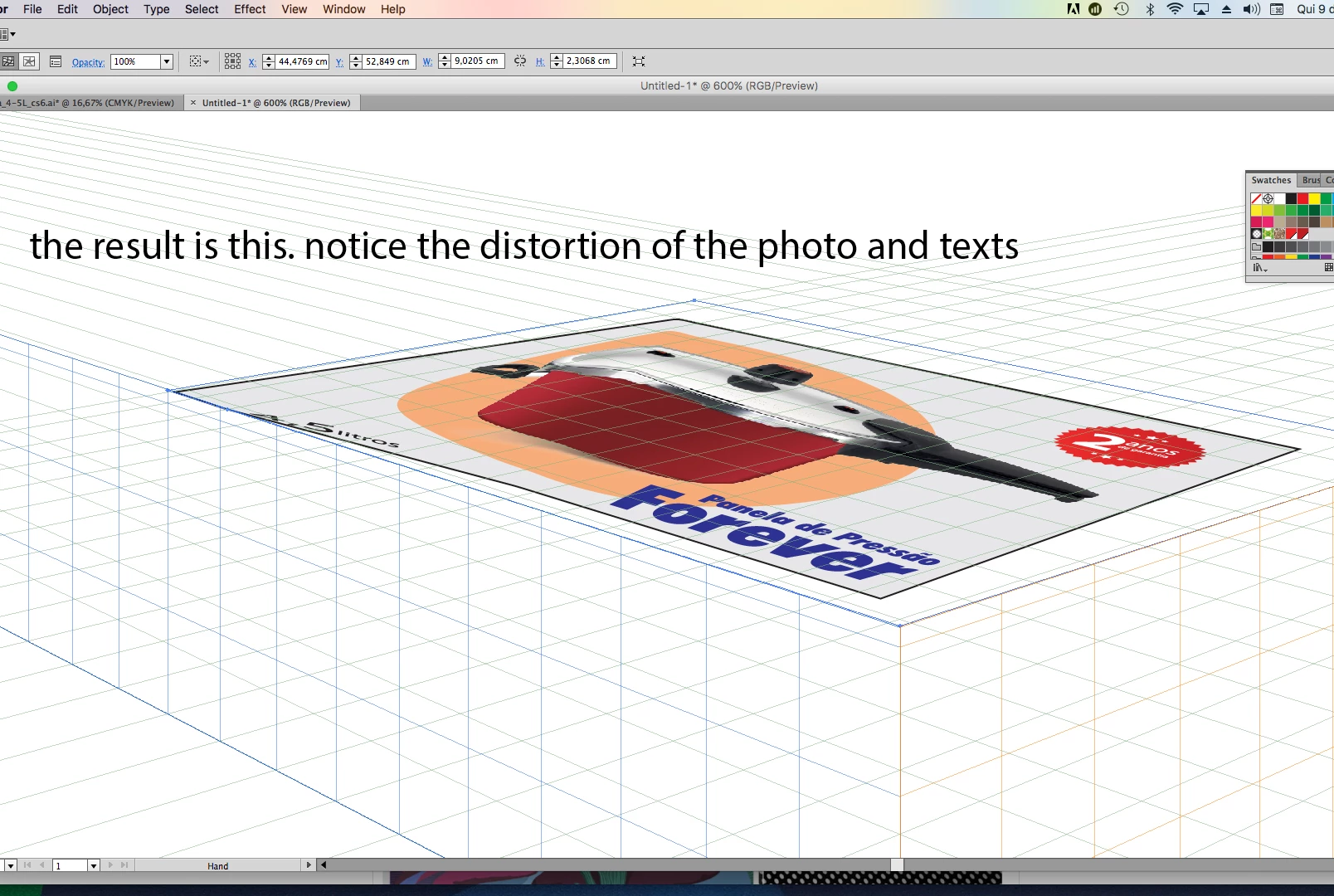

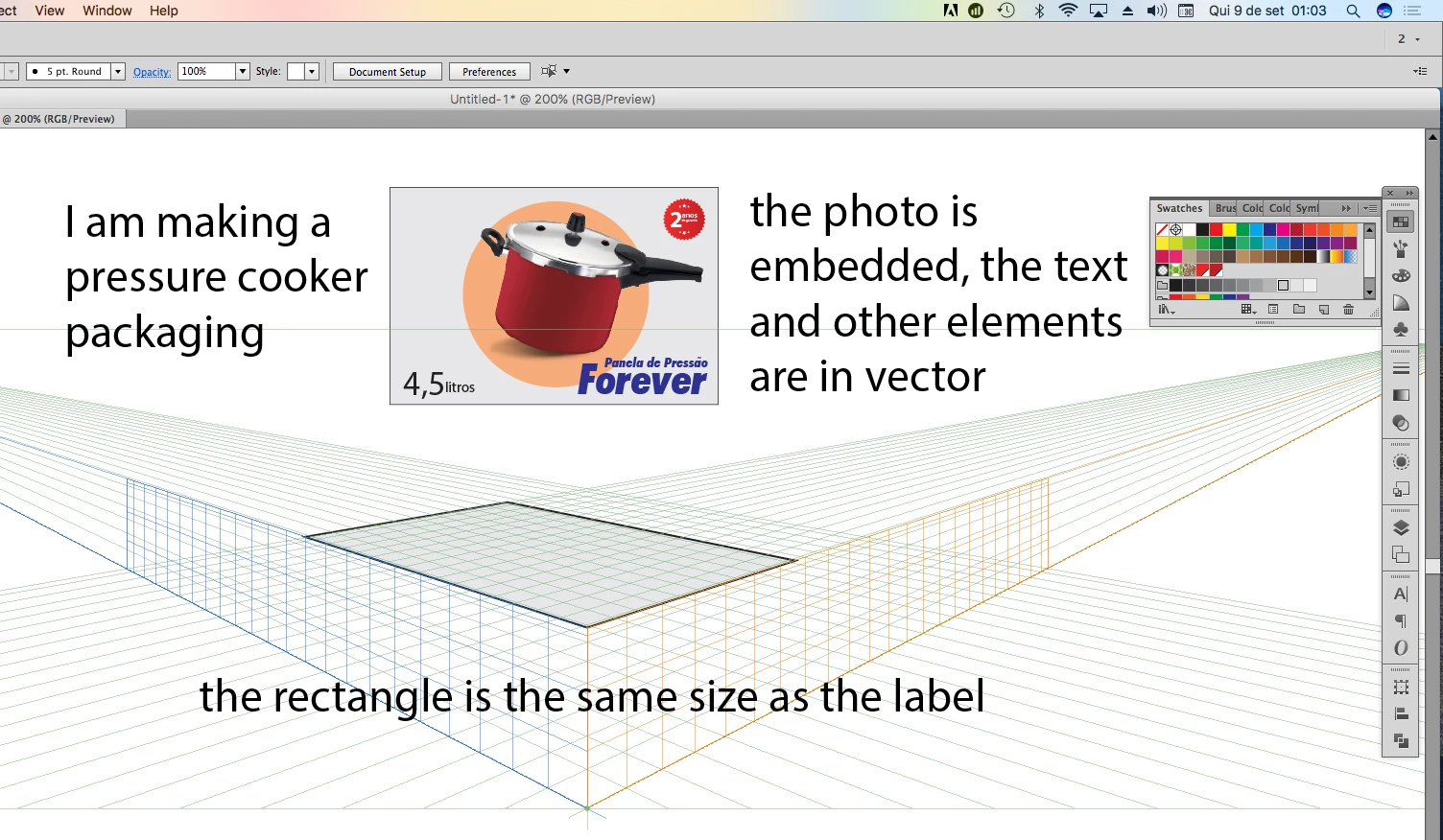

    I've done this before, Bill. Even this part I know how to do but he distortion occurs. I have attached some photos for you to understand the problem better. Thank you very much!

    Ton Frederiks
    Community Expert
    Ton FrederiksCommunity Expert
    Community Expert
    September 9, 2021

    It is a workaround and not perfect. Maybe adding points to the envelope can improve it, but you will get better results with Photoshop (as Bill suggested).

    Bill Silbert
    Community Expert
    Bill SilbertCommunity Expert
    Community Expert
    September 7, 2021

    Illustrator's  perspective grid tool is only designed for use with vector art. Even then it has its limitations as it will not correctly "perspectiveize" a stroked line (you must change it first to a closed path using Offset path). If you want to change the perspective of a raster object (an image) try using Photoshop's perspective warp tool https://helpx.adobe.com/photoshop/using/perspective-warp.html.

      V
      vitorm15253346Author
      Participating Frequently
      September 9, 2021

      Hi Bill, I have attached some photos for you to understand the problem better. Thank you very much!

      tromboniator
      Community Expert
      tromboniatorCommunity Expert
      Community Expert
      September 7, 2021

      There is no way (that I'm aware of) that a photo could adjust perspective. Could you please provide screenshots of your process and a step-by-step explanation of what you have done, what you expect to happen, and what actually happens?



      Thanks,
      Peter

        V
        vitorm15253346Author
        Participating Frequently
        September 9, 2021

        Hi Peter, I have attached some photos for you to understand the problem better. Thank you very much!
