Problem with dxf centering

Forum|Forum|5 years ago
April 19, 2021
2 replies
775 views

I have a problem with the export of my .dxf files.

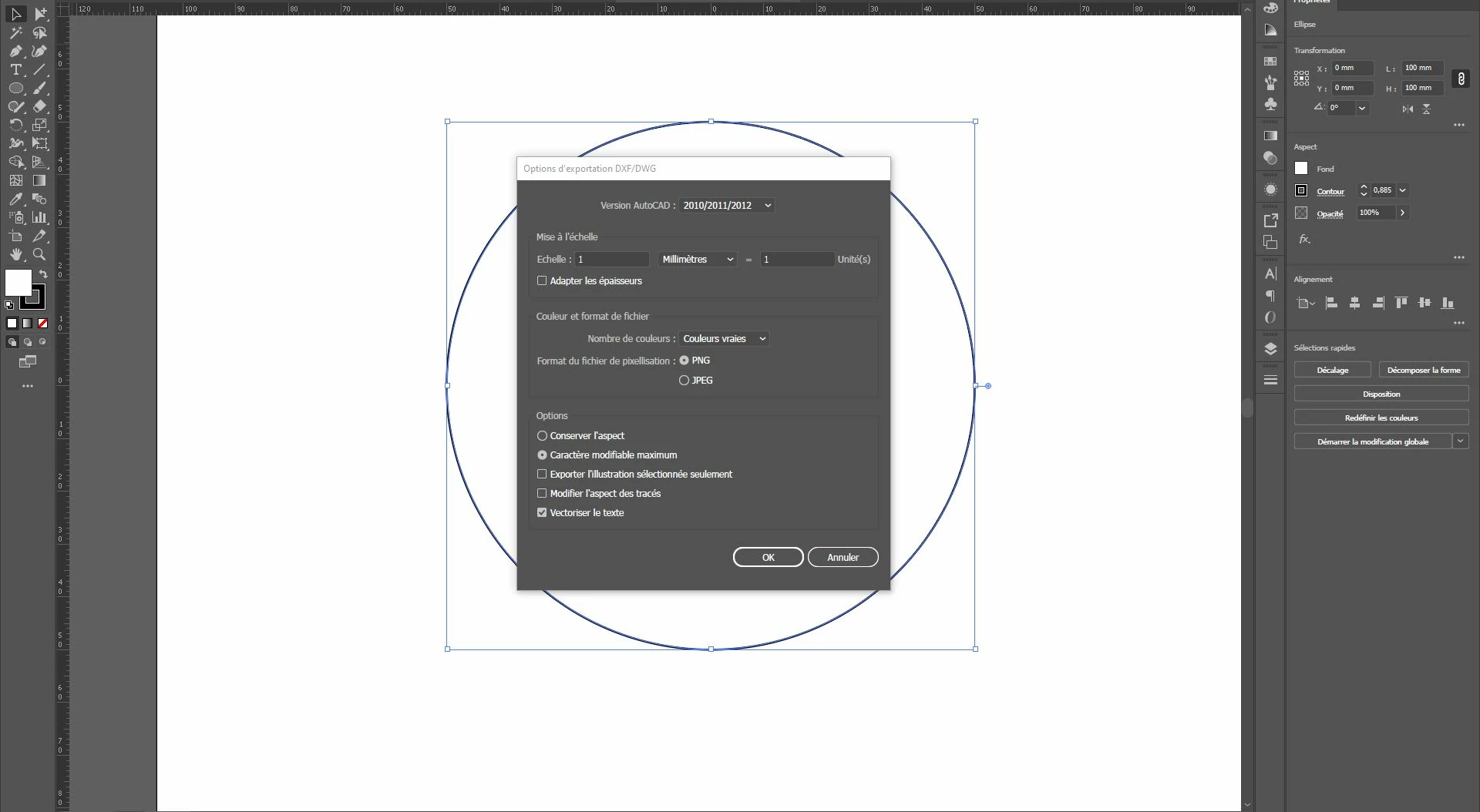

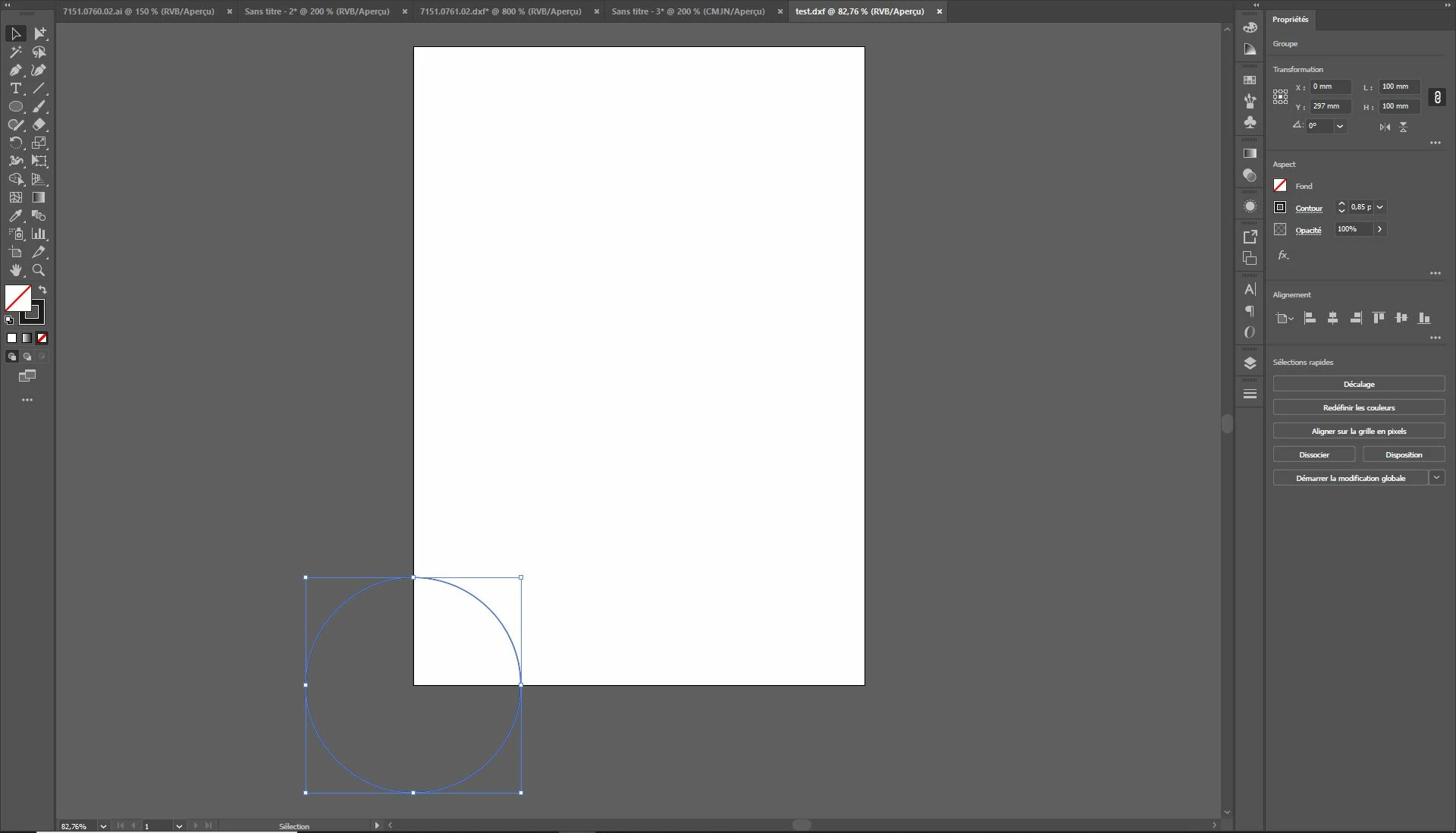

I put the drawing centered on the x and y axis but when I export it and open it again it is not centered anymore. Only one axis remains centered.

I have tried everything but nothing works.

Has anyone encountered this problem before?

Thank you in advance for your help!

This topic has been closed for replies.

John Mensinger

Community Expert

CAD designs exist "in space," and the formats are not paper-oriented until a given file is setup expressly for print output by associating a sheet size. The naked exchange format, .dxf, doesn't explicitly account for relative page or artboard coordinates (at least not in a way that makes sense in Illustrator). Reopening an Illustrator DXF export in Illustrator exposes this, as you've found.
