Remove a part i don't wanna see when in transparence

  • October 9, 2023
  • 3 replies
  • 794 views

Hello!

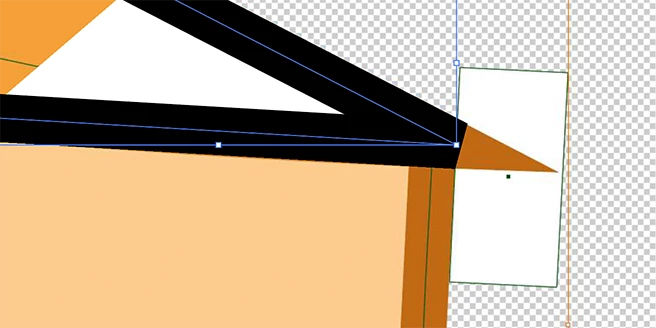

I've been struggling to know how to remove a part i don't wanna have without changing it (i've tried many tools) and i just wanna know how to remove this part when i want my design is in transparence w/o this part being seen. (The image is is there to visualize what i am talking about)



Thank you for your time if you ever answer to this question!



This topic has been closed for replies.
Correct answer Ton Frederiks

If you are finished with your design, you can choose Object > Path > Outline Stroke.

Ungroup the result. bring the white rectangle to the front.

Select both the white shape and the outlined path and click Minus Front in the Pathfinder panel.

This is destructive, you cannot easily change your original path so it is best done at the end or with a copy.

3 replies

Jacob Bugge
Community Expert
Jacob BuggeCommunity Expert
Community Expert
October 9, 2023

Lisa,



If you can live with such a solution, based on your screenshot you can:



1) Click the white rectangle behind the offending mitre spike to select it, then hold Ctrl/Cmd and press X then F then X then F to bring it on top;

2) ShiftClick the path with the offending mitre spike to also select that;

3) In the Transparency palette use Make (Opacity) Mask with Clip unticked and Invert Mask ticked.



This ought to hide the offending mitre spike behind the now invisible white rectangle.



    L
    Lisa32808530jzukAuthor
    Participating Frequently
    October 9, 2023

    Hii! Thanks for your suggestion! I'll try to see if it works asap! Thanks again for your time! ^^

    Jacob Bugge
    Community Expert
    Jacob BuggeCommunity Expert
    Community Expert
    October 10, 2023

    For my part you are welcome, Lisa.



    I hope you will report your findings.



      Kurt Gold
      Community Expert
      Kurt GoldCommunity Expert
      Community Expert
      October 9, 2023

      You may also try to decrease the Miter Limit in the Stroke palette. Or choose a different corner option there.



        L
        Lisa32808530jzukAuthor
        Participating Frequently
        October 9, 2023

        Hello! I'll see if it works! seems a bit easier than above ^^ But thanks!

        Ton Frederiks
        Community Expert
        Ton FrederiksCommunity Expert
        Community Expert
        October 9, 2023

        I thought about the miter limit, but you cannot control the angle of the mitre.

          Ton Frederiks
          Community Expert
          Ton FrederiksCommunity ExpertCorrect answer
          Community Expert
          October 9, 2023

          If you are finished with your design, you can choose Object > Path > Outline Stroke.

          Ungroup the result. bring the white rectangle to the front.

          Select both the white shape and the outlined path and click Minus Front in the Pathfinder panel.

          This is destructive, you cannot easily change your original path so it is best done at the end or with a copy.

            L
            Lisa32808530jzukAuthor
            Participating Frequently
            October 9, 2023

            Thank you for your advice! I'll try to see if it works! Until then, have a good day! :))
