Remove Lines outside of clipping mask on complex art?

  • July 11, 2024
  • 1 reply
  • 238 views

Hello,



I'm looking for a way to delete hidden lines completely outside of a clipping mask (and/or draw inside), because our cutting software still sees these paths.

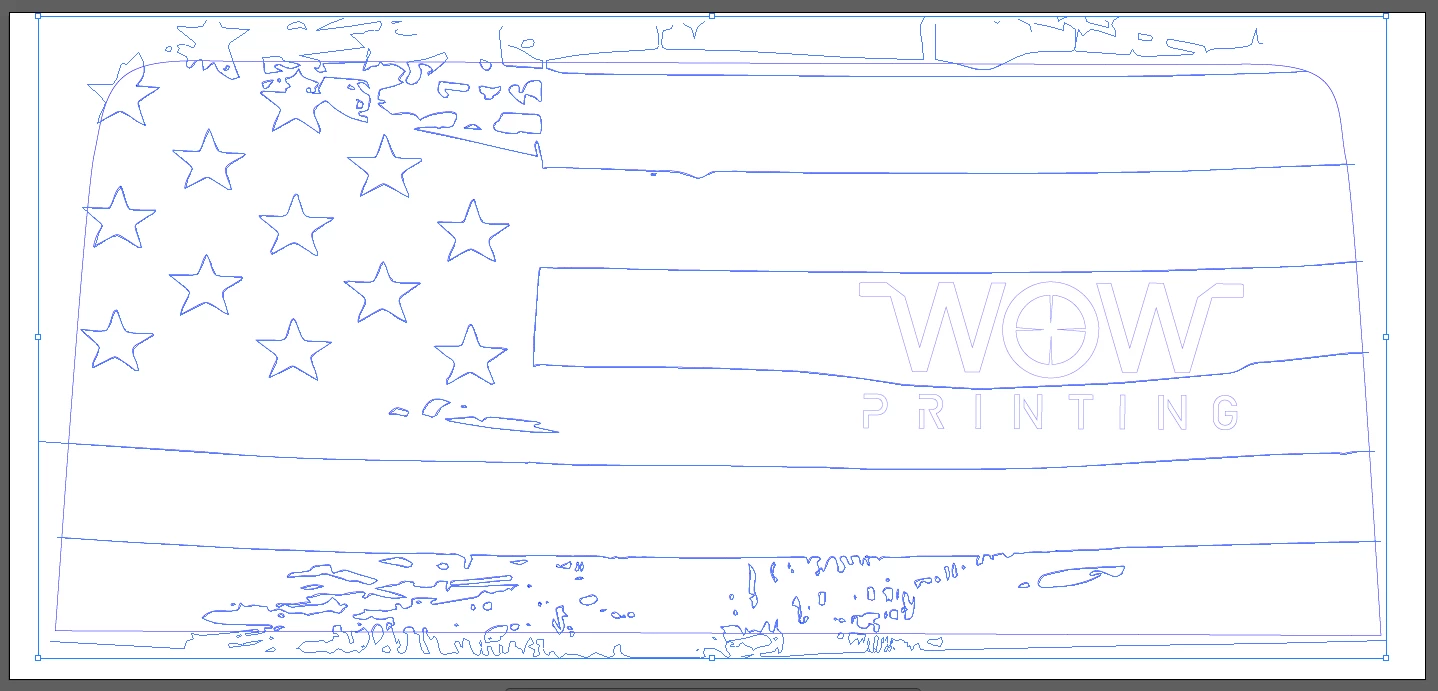

1. Desired result

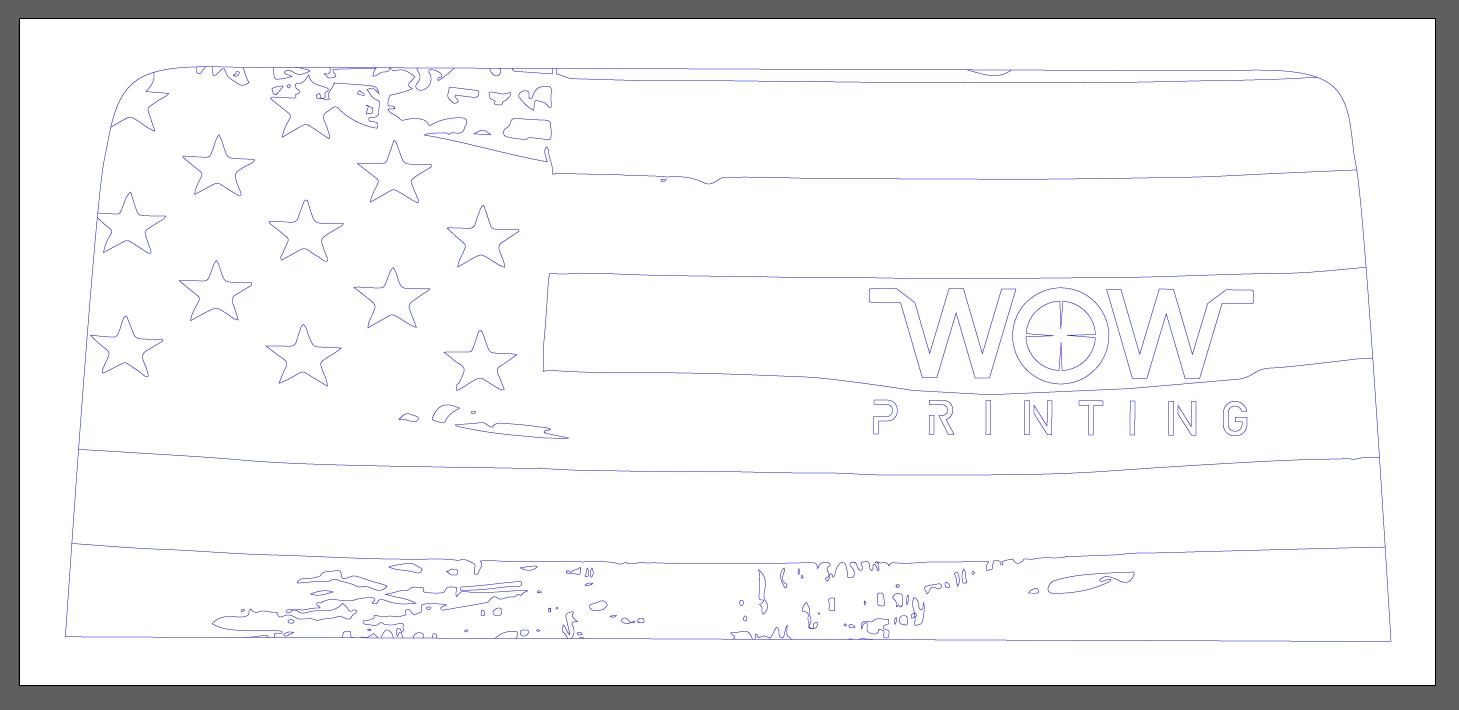

2. Cutter View

I've seen several posts on here about shapebuilder or pathfinder cropping, but neither of those options work. I'm using Cutting Master 4 in Illustrator 2024

This topic has been closed for replies.

1 reply

Monika Gause
Community Expert
Community Expert
July 11, 2024

Pathfinder doesn't work, because you have open paths. Check out the script Split Path from here: https://github.com/creold/illustrator-scripts/blob/master/md/Path.md#splitpath
