Removing Section of Image

  • December 1, 2017
  • 1 reply
  • 570 views

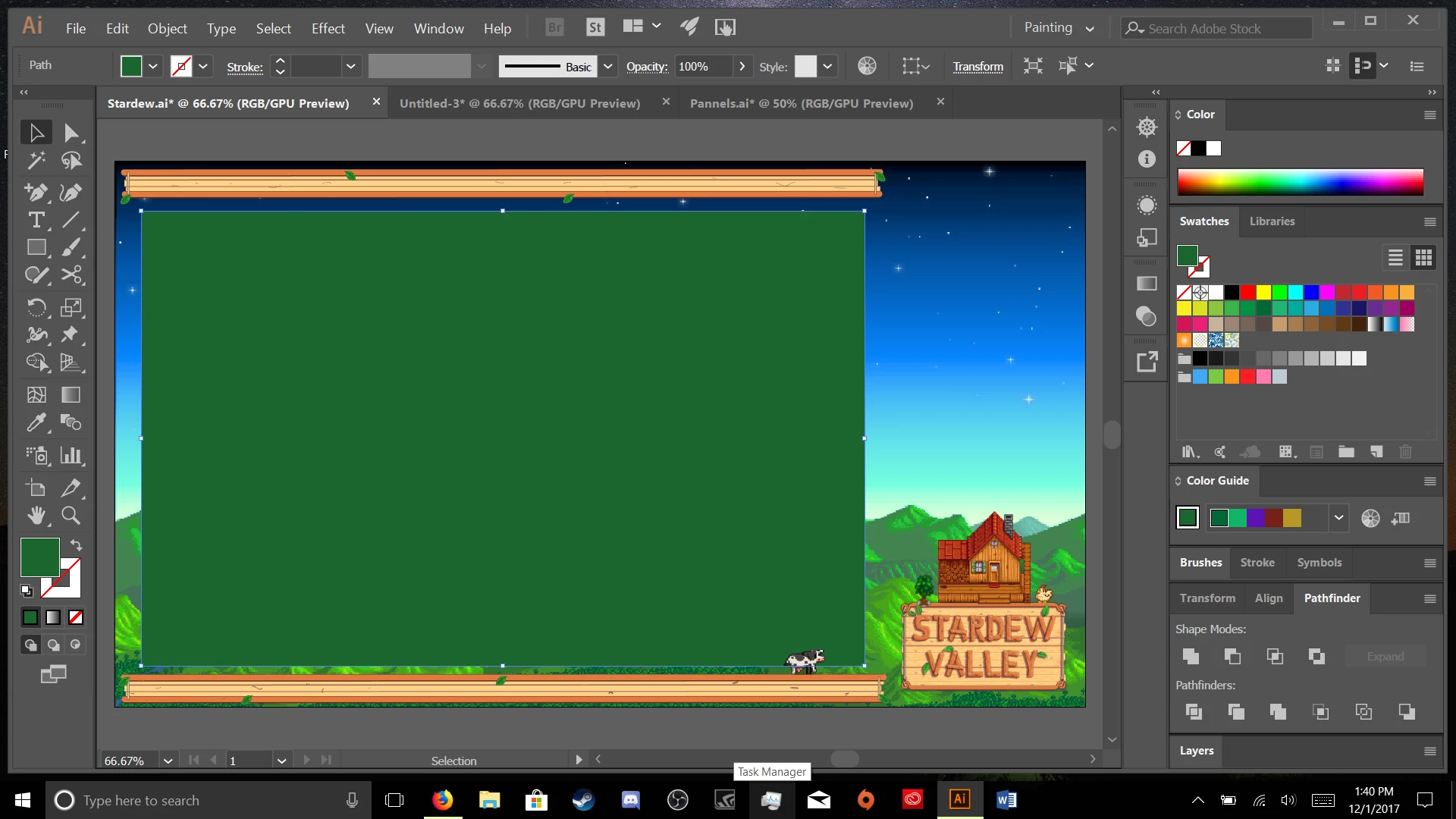

Ok, I'm fairly new to Illustrator and I have spent hours searching for how to correct the issue I'm having but I haven't been able to find a solution (even though I know it must be simple enough). I have an image and I want to take out a portion of the background in the center. I've tried the minus front/back thing. I've also tried the clipping mask and Knockout. Any suggestion would be greatly appreciated! The green box is the area I am trying to open to the artboard.

    This topic has been closed for replies.
    Correct answer Mike_Gondek10189183

    Hi Tiffany,

    You have the right ideas how to do this, but atleast one important step must be missing in the implementation.

    1. Fill your green shape with black. Command 3 to hide.
    2. Group your background. Command 3 to hide.
    3. Confirm all the items are hidden. Option Command 3 to unhide.
    4. After unhiding you will have 2 items selected. Your grouped art, and your black shape.
    5. Click make mask from transparency palette.
    6. Adjust  checkmarks until you get  desired result.

    Hard to remember which checkmarks to use, because this depends if your rectangle is filled with black or white. Since I work in photoshop I often think the opposite that black is a knockout color.

    Disregard the logo that is just what I had on screen to test my instructions were accurate.

    1 reply

    Mike_Gondek10189183
    Community Expert
    Mike_Gondek10189183Community ExpertCorrect answer
    Community Expert
    December 1, 2017

    Hi Tiffany,

    You have the right ideas how to do this, but atleast one important step must be missing in the implementation.

    1. Fill your green shape with black. Command 3 to hide.
    2. Group your background. Command 3 to hide.
    3. Confirm all the items are hidden. Option Command 3 to unhide.
    4. After unhiding you will have 2 items selected. Your grouped art, and your black shape.
    5. Click make mask from transparency palette.
    6. Adjust  checkmarks until you get  desired result.

    Hard to remember which checkmarks to use, because this depends if your rectangle is filled with black or white. Since I work in photoshop I often think the opposite that black is a knockout color.

    Disregard the logo that is just what I had on screen to test my instructions were accurate.

    tiffanyc88899970
    tiffanyc88899970Author
    Participant
    December 1, 2017

    Thank you so much. This have been driving me crazy!

    Mike_Gondek10189183
    Community Expert
    Mike_Gondek10189183Community Expert
    Community Expert
    December 1, 2017

    You are welcome
