Rotating warped text via script

  • October 6, 2020
  • 4 replies
  • 997 views

Hello, I'm writing a batch processing script to rotate svg and ai files. If the raw file contains a warped text frame, then the warp does not transform properly when rotated. I have combed through the DOM for warp options, looking at character attributes, etc. Does anyone have an idea on where to look, or if it's even possible? Some other way to identify if a frame is warped? I've tried converting the text to outlines but that does not help.



Thanks.

    This topic has been closed for replies.
    Correct answer renél80416020

    Hi!

    Suivre les conseils de William ou utilise "Distortion d'enveloppe"

    Pour un effet:





    obj = selection[0];
app.executeMenuCommand('expandStyle');
app.activeDocument.groupItems[0].rotate(90);





    avec "Distortion d'enveloppe"





    obj = selection[0];
obj.rotate(90);













    4 replies

    Silly-V
    Silly-V
    Legend
    October 7, 2020

    If this fits your scenario, you can try to use a live effect syntax to put a transform effect on your art. The only parameter you'd want to change is the rotation angle. However, due to the limitations of Illustrator and scripting the appearance panel this way, you'd have to employ other auxiliary techniques such as graphic styles or recorded actions. The extra stuff may be necessary if you want to reset your art back to not having this effect. I think one simple way to isolate this kind of effect from your artistry ones is to make sure your art is grouped and wrapped in a group which only has this effect.
    https://community.adobe.com/t5/illustrator/pageitem-applyeffect-liveeffectxml/m-p/7315221?page=1

    renél80416020
    renél80416020
    Inspiring
    October 7, 2020

    Bonjour,

    Il faudrait plus de précisions sur le genre de distorsion.

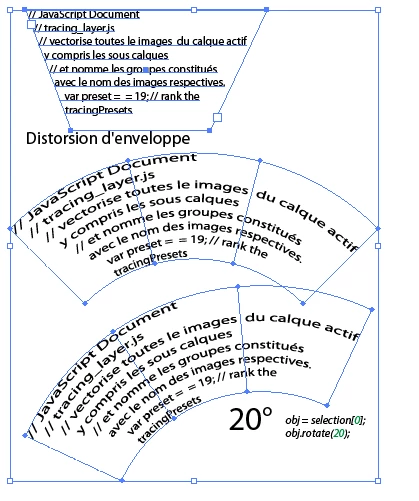

    Je donne un exemple Distorsion d'enveloppe qui fonctionne pour Ai.

    obj = selection[0];
    obj.rotate(20);

    Pour l'enregistrement en SVG, le texte ayant subi une distorsion est vectorisé, pour le texte d'origine le cadre disparaît.





      brian_p_dts
      Community Expert
      brian_p_dtsCommunity ExpertAuthor
      Community Expert
      October 7, 2020

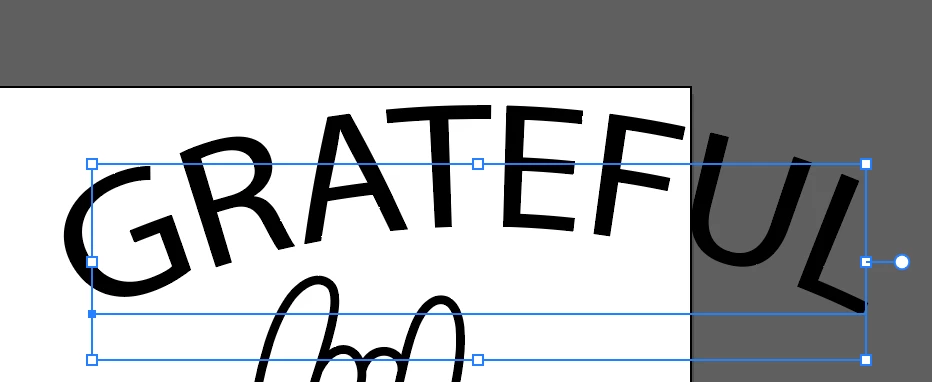

      Hi, here are before an after screenshots of what happens to an ai file.

      renél80416020
      renél80416020Correct answer
      Inspiring
      October 7, 2020

      Hi!

      Suivre les conseils de William ou utilise "Distortion d'enveloppe"

      Pour un effet:





      obj = selection[0];
app.executeMenuCommand('expandStyle');
app.activeDocument.groupItems[0].rotate(90);





      avec "Distortion d'enveloppe"





      obj = selection[0];
obj.rotate(90);













      renél80416020
      renél80416020
      Inspiring
      October 7, 2020







      Disposition_Dev
      Disposition_Dev
      Legend
      October 6, 2020

      What parameters are you passing to the rotate() function? just the angle of rotation?



      consult this documentation and see if changing any of the other parameters does what you want:

      https://illustrator-scripting-guide.readthedocs.io/jsobjref/TextFrameItem/?highlight=rotate#rotate-a-text-art-item





      edit* forgot to mention, just creating outlines doesn't actually do anything to the effects that are applied. You'll need either "Expand" or "Expand Appearance" or possibly both of those. that will break everything down into simple vector paths. perhaps that'll work for ya.
