Rounding a single corner not working

Forum|Forum|3 years ago
December 2, 2022
2 replies
566 views

I'm attempting to round just the top two corner of a rectangle shape, but using the Direct Selection tool is not working. I've tried holding down keys, but either the entire rectangle gets selected or all four corners get round. I don't know what's meant by the "widget" I'm supposed to be seeing, but I don't see it at all. What am I doing wrong? Thanks!

This topic has been closed for replies.

Mike_Gondek10189183

Community Expert

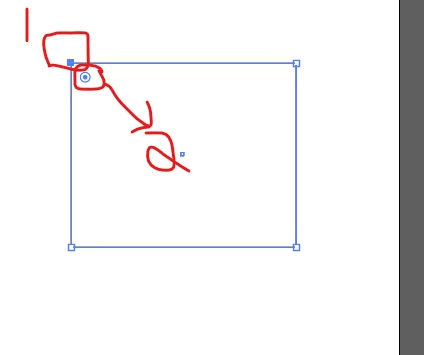

1 - Use the direct select (Hollow arrow) tool to make the point you want to edit solid, leaving others hollow.

2- Drag the circle to round just that point

Using the hollow arrow tool is essential in Illustrator to do custom work.

Monika Gause

Community Expert

Use the direct selection tool and drag a rectangle around those two corners. Then there should be a fat circle with a point inside it in each corner - the "widget". Then drag one of them. The other should follow.

If the widget is not there: try View > Show corner widget. Also: zoom in.

H

Holton RecorderAuthor

Inspiring

That did it! Clicking on the rectangle wasn't working, but drawing a little rectangle around just the top two corners did. Thank you!
