Script doesn't undo in one go, please help
hello, the following script is not able to undo its actions in one go, any ideas of where I am making a mess? Also it deosnt work on mac, I think the file path in it maybe wrong havn't sorted that yet.

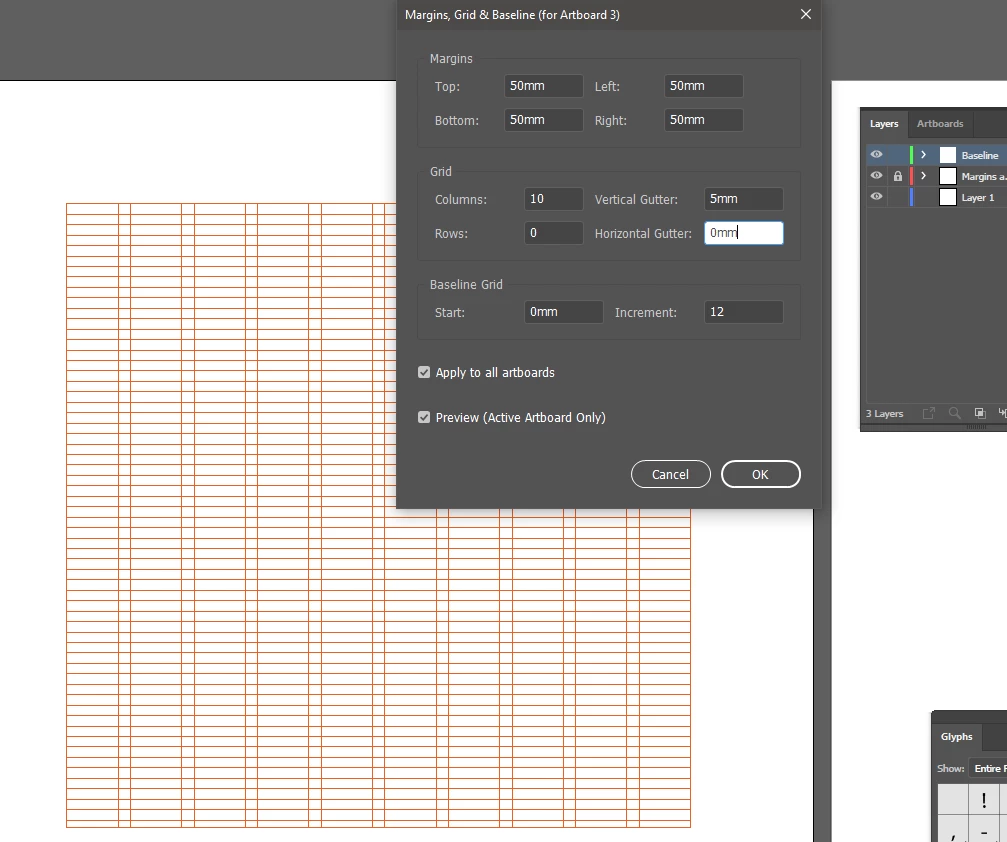

The script makes guides
and here is the entire script
/**
* Illustrator Margins, Grid & Baseline Guide Script [CLEAN MODERN VERSION]
* No geometry/visual styling code—pure guides only.
* All settings and UI logic are preserved; all RGB/stroke/fill logic is stripped out.
*/
var settingsXMLPath = Folder.myDocuments + "/IllustratorGridSettings.xml";
// --- XML functions (unchanged) ---
function loadSettingsFromXML(xmlFilePath, abIdx, defaults) {
function stringifyDefaults(defaultsObj) {
var stringDefaults = {};
for (var key in defaultsObj) {
if (defaultsObj.hasOwnProperty(key)) {
if (key === "BaselineInc") {
stringDefaults[key] = defaultsObj[key].toString() + "pt";
} else if (key === "Columns" || key === "Rows") {
stringDefaults[key] = defaultsObj[key].toString();
} else {
stringDefaults[key] = defaultsObj[key].toString() + "mm";
}
}
}
return stringDefaults;
}
var file = new File(xmlFilePath);
if (!file.exists) return stringifyDefaults(defaults);
file.open('r');
var content = file.read();
file.close();
var abTag = new RegExp('<Artboard index="' + abIdx + '">([\\s\\S]*?)<\\/Artboard>');
var found = content.match(abTag);
if (found) {
var vals = {};
var tags = ["Top","Bottom","Left","Right","Columns","Rows","VertGutter","HorGutter","BaselineStart","BaselineInc"];
for (var i = 0; i < tags.length; i++) {
var tagName = tags[i];
var tagRegex = new RegExp('<' + tagName + '>([\\s\\S]*?)<\\/' + tagName + '>');
var tagMatch = found[1].match(tagRegex);
if (tagMatch) {
vals[tagName] = tagMatch[1];
} else {
if (tagName === "BaselineInc") {
vals[tagName] = defaults[tagName].toString() + "pt";
} else if (tagName === "Columns" || tagName === "Rows") {
vals[tagName] = defaults[tagName].toString();
} else {
vals[tagName] = defaults[tagName].toString() + "mm";
}
}
}
return vals;
}
return stringifyDefaults(defaults);
}
function saveSettingsToXML(xmlFilePath, abIdx, newVals) {
var file = new File(xmlFilePath);
var xmlContent = '';
if (file.exists) {
file.open('r');
xmlContent = file.read();
file.close();
}
var abTag = new RegExp('<Artboard index="' + abIdx + '">([\\s\\S]*?)<\\/Artboard>', 'g');
xmlContent = xmlContent.replace(abTag, '');
var abXML = ' <Artboard index="' + abIdx + '">\n';
for (var key in newVals) {
var value = newVals[key].toString()
.replace(/&/g, '&')
.replace(/</g, '<')
.replace(/>/g, '>');
abXML += ' <' + key + '>' + value + '</' + key + '>\n';
}
abXML += ' </Artboard>\n';
if (xmlContent.indexOf('<GridSettings>') === -1) {
xmlContent = '<GridSettings>\n' + abXML + '</GridSettings>';
} else {
xmlContent = xmlContent.replace('</GridSettings>', abXML + '</GridSettings>');
}
file.open('w');
file.write(xmlContent);
file.close();
}
// --- Helpers (pure units and layer logic) ---
function mmToPt(mm) { return mm * 2.83465; }
function findLayer(doc, name) {
for (var i = 0; i < doc.layers.length; i++) {
if (doc.layers[i].name === name) return doc.layers[i];
}
return null;
}
function deleteLayerByExactName(doc, name) {
for (var i = doc.layers.length - 1; i >= 0; i--) {
if (doc.layers[i].name === name) {
doc.layers[i].locked = false;
doc.layers[i].visible = true;
doc.layers[i].remove();
}
}
}
// Robust path removal using only note matching
function removePathsForArtboard(layer, abIdx) {
if (!layer) return;
var abTag = " ab" + abIdx + " ";
for (var i = layer.pathItems.length - 1; i >= 0; i--) {
try {
var p = layer.pathItems[i];
if (p.note && p.note.indexOf(abTag) === 0) {
p.remove();
}
} catch (e) {}
}
}
function hasPathsForArtboard(layer, abIdx) {
if (!layer) return false;
var abTag = " ab" + abIdx + " ";
try {
for (var i = 0; i < layer.pathItems.length; i++) {
var p = layer.pathItems[i];
if (p.note && p.note.indexOf(abTag) === 0) return true;
}
} catch (e) {}
return false;
}
function cleanupEmptyLayer(doc, layerName) {
var layer = findLayer(doc, layerName);
if (layer && layer.pathItems.length === 0) {
try {
layer.locked = false;
layer.remove();
return null;
} catch (e) {}
}
return layer;
}
// --- Unit Parsing (with baseline default to pt!) ---
function parseValueWithUnit(inputStr) {
if (typeof inputStr !== 'string') inputStr = String(inputStr);
inputStr = inputStr.replace(/\s/g, '');
var match = inputStr.match(/^(-?\d*\.?\d+)([a-zA-Z%]*)$/);
if (!match) {
var num = parseFloat(inputStr);
return isNaN(num) ? NaN : mmToPt(num);
}
var value = parseFloat(match[1]);
var unit = match[2].toLowerCase();
if (isNaN(value)) return NaN;
switch (unit) {
case '': return mmToPt(value); // Only parseValueWithUnitPt() changes this!
case 'mm': return mmToPt(value);
case 'cm': return mmToPt(value * 10);
case 'in': case 'inch': return value * 72;
case 'pt': case 'point': return value;
case 'px': case 'pixel':
var doc = app.activeDocument;
return (doc.rulerUnits == RulerUnits.Pixels) ? value : value * 0.75;
case 'pc': case 'pica': return value * 12;
default: return mmToPt(value);
}
}
// --- baseline: always treat no unit as pt ---
function parseValueWithUnitPt(inputStr) {
if (typeof inputStr !== 'string') inputStr = String(inputStr);
inputStr = inputStr.replace(/\s/g, '');
var match = inputStr.match(/^(-?\d*\.?\d+)([a-zA-Z%]*)$/);
if (!match) {
var num = parseFloat(inputStr);
return isNaN(num) ? NaN : num; // If no unit, treat as points
}
var value = parseFloat(match[1]);
var unit = match[2].toLowerCase();
if (isNaN(value)) return NaN;
switch (unit) {
case '':
case 'pt':
case 'point':
return value;
case 'mm': return mmToPt(value);
case 'cm': return mmToPt(value * 10);
case 'in': case 'inch': return value * 72;
case 'px': case 'pixel':
var doc = app.activeDocument;
return (doc.rulerUnits == RulerUnits.Pixels) ? value : value * 0.75;
case 'pc': case 'pica': return value * 12;
default: return value; // Default to pt for unknown
}
}
// Adds default unit if user omitted it (mm or pt, depending on field)
function addDefaultUnit(inputStr, fieldType) {
if (typeof inputStr !== 'string') inputStr = String(inputStr);
inputStr = inputStr.replace(/\s/g, '');
var match = inputStr.match(/^(-?\d*\.?\d+)([a-zA-Z%]*)$/);
if (match && match[2] === '') {
if (fieldType === "baseline") return inputStr + "pt";
else if (fieldType === "number") return inputStr;
else return inputStr + "mm";
}
return inputStr;
}
function isMarginsChanged(current, loaded) {
return current.top !== loaded.top ||
current.bottom !== loaded.bottom ||
current.left !== loaded.left ||
current.right !== loaded.right ||
current.columns !== loaded.columns ||
current.rows !== loaded.rows ||
current.vertGutter !== loaded.vertGutter ||
current.horGutter !== loaded.horGutter;
}
function isBaselineChanged(current, loaded) {
return current.baselineStart !== loaded.baselineStart ||
current.baselineInc !== loaded.baselineInc;
}
// --- Guide Creation: NO RGB/stroke/fill code remains ---
// Margin "guide rectangle" is simply four guide lines (no color or stroke!).
function addMarginsAndColumnsToLayer(layer, ab, abIdx, top_pt, bottom_pt, left_pt, right_pt, columns, vertGutter_pt, rows, horGutter_pt) {
var rect = ab.artboardRect;
var left = rect[0], top = rect[1], right = rect[2], bottom = rect[3];
var width = right - left, height = top - bottom;
var abTag = " ab" + abIdx + " ";
if (width - left_pt - right_pt <= 0 || height - top_pt - bottom_pt <= 0) return;
// Rect margin guides: four sides
if (top_pt > 0 || bottom_pt > 0 || left_pt > 0 || right_pt > 0) {
// Top
var topGuide = layer.pathItems.add();
topGuide.setEntirePath([[left + left_pt, top - top_pt], [right - right_pt, top - top_pt]]);
topGuide.guides = true;
topGuide.note = abTag + "margin";
// Bottom
var bottomGuide = layer.pathItems.add();
bottomGuide.setEntirePath([[left + left_pt, bottom + bottom_pt], [right - right_pt, bottom + bottom_pt]]);
bottomGuide.guides = true;
bottomGuide.note = abTag + "margin";
// Left
var leftGuide = layer.pathItems.add();
leftGuide.setEntirePath([[left + left_pt, top - top_pt], [left + left_pt, bottom + bottom_pt]]);
leftGuide.guides = true;
leftGuide.note = abTag + "margin";
// Right
var rightGuide = layer.pathItems.add();
rightGuide.setEntirePath([[right - right_pt, top - top_pt], [right - right_pt, bottom + bottom_pt]]);
rightGuide.guides = true;
rightGuide.note = abTag + "margin";
}
columns = Math.min(columns, 20);
if (columns > 1) {
var usableWidth = width - left_pt - right_pt;
var colWidth = (usableWidth - (columns - 1) * vertGutter_pt) / columns;
var x = left + left_pt;
for (var c = 0; c < columns - 1; c++) {
x += colWidth;
var vGuide1 = layer.pathItems.add();
vGuide1.setEntirePath([[x, top - top_pt], [x, bottom + bottom_pt]]);
vGuide1.guides = true;
vGuide1.note = abTag + "colg";
x += vertGutter_pt;
var vGuide2 = layer.pathItems.add();
vGuide2.setEntirePath([[x, top - top_pt], [x, bottom + bottom_pt]]);
vGuide2.guides = true;
vGuide2.note = abTag + "colg";
}
}
rows = Math.min(rows, 20);
if (rows > 1) {
var usableHeight = height - top_pt - bottom_pt;
var rowHeight = (usableHeight - (rows - 1) * horGutter_pt) / rows;
var y = top - top_pt;
for (var r = 0; r < rows - 1; r++) {
y -= rowHeight;
var hGuide1 = layer.pathItems.add();
hGuide1.setEntirePath([[left + left_pt, y], [right - right_pt, y]]);
hGuide1.guides = true;
hGuide1.note = abTag + "rowg";
y -= horGutter_pt;
var hGuide2 = layer.pathItems.add();
hGuide2.setEntirePath([[left + left_pt, y], [right - right_pt, y]]);
hGuide2.guides = true;
hGuide2.note = abTag + "rowg";
}
}
}
function addBaselineGridToLayer(layer, ab, abIdx, top_pt, bottom_pt, left_pt, right_pt, baselineStart_pt, baselineInc_pt) {
if (baselineInc_pt <= 0 || !layer) return;
var rect = ab.artboardRect;
var left = rect[0], top = rect[1], right = rect[2], bottom = rect[3];
var abTag = " ab" + abIdx + " ";
var y0 = top - top_pt - baselineStart_pt;
var yEnd = bottom + bottom_pt;
var count = 0, maxLines = 500;
try {
while (y0 > yEnd && count < maxLines) {
var line = layer.pathItems.add();
line.setEntirePath([[left + left_pt, y0], [right - right_pt, y0]]);
line.guides = true;
line.note = abTag + "baseline";
y0 -= baselineInc_pt;
count++;
}
} catch (e) {}
}
// --- Preview Globals and Config ---
var previewUndoCount = 0;
var isCommittingPreview = false;
var CFG = { is2020: parseInt(app.version) === 24 };
var previewDebounceTimer = null;
var isInitializing = false; // NEW: Track initial preview
// --- UI Dialog ---
function showMarginsDialog() {
if (app.documents.length === 0) { alert("Please open a document first."); return; }
var doc = app.activeDocument;
var abIdx = doc.artboards.getActiveArtboardIndex();
var defaults = {
Top:12.7, Bottom:12.7, Left:12.7, Right:12.7,
Columns:2, Rows:2, VertGutter:4.233, HorGutter:4.233,
BaselineStart:0, BaselineInc:12
};
var settings = loadSettingsFromXML(settingsXMLPath, abIdx, defaults);
var loaded_pt = {
top: parseValueWithUnit(settings.Top),
bottom: parseValueWithUnit(settings.Bottom),
left: parseValueWithUnit(settings.Left),
right: parseValueWithUnit(settings.Right),
columns: parseInt(settings.Columns),
rows: parseInt(settings.Rows),
vertGutter: parseValueWithUnit(settings.VertGutter),
horGutter: parseValueWithUnit(settings.HorGutter),
baselineStart: parseValueWithUnit(settings.BaselineStart),
baselineInc: parseValueWithUnitPt(settings.BaselineInc)
};
var w = new Window("dialog", "Margins, Grid & Baseline (for Artboard " + (abIdx + 1) + ")");
w.orientation = "column";
w.alignChildren = "fill";
w.spacing = 15;
w.margins = 20;
var marginPanel = w.add("panel", undefined, "Margins");
marginPanel.orientation = "column"; marginPanel.alignChildren = "fill";
marginPanel.margins = 15; marginPanel.spacing = 10;
var mRow1 = marginPanel.add("group");
mRow1.orientation = "row"; mRow1.alignChildren = "center"; mRow1.spacing = 10;
mRow1.add("statictext", undefined, "Top:").preferredSize.width = 60;
var topInput = mRow1.add("edittext", undefined, settings.Top); topInput.preferredSize.width = 80;
mRow1.add("statictext", undefined, "Left:").preferredSize.width = 60;
var leftInput = mRow1.add("edittext", undefined, settings.Left); leftInput.preferredSize.width = 80;
var mRow2 = marginPanel.add("group");
mRow2.orientation = "row"; mRow2.alignChildren = "center"; mRow2.spacing = 10;
mRow2.add("statictext", undefined, "Bottom:").preferredSize.width = 60;
var bottomInput = mRow2.add("edittext", undefined, settings.Bottom); bottomInput.preferredSize.width = 80;
mRow2.add("statictext", undefined, "Right:").preferredSize.width = 60;
var rightInput = mRow2.add("edittext", undefined, settings.Right); rightInput.preferredSize.width = 80;
var gridPanel = w.add("panel", undefined, "Grid");
gridPanel.orientation = "column"; gridPanel.alignChildren = "fill";
gridPanel.margins = 15; gridPanel.spacing = 10;
var gRow1 = gridPanel.add("group");
gRow1.orientation = "row"; gRow1.alignChildren = "center"; gRow1.spacing = 10;
gRow1.add("statictext", undefined, "Columns:").preferredSize.width = 80;
var colInput = gRow1.add("edittext", undefined, settings.Columns); colInput.preferredSize.width = 60;
gRow1.add("statictext", undefined, "Vertical Gutter:").preferredSize.width = 100;
var vertGutterInput = gRow1.add("edittext", undefined, settings.VertGutter); vertGutterInput.preferredSize.width = 80;
var gRow2 = gridPanel.add("group");
gRow2.orientation = "row"; gRow2.alignChildren = "center"; gRow2.spacing = 10;
gRow2.add("statictext", undefined, "Rows:").preferredSize.width = 80;
var rowInput = gRow2.add("edittext", undefined, settings.Rows); rowInput.preferredSize.width = 60;
gRow2.add("statictext", undefined, "Horizontal Gutter:").preferredSize.width = 100;
var horGutterInput = gRow2.add("edittext", undefined, settings.HorGutter); horGutterInput.preferredSize.width = 80;
var basePanel = w.add("panel", undefined, "Baseline Grid");
basePanel.orientation = "row"; basePanel.alignChildren = "center";
basePanel.margins = 15; basePanel.spacing = 10;
basePanel.add("statictext", undefined, "Start:").preferredSize.width = 80;
var baselineStartInput = basePanel.add("edittext", undefined, settings.BaselineStart); baselineStartInput.preferredSize.width = 80;
basePanel.add("statictext", undefined, "Increment:").preferredSize.width = 80;
var baselineIncInput = basePanel.add("edittext", undefined, settings.BaselineInc); baselineIncInput.preferredSize.width = 80;
baselineIncInput.helpTip = "Baseline increment (bare numbers = points, e.g. 12 = 12pt)";
var applyAllGroup = w.add("group"); applyAllGroup.margins = [0, 10, 0, 0];
var applyAllChk = applyAllGroup.add("checkbox", undefined, "Apply to all artboards");
applyAllChk.value = (doc.artboards.length === 1);
var previewGroup = w.add("group"); previewGroup.margins = [0, 10, 0, 0];
var isPreview = previewGroup.add("checkbox", undefined, "Preview (Active Artboard Only)");
isPreview.helpTip = "Toggle to see changes live (undoable)";
if (CFG.is2020) {
isPreview.enabled = false;
isPreview.helpTip = "Preview disabled due to Illustrator bug";
}
var btnGroup = w.add("group"); btnGroup.orientation = "row"; btnGroup.alignment = "right";
btnGroup.spacing = 10; btnGroup.margins = [0, 15, 0, 0];
var cancelBtn = btnGroup.add("button", undefined, "Cancel", { name: "cancel" });
var okBtn = btnGroup.add("button", undefined, "OK", { name: "ok" });
cancelBtn.preferredSize.width = 80; okBtn.preferredSize.width = 80;
// FIXED: Preview function with proper initial handling
function previewChanges() {
if (CFG.is2020 || !isPreview.value) return;
try {
var doc = app.activeDocument;
var abIdx = doc.artboards.getActiveArtboardIndex();
var ab = doc.artboards[abIdx];
var top_pt = parseValueWithUnit(topInput.text), bottom_pt = parseValueWithUnit(bottomInput.text),
left_pt = parseValueWithUnit(leftInput.text), right_pt = parseValueWithUnit(rightInput.text),
cols = parseInt(colInput.text), rows = parseInt(rowInput.text),
vertGutter_pt = parseValueWithUnit(vertGutterInput.text), horGutter_pt = parseValueWithUnit(horGutterInput.text),
baselineStart_pt = parseValueWithUnit(baselineStartInput.text), baselineInc_pt = parseValueWithUnitPt(baselineIncInput.text);
if (isNaN(top_pt) || isNaN(bottom_pt) || isNaN(left_pt) || isNaN(right_pt) ||
isNaN(cols) || isNaN(rows) || isNaN(vertGutter_pt) || isNaN(horGutter_pt) ||
isNaN(baselineStart_pt) || isNaN(baselineInc_pt) || top_pt < 0 || bottom_pt < 0 || left_pt < 0 ||
right_pt < 0 || cols < 0 || rows < 0 || vertGutter_pt < 0 || horGutter_pt < 0 || baselineInc_pt < 0) { return; }
cols = Math.min(cols, 20); rows = Math.min(rows, 20);
var check = checkGridFit(abIdx, top_pt, bottom_pt, left_pt, right_pt, cols, rows, vertGutter_pt, horGutter_pt);
if (check.failCol) vertGutter_pt = mmToPt(defaults.VertGutter);
if (check.failRow) horGutter_pt = mmToPt(defaults.HorGutter);
if (previewUndoCount > 0) {
app.undo();
previewUndoCount = 0;
}
var marginsLayer = findLayer(doc, "Margins and Columns");
var wasLockedMargins = false;
if (!marginsLayer) { marginsLayer = doc.layers.add(); marginsLayer.name = "Margins and Columns"; }
else { wasLockedMargins = marginsLayer.locked; }
marginsLayer.locked = false; marginsLayer.visible = true;
var baselineLayer = findLayer(doc, "Baseline");
var wasLockedBaseline = false;
if (baselineLayer) { wasLockedBaseline = baselineLayer.locked; baselineLayer.locked = false; }
removePathsForArtboard(marginsLayer, abIdx);
if (baselineLayer) removePathsForArtboard(baselineLayer, abIdx);
addMarginsAndColumnsToLayer(marginsLayer, ab, abIdx, top_pt, bottom_pt, left_pt, right_pt, cols, vertGutter_pt, rows, horGutter_pt);
if (baselineInc_pt > 0) {
if (!baselineLayer) {
baselineLayer = doc.layers.add(); baselineLayer.name = "Baseline"; wasLockedBaseline = false;
}
baselineLayer.visible = true;
addBaselineGridToLayer(baselineLayer, ab, abIdx, top_pt, bottom_pt, left_pt, right_pt, baselineStart_pt, baselineInc_pt);
}
if (baselineLayer && baselineLayer.pathItems.length === 0) {
baselineLayer.remove(); baselineLayer = null;
}
if (marginsLayer.pathItems.length === 0) {
marginsLayer.remove(); marginsLayer = null;
}
// FIXED: Handle locking properly for initial vs subsequent previews
if (!isCommittingPreview) {
if (isInitializing) {
// For initial preview, we want layers to end up locked
if (marginsLayer) marginsLayer.locked = true;
if (baselineLayer) baselineLayer.locked = true;
} else {
// For subsequent previews, restore the original lock state
if (marginsLayer) marginsLayer.locked = wasLockedMargins;
if (baselineLayer) baselineLayer.locked = wasLockedBaseline;
}
}
app.redraw();
previewUndoCount = 1;
} catch (err) {}
}
function debouncedPreview() {
if (previewDebounceTimer) {
previewDebounceTimer.cancel();
}
previewDebounceTimer = app.setTimeout(function() {
previewChanges();
}, 300);
}
function setupInputListeners(input) {
input.onChanging = function() {
if (isPreview.value) debouncedPreview();
};
input.onChange = function() {
if (isPreview.value) {
if (previewDebounceTimer) {
previewDebounceTimer.cancel();
}
previewChanges();
}
};
}
setupInputListeners(topInput);
setupInputListeners(bottomInput);
setupInputListeners(leftInput);
setupInputListeners(rightInput);
setupInputListeners(colInput);
setupInputListeners(rowInput);
setupInputListeners(vertGutterInput);
setupInputListeners(horGutterInput);
setupInputListeners(baselineStartInput);
setupInputListeners(baselineIncInput);
isPreview.onClick = function() {
if (isPreview.value) {
previewChanges();
} else {
if (previewUndoCount > 0) {
app.undo();
previewUndoCount = 0;
app.redraw();
}
}
};
cancelBtn.onClick = function() {
if (previewUndoCount > 0) {
app.undo();
previewUndoCount = 0;
}
w.close();
};
w.onClose = function () {
// Do nothing - Cancel button handles all cleanup
};
okBtn.onClick = function() {
var top_pt = parseValueWithUnit(topInput.text),
bottom_pt = parseValueWithUnit(bottomInput.text),
left_pt = parseValueWithUnit(leftInput.text),
right_pt = parseValueWithUnit(rightInput.text),
cols = parseInt(colInput.text), rows = parseInt(rowInput.text),
vertGutter_pt = parseValueWithUnit(vertGutterInput.text),
horGutter_pt = parseValueWithUnit(horGutterInput.text),
baselineStart_pt = parseValueWithUnit(baselineStartInput.text),
baselineInc_pt = parseValueWithUnitPt(baselineIncInput.text);
if (isNaN(top_pt) || isNaN(bottom_pt) || isNaN(left_pt) || isNaN(right_pt) ||
isNaN(cols) || isNaN(rows) || isNaN(vertGutter_pt) || isNaN(horGutter_pt) ||
isNaN(baselineStart_pt) || isNaN(baselineInc_pt) ||
top_pt < 0 || bottom_pt < 0 || left_pt < 0 || right_pt < 0 ||
cols < 0 || rows < 0 || vertGutter_pt < 0 || horGutter_pt < 0 || baselineInc_pt < 0) {
alert("Please enter valid (non-negative) numbers. Baseline increment can be 0 to skip baseline grid."); return;
}
var abIndices = [];
if (applyAllChk.value) for (var i = 0; i < doc.artboards.length; i++) abIndices.push(i);
else abIndices.push(abIdx);
previewUndoCount = 0;
var vertGutterOverride = {}, horGutterOverride = {}, warnedCol = false, warnedRow = false;
for (var i = 0; i < abIndices.length; i++) {
var check = checkGridFit(abIndices[i], top_pt, bottom_pt, left_pt, right_pt, cols, rows, vertGutter_pt, horGutter_pt);
if (check.failCol) { if (!warnedCol) alert("Column/gutter combination doesn't fit on at least one artboard. Vertical gutter is reset to default."), warnedCol = true;
vertGutterOverride[abIndices[i]] = mmToPt(defaults.VertGutter); }
if (check.failRow) { if (!warnedRow) alert("Row/gutter combination doesn't fit on at least one artboard. Horizontal gutter is reset to default."), warnedRow = true;
horGutterOverride[abIndices[i]] = mmToPt(defaults.HorGutter); }
}
if (applyAllChk.value) {
deleteLayerByExactName(doc, "Margins and Columns");
deleteLayerByExactName(doc, "Baseline");
}
var marginsLayer = findLayer(doc, "Margins and Columns");
var baselineLayer = findLayer(doc, "Baseline");
var current_pt = {
top: top_pt, bottom: bottom_pt, left: left_pt, right: right_pt,
columns: cols, rows: rows, vertGutter: vertGutter_pt, horGutter: horGutter_pt,
baselineStart: baselineStart_pt, baselineInc: baselineInc_pt
};
for (var k = 0; k < abIndices.length; k++) {
var idx = abIndices[k];
var thisVertGutter_pt = vertGutterOverride[idx] !== undefined ? vertGutterOverride[idx] : vertGutter_pt;
var thisHorGutter_pt = horGutterOverride[idx] !== undefined ? horGutterOverride[idx] : horGutter_pt;
var ab = doc.artboards[idx];
var updateMargins = applyAllChk.value || isMarginsChanged(current_pt, loaded_pt) ||
!marginsLayer || !hasPathsForArtboard(marginsLayer, idx);
if (updateMargins) {
if (!marginsLayer) { marginsLayer = doc.layers.add(); marginsLayer.name = "Margins and Columns"; }
marginsLayer.locked = false; marginsLayer.visible = true;
removePathsForArtboard(marginsLayer, idx);
addMarginsAndColumnsToLayer(marginsLayer, ab, idx, top_pt, bottom_pt, left_pt, right_pt,
cols, thisVertGutter_pt, rows, thisHorGutter_pt);
}
var updateBaseline = applyAllChk.value || isBaselineChanged(current_pt, loaded_pt) ||
(baselineInc_pt > 0 && (!baselineLayer || !hasPathsForArtboard(baselineLayer, idx))) ||
(baselineInc_pt === 0 && baselineLayer && hasPathsForArtboard(baselineLayer, idx));
if (updateBaseline) {
if (!baselineLayer) baselineLayer = findLayer(doc, "Baseline");
if (baselineInc_pt > 0) {
if (!baselineLayer) { baselineLayer = doc.layers.add(); baselineLayer.name = "Baseline"; }
baselineLayer.locked = false; baselineLayer.visible = true;
removePathsForArtboard(baselineLayer, idx);
addBaselineGridToLayer(baselineLayer, ab, idx, top_pt, bottom_pt, left_pt, right_pt,
baselineStart_pt, baselineInc_pt);
} else {
if (baselineLayer) {
baselineLayer.locked = false;
removePathsForArtboard(baselineLayer, idx);
var hasOtherPaths = false;
for (var p = 0; p < baselineLayer.pathItems.length; p++) {
var pathNote = baselineLayer.pathItems[p].note || "";
if (pathNote.indexOf(" ab") === 0 && pathNote.indexOf(" ab" + idx + " ") !== 0) { hasOtherPaths = true; break; }
}
if (!hasOtherPaths && baselineLayer.pathItems.length === 0) {
baselineLayer.remove(); baselineLayer = null;
}
}
}
}
}
marginsLayer = cleanupEmptyLayer(doc, "Margins and Columns");
baselineLayer = cleanupEmptyLayer(doc, "Baseline");
if (marginsLayer) marginsLayer.locked = true;
if (baselineLayer) baselineLayer.locked = true;
for (var k = 0; k < abIndices.length; k++) {
var idx = abIndices[k];
var valuesToSave = {
Top: addDefaultUnit(topInput.text, "margin"),
Bottom: addDefaultUnit(bottomInput.text, "margin"),
Left: addDefaultUnit(leftInput.text, "margin"),
Right: addDefaultUnit(rightInput.text, "margin"),
Columns: addDefaultUnit(colInput.text, "number"),
Rows: addDefaultUnit(rowInput.text, "number"),
VertGutter: addDefaultUnit(vertGutterInput.text, "gutter"),
HorGutter: addDefaultUnit(horGutterInput.text, "gutter"),
BaselineStart: addDefaultUnit(baselineStartInput.text, "margin"),
BaselineInc: addDefaultUnit(baselineIncInput.text, "baseline")
};
if (vertGutterOverride[idx] !== undefined) valuesToSave.VertGutter = defaults.VertGutter.toString() + "mm";
if (horGutterOverride[idx] !== undefined) valuesToSave.HorGutter = defaults.HorGutter.toString() + "mm";
saveSettingsToXML(settingsXMLPath, idx, valuesToSave);
}
w.close();
};
function checkGridFit(abIdx, t_pt, b_pt, l_pt, r_pt, c, r, vg_pt, hg_pt) {
var rect = doc.artboards[abIdx].artboardRect;
var artW = rect[2] - rect[0] - l_pt - r_pt,
artH = rect[1] - rect[3] - t_pt - b_pt;
var minW = mmToPt(1), minH = mmToPt(1), failCol = false, failRow = false;
if (c > 1) {
var gutW = (c - 1) * vg_pt;
if (artW <= gutW || (artW - gutW)/c < minW) failCol = true;
}
if (r > 1) {
var gutH = (r - 1) * hg_pt;
if (artH <= gutH || (artH - gutH)/r < minH) failRow = true;
}
return {failCol: failCol, failRow: failRow};
}
// FIXED: Proper initialization that results in locked layers with 1 undo
if (!CFG.is2020) {
var existingBaselineLayer = findLayer(doc, "Baseline");
if (existingBaselineLayer) {
existingBaselineLayer.locked = false;
removePathsForArtboard(existingBaselineLayer, abIdx);
}
isPreview.value = true;
isInitializing = true; // Mark as initializing
previewChanges(); // This creates guides and locks layers properly
isInitializing = false; // Clear the flag
}
w.center(); w.show();
}
showMarginsDialog();
any help would be great
best
smyth
AdChoices
