script to place 1pt key lines inside a document at specified positions

Question

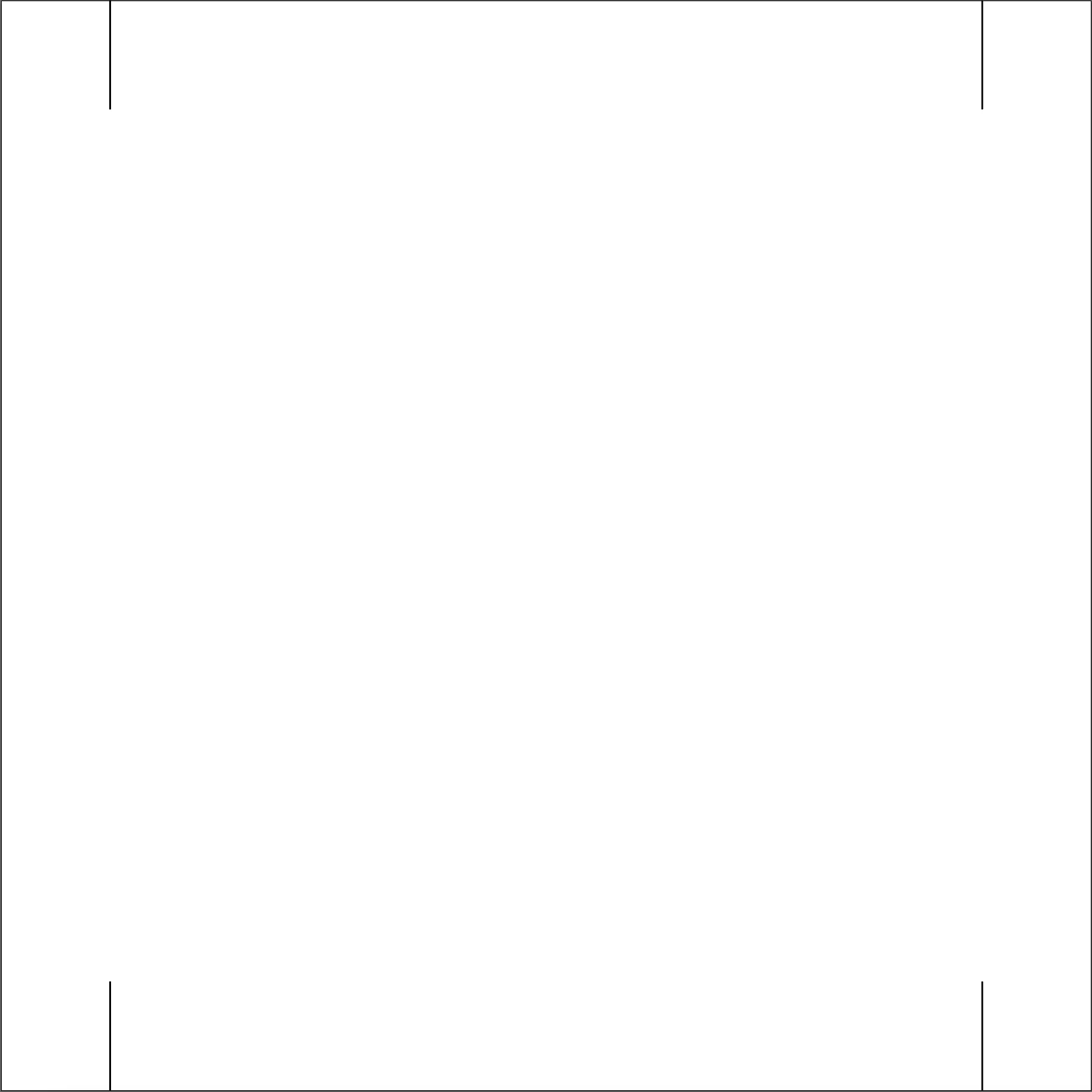

I'm trying to make a script that will insert a 1pt thick keyline at a user specified distance form the outside of all corners of the artboard, either 1" or 2 " long. I've been trying using chatgpt but it just can't get the keyline inside the artboard. I tried using just one keyline, but would need it on all 4 corners of the document, as per the attached simplified proof. I don't know if it would make any difference or not, but some of these documents will be using the larger artboard (ofetn theyre around 600" w x 100" h)

The last code before I got too frustrated is:

// Function to convert inches to Illustrator points (72 points per inch)
function inchesToPoints(inches) {
return inches * 72;
}

// Function to create a 1pt black keyline inside the visible area of the artboard
function createKeyline(positionInInches, heightInInches) {
var doc = app.activeDocument;
var activeArtboard = doc.artboards[doc.artboards.getActiveArtboardIndex()];
var artboardRect = activeArtboard.artboardRect; // Artboard bounds

// Convert position and height to points
var positionInPoints = inchesToPoints(positionInInches);
var heightInPoints = inchesToPoints(heightInInches);

// Calculate positions for the keyline
var xPosition = artboardRect[0] + positionInPoints; // X position for the vertical line
var topPosition = artboardRect[1] + 1; // Top position inside artboard
var bottomPosition = topPosition + heightInPoints; // Bottom position

// Ensure the xPosition stays within the artboard bounds
if (xPosition < artboardRect[0]) {
xPosition = artboardRect[0];
} else if (xPosition > artboardRect[2]) {
xPosition = artboardRect[2];
}

// Create a new path item for the keyline
var keylinePath = doc.pathItems.add();
keylinePath.setEntirePath([
[xPosition, topPosition],
[xPosition, bottomPosition]
]);

// Style the keyline (black stroke, 1pt width)
keylinePath.stroked = true;
keylinePath.strokeWidth = 1; // 1pt stroke width
keylinePath.strokeColor = doc.swatches.getByName("Black").color;
}

// Prompt user for position and height
function promptForKeylineDetails() {
var position = parseFloat(prompt("Enter position in inches from left or right:", "1.0"));
var height = parseFloat(prompt("Enter height of the keyline in inches (1 or 2):", "1.0"));

// Check if valid input
if (!isNaN(position) && !isNaN(height) && (height === 1 || height === 2)) {
createKeyline(position, height);
} else {
alert("Invalid input. Please enter valid numbers (position in inches and height as 1 or 2 inches).");
}
}

// Run the script
promptForKeylineDetails();

m1b · Accepted Answer

Here's a real quick go:

(function () {

    var doc = app.activeDocument,
        docScale = doc.scaleFactor;

    // Function to convert inches to Illustrator points (72 points per inch)
    function inchesToPoints(inches) {
        return inches * 72 / doc.scaleFactor;
    }

    // Function to create a 1pt black keyline inside the visible area of the artboard
    function createKeylines(xOffsetInches, lengthInches) {

        var activeArtboard = doc.artboards[doc.artboards.getActiveArtboardIndex()];
        var artboardRect = activeArtboard.artboardRect; // Artboard bounds

        // Convert position and height to points
        var xOffset = inchesToPoints(xOffsetInches);
        var yOffset = inchesToPoints(lengthInches);

        // Calculate positions for the keyline
        var x1 = artboardRect[0] + xOffset;
        var x2 = artboardRect[2] - xOffset;
        var topY1 = artboardRect[1];
        var topY2 = topY1 - yOffset;
        var bottomY1 = artboardRect[3] + yOffset;
        var bottomY2 = artboardRect[3];

        // top two lines
        drawLine([x1, topY1], [x1, topY2]);
        drawLine([x2, topY1], [x2, topY2]);

        // bottom two lines
        drawLine([x1, bottomY1], [x1, bottomY2]);
        drawLine([x2, bottomY1], [x2, bottomY2]);

    }

    // Prompt user for position and height
    function promptForKeylineDetails() {
        var position = parseFloat(prompt("Enter position in inches from left or right:", "1.0"));
        var height = parseFloat(prompt("Enter height of the keyline in inches (1 or 2):", "1.0"));

        // Check if valid input
        if (!isNaN(position) && !isNaN(height) && (height === 1 || height === 2)) {
            createKeylines(position, height);
        } else {
            alert("Invalid input. Please enter valid numbers (position in inches and height as 1 or 2 inches).");
        }
    }

    function drawLine(p1, p2) {
        // Create a new path item for the keyline
        var keylinePath = doc.pathItems.add();
        keylinePath.setEntirePath([p1, p2]);

        // Style the keyline (black stroke, 1pt width)
        keylinePath.stroked = true;
        keylinePath.strokeWidth = 1 / doc.scaleFactor; // 1pt stroke width
        keylinePath.strokeColor = doc.swatches.getByName("Black").color;
    };

    // Run the script
    promptForKeylineDetails();

})();

Edit 2024-06-21: added doc.scaleFactor to calculations to handle large artboards.

Kurt Gold · Answer

You may also try Sergey Anosov's MakeCropMarks script. It's pretty versatile, but currently it is also not prepared for large canvas documents. You would have to tweak it.
