Selection Tool not working on some images

  • October 29, 2019
  • 5 replies
  • 8371 views

I am trying to arrange some embedded images in Illustrator to create a pattern. Using the Selection tool, I am able to click on all the images to move them, except for one. All the images are PNGs that were created the same way, placed in Illustrator, and then embedded. I have tried to delete the image and place/embed it again, but I still cannot select it with the Selection tool unless I move my cursor to the edge of the bounding box and select the bounding box, or unless I click and drag over the image to select it. Once it's been selected, I still have to move the image by clicking right on the bounding box edge to do so. This is obviously frustrating, as it inhibits workflow because of A) not being able to remember which specific image I have to be so specific about and B) when the image overlaps other images, I could easily click on the wrong thing if not being super precise and careful.



I have checked my Selection & Anchor Display prefences, and the "Object Selection by Path Only" is not checked. I have restarted my computer 3x and it is still doing this, and I have recently updated my Illustrator.



**EDIT: I just realized there is actually another image that this is now happening with in the same file.

***SECOND EDIT: I get the names of Direct Selection and Selection tool confused all the time. I have been using the Selection tool.

5 replies

marcg68495176
Inspiring
March 23, 2024

I regularly encounter this problem with embedded images. i am unable to select them by clicking anywhere on the image. the only way that works is to select the bounding box edge which isn't apparent outside of outline mode when using images with transparent backgrounds.  unembedding the image returns selection to its normal behaviour. quite frustrating.

Monika Gause
Community Expert
Community Expert
March 23, 2024

Please show a screenshot that has the image and the layers panel in it. Layer panel must be open so we can see the image in it.

marcg68495176
Inspiring
March 24, 2024

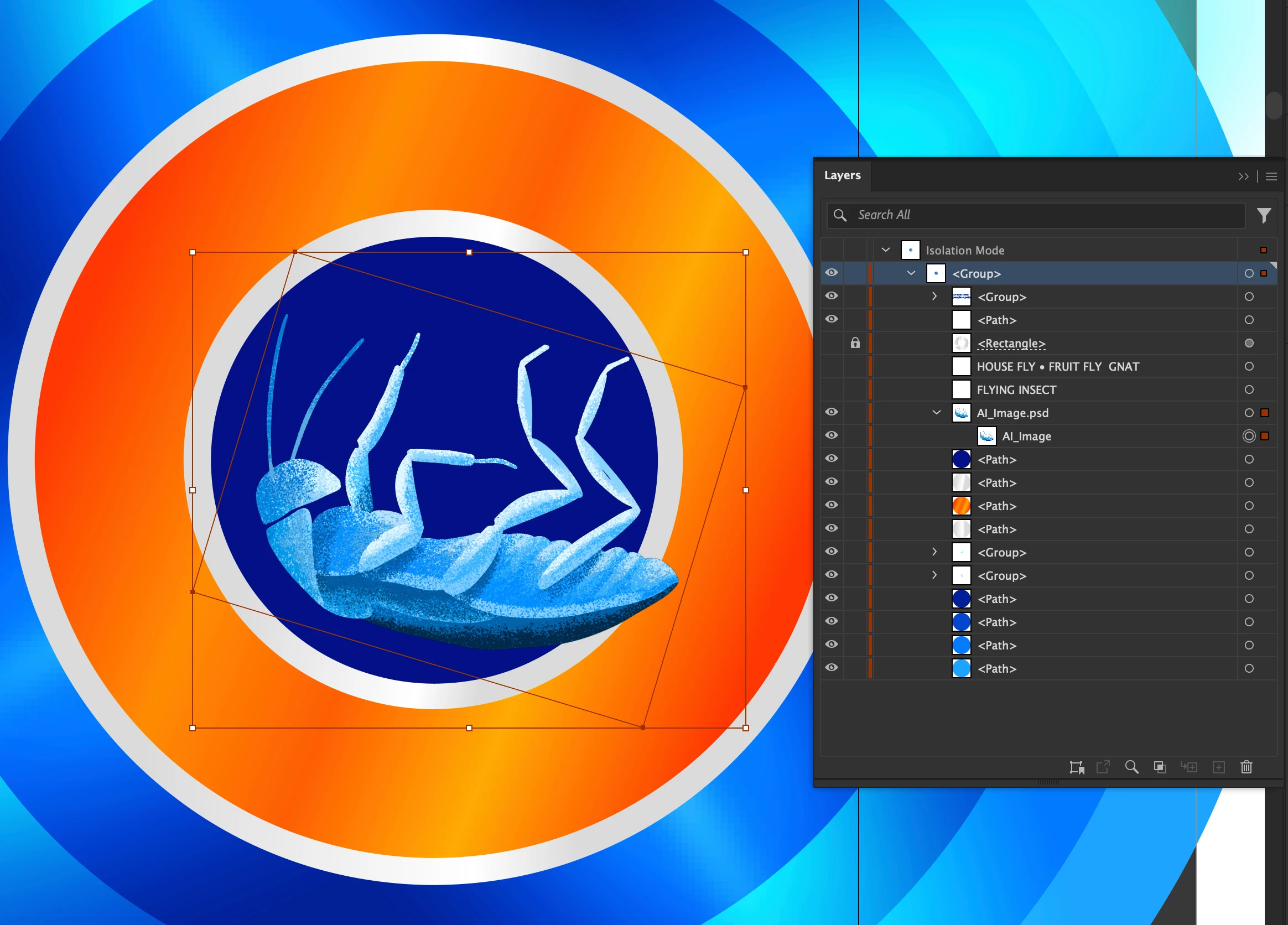

Screenshot_2024-03-23_at_9-12-18 PM.png
Participant
January 12, 2023

Hi, I just recently have the same issue. I tried several methods here but the issue are still the same. What i noticed is that if the PNG image size is large lets say 4000x4000 px and you resize it to 100x100 px in illustrator, it will show this problem, but if you resize the image to 100x100px in photoshop and placed it in illustrator, you will be able to select anywhare in the image. Hope this method works for you.

Inspiring
September 11, 2020

I found this post looking for the answer to this same issue. There was no solution here, so I experimented more with what I have. I'm not sure if this is a solution to this issue everytime, but I found what was causing it in my situation.

I placed two images that are 900x900(px). I was unable to select them except for by clicking exactly on the border. Also, unable to move them except by clicking on the border.

The images were 900x900(px), 900"x900" at 1ppi. I opened the images in photoshop and resized them to 900x900(px), 3"x3" at 300ppi. When I switched back to Illustrator the links updated and I was then able to manipulate them normally.

Participant
March 27, 2024

This worked for me. Thank you!



Monika Gause
Community Expert
Community Expert
October 30, 2019

Probably there is a clipping mask applied to it. Can you open the layers panel and check that? And if so you can release the mask.

maa3762Author
Participating Frequently
October 30, 2019

There is no clipping mask applied. It is just an image, and in the layers panel, when selected, it is just an image, not a group or clip group.

Sebastian Bleak
Community Expert
Community Expert
October 30, 2019

Have you tried using the Selection Tool (black arrow) instead of the Direct Selection Tool? I'm wondering if that will get you what you need. Also, can you select the image and take a screen shot for us to see?

maa3762Author
Participating Frequently
October 30, 2019

I'm so sorry, I get the names confused! I am using the selection tool.
