Some of my corner radiuses show, some do not?

Forum|Forum|4 years ago
November 4, 2021
1 respuesta
529 visualizaciones

Hello All.

I've had this issue for a while.

I have a handful of objects and lines in my artboard. If I pick on one object my corner radiuses show up just find. However if I pick another object... the corner radiuses do not show. Does anyone know why this is happening?

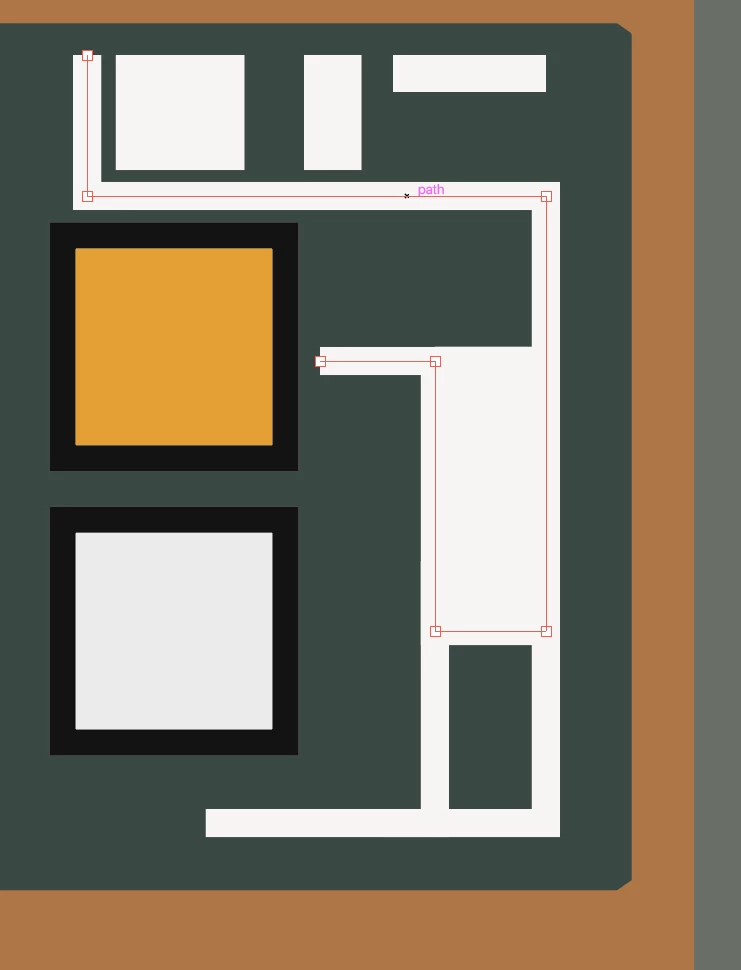

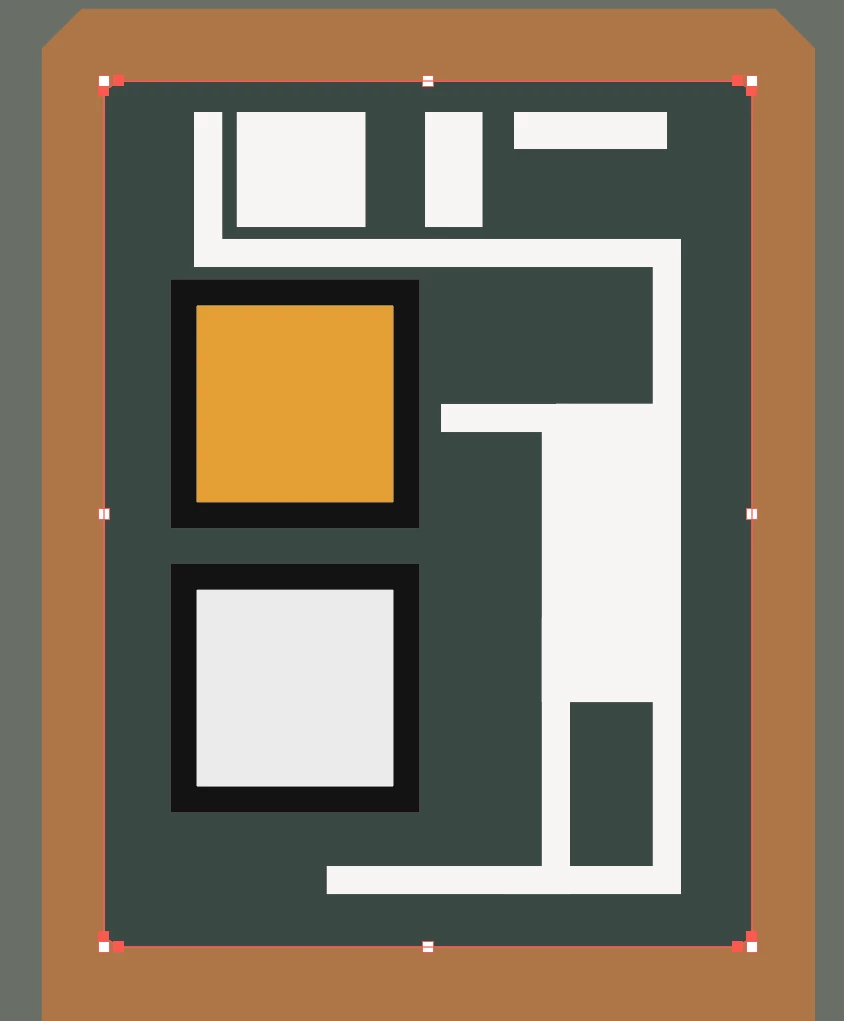

Shonw below... if I pick the white path, I get no radius options... if I pick the olive drab box, I have radius options.... I find that odd.

Tools

Este tema ha sido cerrado para respuestas.

Mejor respuesta de Ton Frederiks

Click on the line with the Selection tool and switch to the Direct selection tool.

Or alt-click an anchor point with the Direct selection tool.

Ton Frederiks

Community Expert

What happens if you click an anchor point with the Direct Selection tool?

Franky SpillsAutor

Known Participant

If I select the line, then select an anchor point with the direct selection tool the corner radius pops up and I can radius just fine. However I want to be able to adjust them all simultaneously... and AI will not allow me to do that.

Normally if i create a shape. I can select it, switch the the direct selection tool and all the coner radiuses will appear. However, recetly, if I create a line... i have to adjust the corners indiviually. That could mean anywhere up to 10-15 anchor points per line I'm making which is time consuming.

Thanks.

Ton Frederiks

Respuesta

Community Expert

Click on the line with the Selection tool and switch to the Direct selection tool.

Or alt-click an anchor point with the Direct selection tool.
