Stipple one colour print 40% how to achieve

  • November 15, 2018
  • 2 replies
  • 2202 views

Hi there

I am trying to figure out how to create a 40% coverage for a one colour print. Printers have asked for 40% coverage (they call it stipple). I thought perhaps it was halftone but I can't figure out how to specify % wise.

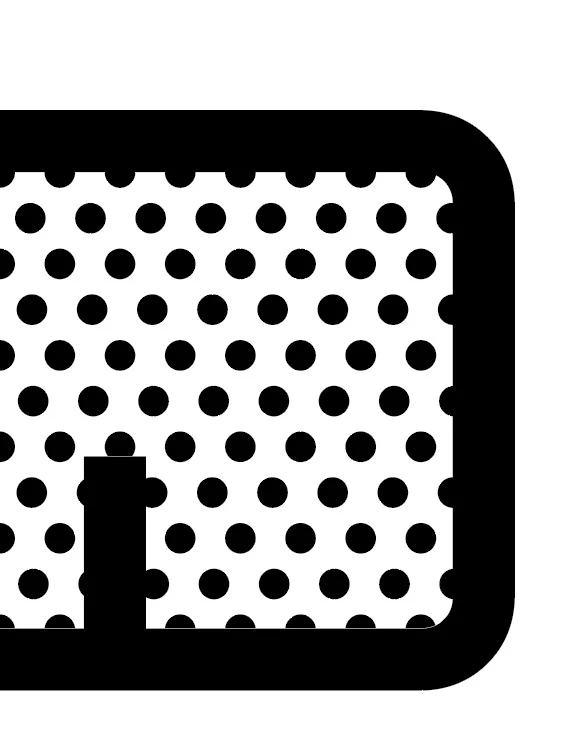

I had originally created a dot pattern but I am unable to know if the % is correct.

Thank you

    This topic has been closed for replies.
    Correct answer Ton Frederiks

    Hi Ton Frederiks,

    thanks for reply can you send me a Screen Shoot or upload any jpg file so i will follow your instruction please.



    thanks


    I added from the Swatches panel the Patterns > Basic Graphics > Basic Graphics Dots > 6 dpi 40% pattern to my swatches.

    Dragged that pattern to the artboard.

    Created a 4 mm circle and gave it a red color.

    Copied off the black dots from the pattern, brought it to the front and aligned the center with the red dot.

    Select both dots and zoomed in as much as possible while still seeing both edges from the red and black dots.

    Selected the black dot and double clicked the Scale tool.

    I had to scale the black dot 118,1 % to scale it to the size of the red dot.

    When you select the pattern item you dragged from the Swatches panel, scale it 118,1%  and drag it back the the Swatches panel, you will have created a 40% 4mm dot pattern.

    2 replies

    P
    packaging specialist
    Inspiring
    April 15, 2024

    Are you sure this is what the printer expects?

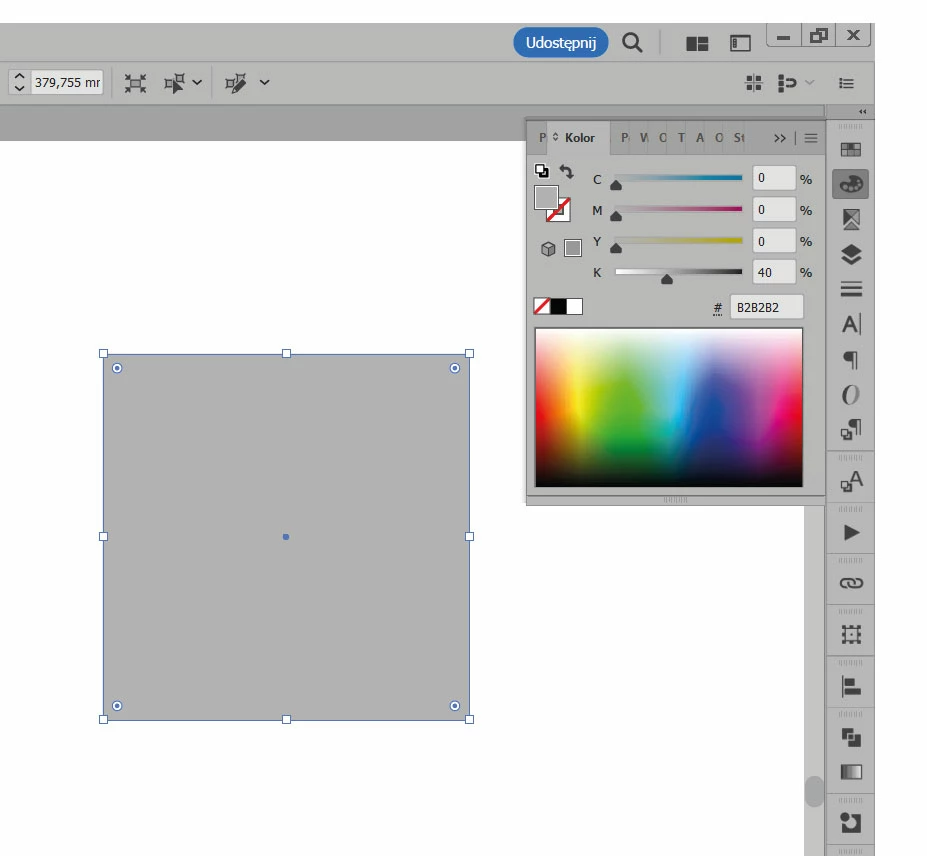

    Maybe it's just the 40% tint.
    Look at the screenshot.



    hazrat36733985va50
    hazrat36733985va50
    Participating Frequently
    April 15, 2024

    thanks for reply

    i will copy and past my client Email Down so can you check it please.



    Can you kindly ask someone to make a drawing (no samples) for a 40% coverage dot matrix 4mm



    you can see that he required 40% coverage dot dia with size 4mm.

    Monika Gause
    Community Expert
    Monika GauseCommunity Expert
    Community Expert
    April 15, 2024

    There is a 40% dot matry pattern in the pattern swatches. You could apply it, then measure the dot, then calculate how much it needs to get scales in order to have 4 mm dots.



    Question remaines: nobody knows which printing process the 40% coverage of the pattern in the swatches  relates to. Same goes for your request. How will anyone determine if the dot pattern is really 40%? Which criteria is that based on?

    barbara_a7746676
    Community Expert
    barbara_a7746676Community Expert
    Community Expert
    November 15, 2018

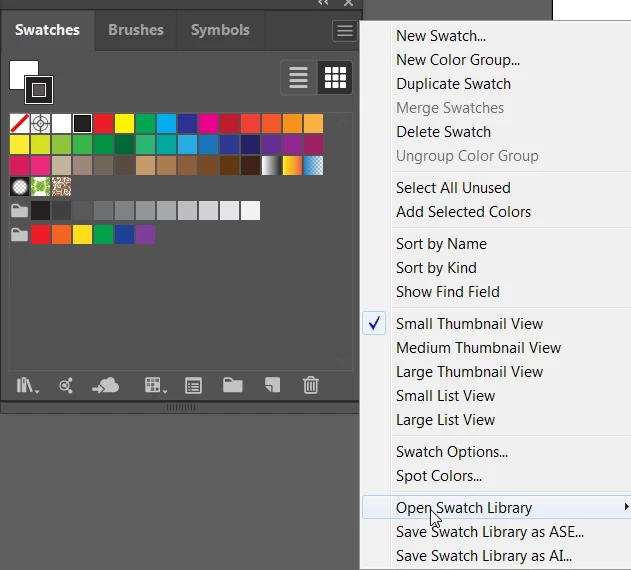

    In Illustrator, open the Swatches panel. In the Swatches menu, choose Open Swatch Library.

    In the submenu, choose Patterns > Basic Graphics > Basic Graphics_Dots.

    There you will find a 40% dot pattern that you can use.

    K
    karmatron12Author
    Participant
    November 15, 2018

    Hey Barbara

    Thanks for that - How do I specify the size of the dots though?

    I have found the 40% swatch but the DPI is 6, I am needing to get them a lot smaller as the object I am filling is only 14mm wide.

    Thank you

    barbara_a7746676
    Community Expert
    barbara_a7746676Community Expert
    Community Expert
    November 15, 2018

    It's a pattern, and therefore you can scale the pattern without having to scale the object.

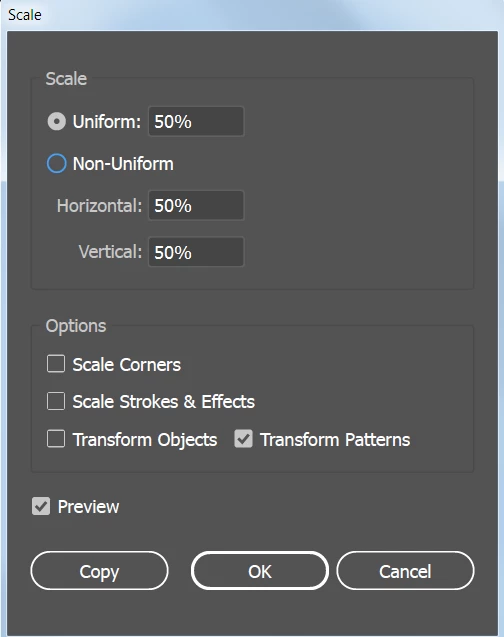

    Select the object. Double-click on the Scale tool right in the Tools panel to open the Scale dialog box.

    Enter a uniform scale. Remove the check mark from Transform Objects and put a check mark on Transform Patterns.
