Trying to figure out if a curved path can constitute a portion of a perfect circle

Femke, Sergey, Mark,

I knew that Eduard was after a scripting solution, but I had a look at how I should prefer to do it.

And then I wondered how close that would be to a scripting solution.

If I needed to find out for a few curves, my choice would be to just draw the few simple bits (using Smart Guides, Line Segment Tool, Document Info, Transform palette) and let Illy make the calculations and measurements for my assessment, much like the proof of the pudding, or the duck.

The images show the way I chose, working on a copy that was rotated to have the end Anchor Points aligned horizontally, and:

Optionally looking at the two Handles H1 and H2 in red hopefully identical (within a reasonable limit) length and W/B and/or

Crucially looking at the three hopefully identical (within a reasonable limit) values of the radius, R1, R2, RM in red, the latter being enough I believe as the proof of the pudding/duck.

RM is needed because L1 = L2 and R1 = R2 also apply for symmetrical parts of ellipses.

Click to see in full, Click again to get closer.

I can see that the (first) two specific scripting approaches are related to that.

Am I right in believing that the scripting solutions rely on there being only the two end Anchor Points as in the cases stated by Eduard (or H1 and H2 would almost always have different lengths)?

For the drawn solution H1 and H2 could have different lengths, and the R1, R2, RM part would still work in the general case with a third Anchor Point (as in some cases where the curved path was cut out from an actual circle (to be reestablished) in the first place.

My thinking was similar to @m1b , except I wasted my time doing the math long hand.  As far as I can tell, the math is correct, any desired result depending on the tolerance (line 1).

var tolerance = 1;  // points
var doc = app.activeDocument;
var pathItems = doc.selection;
for (var i = 0; i < pathItems.length; i++) {
    main(pathItems[i])
}

function main(pathItem) {
    var points = pathItem.pathPoints;
    var P0 = points[0].anchor;
    var P1 = points[0].rightDirection;
    var P2 = points[1].leftDirection;
    var P3 = points[1].anchor;

    // handles, i.e. distances between (1) P0 and P1 and (2) P2 and P3
    var handle1 = Math.sqrt(
        (P0[0] - P1[0]) * (P0[0] - P1[0]) + (P0[1] - P1[1]) * (P0[1] - P1[1])
    );
    var handle2 = Math.sqrt(
        (P2[0] - P3[0]) * (P2[0] - P3[0]) + (P2[1] - P3[1]) * (P2[1] - P3[1])
    );

    // theta / 2 is angle between handle and line between anchors
    var opposite1 = P1[1] - P0[1];
    var adjacent1 = P1[0] - P0[0];
    var angle1 = Math.atan2(opposite1, adjacent1);
    var opposite2 = P3[1] - P0[1];
    var adjacent2 = P3[0] - P0[0];
    var angle2 = Math.atan2(opposite2, adjacent2);
    var theta = (angle1 - angle2) * 2;
    if (opposite2 < 0) {
        theta = theta * -1;
    }

    // radii, if arc were circular
    var alpha = 4 / 3 * Math.tan(theta / 4);
    var R = handle1 / alpha;

    // midpoint of curve
    var M = [
        (P0[0] + 3 * P1[0] + 3 * P2[0] + P3[0]) / 8,
        (P0[1] + 3 * P1[1] + 3 * P2[1] + P3[1]) / 8
    ];

    // midpoint of line between anchors
    var Q = [(P0[0] + P3[0]) / 2, (P0[1] + P3[1]) / 2];

    // centre of circle
    var opposite = R * Math.sin(theta / 2);
    var adjacent = R * Math.cos(theta / 2);
    var dx1 = Q​[0] - P0[0];
    var dy1 = Q[1] - P0[1];
    var angle1 = Math.atan(dx1 / dy1​);
    var angle2 = Math.PI / 2 - angle1;
    var dx2 = adjacent * Math.sin(angle2);
    var dy2 = adjacent * Math.cos(angle2);
    var O = [Q[0] + dx2, Q[1] - dy2];

    // distances between M and O
    var MO = Math.sqrt(
        (M[0] - O[0]) * (M[0] - O[0]) + (M[1] - O[1]) * (M[1] - O[1])
    );

    // true radii
    R1 = Math.sqrt(
        (O[0] - P0[0]) * (O[0] - P0[0]) + (O[1] - P0[1]) * (O[1] - P0[1])
    );
    R2 = Math.sqrt(
        (O[0] - P3[0]) * (O[0] - P3[0]) + (O[1] - P3[1]) * (O[1] - P3[1])
    );

    if (areEqual(R1, MO) &&
        areEqual(R2, MO)) {
            var circle = doc.pathItems.ellipse(
                O[1] + R, O[0] - R, R * 2, R * 2
            );
            circle.zOrder(ZOrderMethod.SENDTOBACK);
            circle.strokeColor = doc.swatches["Black"].color;
            circle.filled = false;
    }

    function areEqual(a, b) {
        return Math.abs(a - b) < tolerance;
    }
}

Hi all, I got intrigued by this problem.

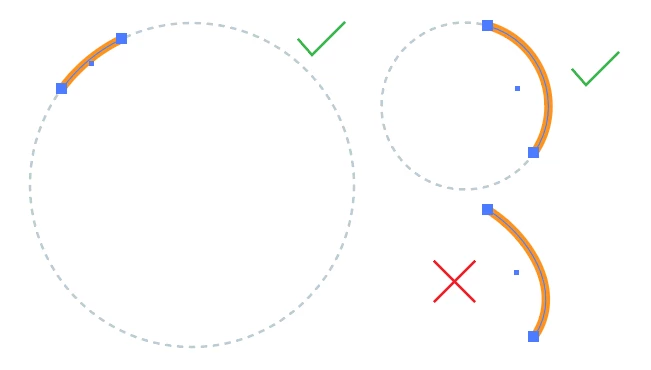

My idea to solve it is to find the intersection of a ray normal (perpendicular to the tangent) to the start and end points of the path segment. If the segment is circular, then the distance from the intersection and the start and end points should be the same (within a tolerance value). For extra check I test the distance between the halfway point of the segment and the intersection point too. If all good, we draw a circle centred on the intersection point.

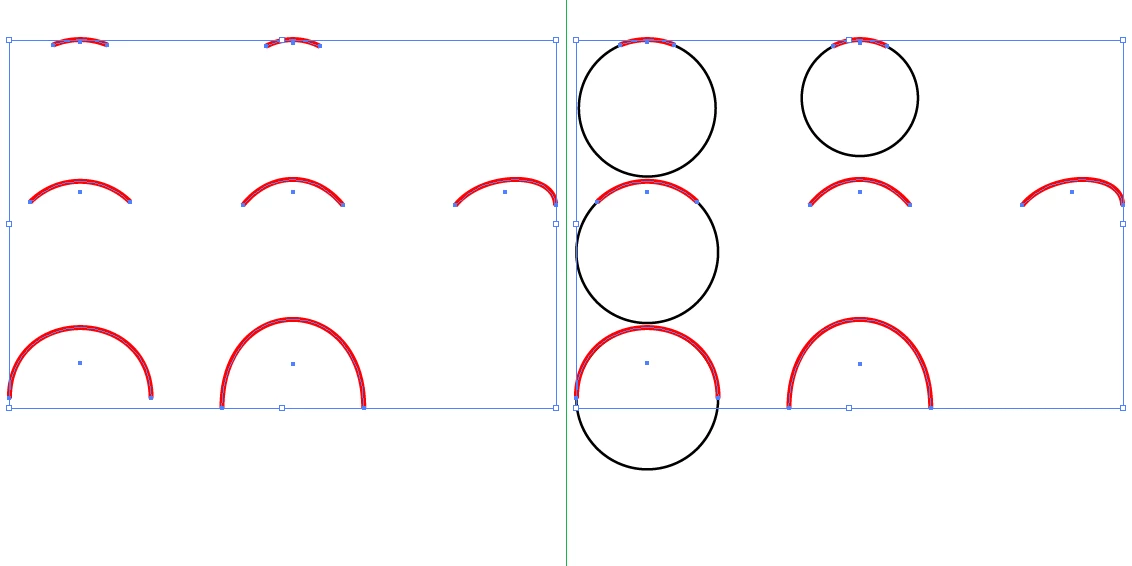

It seems to work! The colored circles are generated by the script:

There are some fiddly bits, such as trying not to draw two almost-identical circles. @Eduard Buta, if this code is useful to you, you almost certainly won't need all of it; just consider it a demonstration. Hope it's useful.

- Mark

/**
 * Demonstration of technique for checking if a path segment
 * is circular, and drawing circles where they are.
 * @author m1b
 * @discussion https://community.adobe.com/t5/illustrator-discussions/trying-to-figure-out-if-a-curved-path-can-constitute-a-portion-of-a-perfect-circle/m-p/14239684
 */
(function () {

    var doc = app.activeDocument;
    drawCirclesForSegments(doc, doc.selection);

})();


/**
 * Draws a circle to match any circular
 * path segments of `pageItems`.
 * @author m1b
 * @version 2023-11-18
 * @param {Document} doc - an Illustrator Document.
 * @param {PageItem|Array<PageItem>} pageItems - Any container of path items.
 * @param {Number} tolerance - the absolute tolerance used to determine if a circle is circular (default: 0.1).
 */
function drawCirclesForSegments(doc, pageItems, tolerance) {

    if (tolerance == undefined)
        tolerance = 0.1;

    var items = getPathItems(pageItems),
        alreadyDrawn = {};

    for (var i = 0; i < items.length; i++) {

        var item = items[i];

        for (var j = 0, len = item.pathPoints.length - 1; j <= len; j++) {

            var p1 = item.pathPoints[j],
                p2 = j < len ? item.pathPoints[j + 1] : item.pathPoints[0];

            // check if the segment is circular
            var circular = segmentIsCircular(p1, p2, tolerance);

            // this gives a rough description of the circle
            // so we can make sure we don't draw it twice
            var sameCircle = stringify(circular, -1);

            if (
                circular == undefined
                || alreadyDrawn[sameCircle] == true
            )
                continue;

            // draw circle
            var circle = drawCircle(doc, circular.center, circular.radius);

            // mark this as drawn already
            alreadyDrawn[sameCircle] = true;

            var isDemo = true;
            if (isDemo)
                // just for demonstration purposes only!
                circle.fillColor = doc.swatches[4 + j].color;

        }

    }

};


/**
 * Stringifier for purposes of
 * differentiating between objects.
 * @author m1b
 * @version 2023-11-18
 * @param {*} obj - the object to stringify
 * @param {Number} precision - the number of decimal places to round numbers, can be negative.
 * @returns {String}
 */
function stringify(obj, precision) {

    if (precision == undefined)
        precision = 0;

    var str = '';
    if (obj == undefined)
        str += obj;

    else if (obj.constructor.name === 'Array')
        for (var i = 0; i < obj.length; i++)
            str += stringify(obj[i], precision);

    else if (obj.constructor.name === 'Object') {

        for (var key in obj)
            if (obj.hasOwnProperty(key))
                str += stringify(obj[key], precision);

    }

    else if (obj.constructor.name === 'Number') {
        str += String(round(obj, precision));
    }

    else
        str += String(obj);

    return str;

};


/**
 * Determines if a segment (PathPoints p1 and p2)
 * is circular. If so, will return the center
 * position and radius of the circle.
 * @author m1b
 * @version 2023-11-18
 * @param {PathPoint} p1 - the first point of the segment.
 * @param {PathPoint} p2 - the last point of the segment.
 * @param {Number} tolerance
 */
function segmentIsCircular(p1, p2, tolerance) {

    if (tolerance == undefined)
        tolerance = 0.1;

    // can't be circular if no control points
    if (
        arraysAreEqual(p1.anchor, p1.rightDirection)
        || arraysAreEqual(p2.anchor, p2.leftDirection)
    )
        return;

    // find the intersection of rays normal to the two anchor points
    var intersectionPoint = bezierIntersection(
        p1.anchor,
        p1.rightDirection,
        p2.leftDirection,
        p2.anchor
    );

    var halfwayPoint = bezierPointAtT(
        p1.anchor,
        p1.rightDirection,
        p2.leftDirection,
        p2.anchor,
        0.5
    );

    // check length between intersection point and of start middle and end points
    var r1 = distanceBetweenPoints(intersectionPoint, p1.anchor),
        r2 = distanceBetweenPoints(intersectionPoint, p2.anchor),
        r3 = distanceBetweenPoints(intersectionPoint, halfwayPoint);

    var isCircle = range([r1, r2, r3]) < tolerance;

    if (isCircle)
        return {
            center: intersectionPoint,
            radius: r2,
        };

};


/**
 * Returns the position of the intersection between
 * rays normal to the start and end of the bezier.
 * @author ChatGPT 3.5 and m1b
 * @param {Array<Number>} p0 - point 1 of bezier curve [x, y].
 * @param {Array<Number>} p1 - point 2 of bezier curve [x, y].
 * @param {Array<Number>} p2 - point 3 of bezier curve [x, y].
 * @param {Array<Number>} p3 - point 4 of bezier curve [x, y].
 * @returns {Array<Number>} - [x, y].
 */
function bezierIntersection(p0, p1, p2, p3) {

    // calculate the normal angles at the start and end of the curve
    var startAngleRad = bezierNormalAngle(p0, p1, p2, p3, 0, false);
    var endAngleRad = bezierNormalAngle(p0, p1, p2, p3, 1, false);

    // calculate the slopes of the lines normal to the start and end points
    var startSlope = Math.tan(startAngleRad + Math.PI / 2);
    var endSlope = Math.tan(endAngleRad + Math.PI / 2);

    // calculate the y intercepts of the lines
    var startYIntercept = p0[1] - startSlope * p0[0];
    var endYIntercept = p3[1] - endSlope * p3[0];

    // calculate the intersection point
    var xIntersection = (startYIntercept - endYIntercept) / (endSlope - startSlope);
    var yIntersection = startSlope * xIntersection + startYIntercept;

    return [xIntersection, yIntersection];

};


/**
 * Returns the position of a point at `t`
 * on the bezier curve (p0,p1,p2,p3).
 * @author ChatGPT 3.5
 * @param {Array<Number>} p0 - point 1 of bezier curve [x, y].
 * @param {Array<Number>} p1 - point 2 of bezier curve [x, y].
 * @param {Array<Number>} p2 - point 3 of bezier curve [x, y].
 * @param {Array<Number>} p3 - point 4 of bezier curve [x, y].
 * @param {Number} t - parameter 0..1 where 0 is start and 1 is end of curve.
 * @returns {Array<Number>} - [x,y].
 */
function bezierPointAtT(p0, p1, p2, p3, t) {

    var u = 1 - t,
        tt = t * t,
        uu = u * u,
        uuu = uu * u,
        ttt = tt * t,

        p = [];

    p[0] = uuu * p0[0] + 3 * uu * t * p1[0] + 3 * u * tt * p2[0] + ttt * p3[0];
    p[1] = uuu * p0[1] + 3 * uu * t * p1[1] + 3 * u * tt * p2[1] + ttt * p3[1];

    return p;

};


/**
 * Returns the normal angle (perpendicular to tangent) at `t`
 * in either radians (default) or degrees.
 * @param {Array<Number>} p0 - point 1 of bezier curve [x, y].
 * @param {Array<Number>} p1 - point 2 of bezier curve [x, y].
 * @param {Array<Number>} p2 - point 3 of bezier curve [x, y].
 * @param {Array<Number>} p3 - point 4 of bezier curve [x, y].
 * @param {Number} t - parameter 0..1 where 0 is start and 1 is end of curve.
 * @param {Boolean} convertToDegrees - whether to convert to degrees (default: false).
 * @returns {Number} - [x,y].
 */
function bezierNormalAngle(p0, p1, p2, p3, t, convertToDegrees) {

    var smidgeon = 1e-5,

        // tiny amount on either side
        t1 = Math.max(0, t - smidgeon),
        t2 = Math.min(1, t + smidgeon),

        point1 = bezierPointAtT(p0, p1, p2, p3, t1),
        point2 = bezierPointAtT(p0, p1, p2, p3, t2),

        // 90°
        dx = point2[0] - point1[0],
        dy = point2[1] - point1[1],

        // Calculate the angle in radians
        angleRad = Math.atan2(dy, dx);

    if (convertToDegrees === true)
        return (angleRad * 180) / Math.PI;
    else
        return angleRad;

};


/**
 * Returns distance between two points.
 * @author m1b
 * @version 2022-07-25
 * @param {Array} p1 - a point array [x, y].
 * @param {Array} p2 - a point array [x, y].
 * @returns {Number} - distance in points.
 */
function distanceBetweenPoints(p1, p2) {

    var a = p1[0] - p2[0];
    var b = p1[1] - p2[1];

    return Math.abs(Math.sqrt(a * a + b * b));

};


/**
 * Draws and returns a circle.
 * @param {Document} doc - an Illustrator Document.
 * @param {Array<Number>|PathPoint} c - center of circle [cx, cy].
 * @param {Number} radius - radius of circle.
 * @returns {PathItem}
 */
function drawCircle(doc, center, radius, appearance) {

    if (center.hasOwnProperty('anchor'))
        center = center.anchor;

    var circle = doc.pathItems.ellipse(-(-center[1] - radius), center[0] - radius, radius * 2, radius * 2);

    return circle;

};


/**
 * Returns the range of an array of numbers,
 * ie. the difference between the highest
 * and lowest members of the array.
 * @param {Array} arr - the array.
 * @returns {Number}
 */
function range(arr) {

    if (arr.length == 0)
        return 0;

    return Math.max.apply(null, arr) - Math.min.apply(null, arr);

};


/**
 * Returns true when arrays are equal.
 * @param {Array} arr1 - an array of comparable objects.
 * @param {Array} arr2 - an array of comparable objects.
 * @returns {Boolean}
 */
function arraysAreEqual(arr1, arr2) {

    if (arr1.length != arr2.length)
        return false;

    for (var i = 0; i < arr1.length; i++)
        if (arr1[i] !== arr2[i])
            return false;

    return true;

};


/**
 * Rounds a single number or an array of numbers.
 * @author m1b
 * @version 2022-08-02
 * @param {Number|Array<Number>} nums - a Number or Array of Numbers.
 * @param {Number} [places] - round to this many decimal places (default: 0).
 * @return {Number|Array<Number>} - the rounded Number(s).
 */
function round(nums, places) {

    if (places == undefined)
        places = 0;

    places = Math.pow(10, places);

    var result = [];

    if (nums.constructor.name != 'Array')
        nums = [nums];

    for (var i = 0; i < nums.length; i++)
        result[i] = Math.round(nums[i] * places) / places;

    return nums.length == 1 ? result[0] : result;

};


/**
 * Returns every PathItem found
 * in `container`
 * @author m1b
 * @date 2023-11-18
 * @param {*} container - any Illustrator DOM object that can contain path items.
 * @returns {Array<PathItem>}
 */
function getPathItems(container) {

    var items = [];

    if (container.constructor.name == 'Array')
        for (var i = 0, len = container.length; i < len; i++)
            items = items.concat(getPathItems(container[i]));

    else if (container.constructor.name == 'GroupItem')
        for (var i = 0, len = container.pageItems.length; i < len; i++)
            items = items.concat(getPathItems(container.pageItems[i]));

    else if (container.constructor.name == 'CompoundPathItem')
        for (var i = 0, len = container.pathItems.length; i < len; i++)
            items = items.concat(getPathItems(container.pathItems[i]));

    else if (container.constructor.name == 'PathItem')
        items.push(container);

    return items;

};

Edit 2023-11-20: just added the isDemo variable to make the meaning explicit: this is just a demo—you will want to do something else with the results.

You can do this in 2 seconds with an Astute Graphics plugin, do the geometric construction starting from a curve passing through two points, determining the center of the circle etc. it is a rather long, difficult operation and is always imprecise.
It is rightly a simple and essential function that dear Adobe has never given us the honor of integrating natively into AI. I wonder why! Mama Adobe cares a lot about her children, grandchildren and family it seems

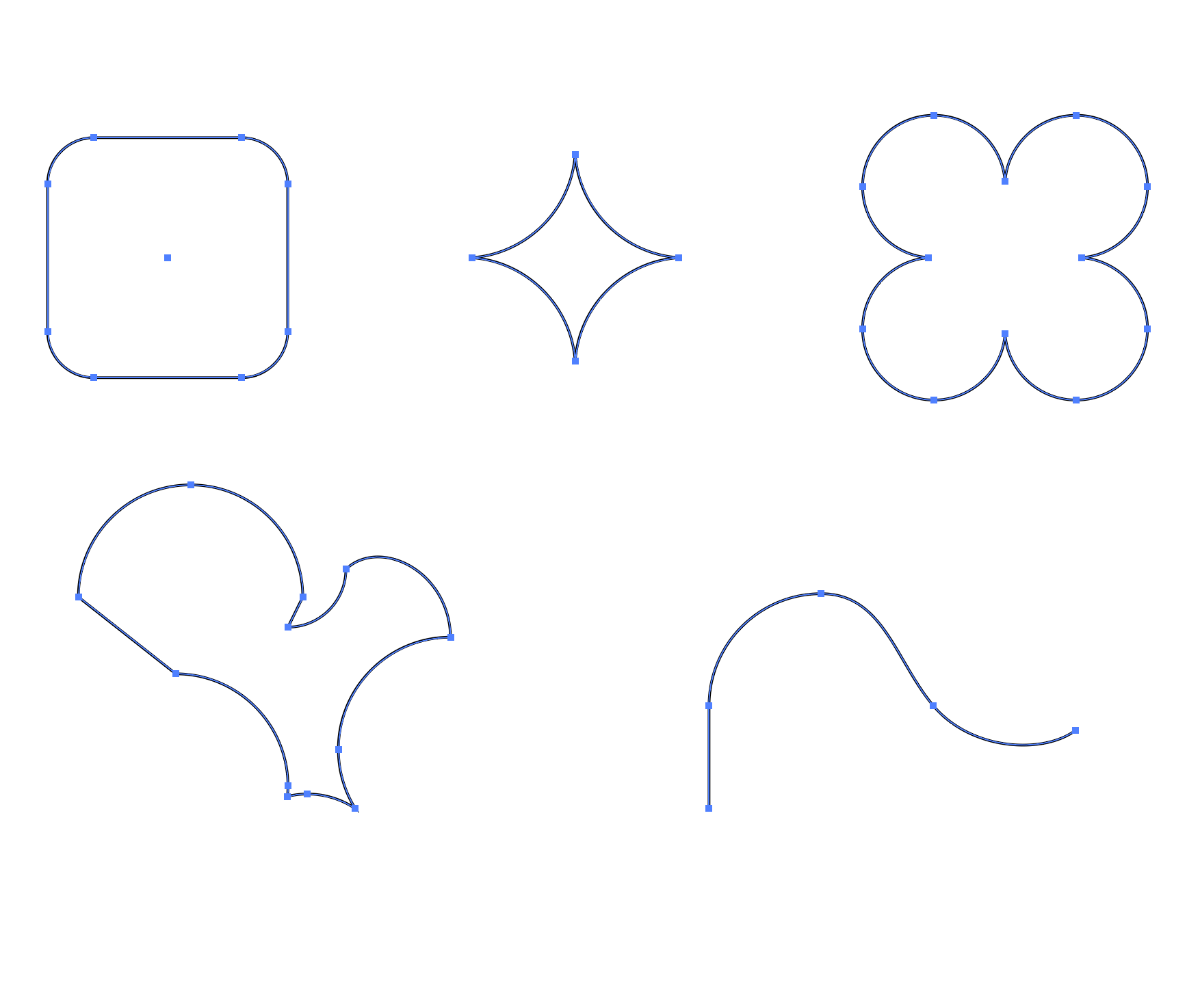

Please clarify the task. Do you want to determine from the anchor points and handles of the arcs shown in the screenshot that they are part of a "perfect circle" and draw such a circle?

The approximation in the link is only for a "unit right" circular arc, that is to say, an arc with a radius of 1 and an angle of 90°, or a quarter circle.  I presume you are dealing with arcs of unknown angles and radii, which is not as straightforward.

Eduard,

As Kurt would have already told you, had he seen this before now, there are no perfect circles.

"I've been trying to use scripting to find out if a user-selected curved path (formed from two anchor points) can be part of a perfect circle, and if so, draw the circle with the appropriate circumference on the artboard."

Those made in applications based on Bezier curves have four Anchor Points a quarter of a circle apart, at they actually have eight symmetrical(ly placed) bulges, so it is even impossible to fit a curved path into such a circle unless the path is exactly a quarter of a circle, in which case it is easy of course.
