Vector logo created in Illustrator CC as EPS to .DWG for Revit 2017/2018

Hello,

I have a vector logo file that needs to be easily inserted into title blocks in Revit 2017/2018 and Auto Cad.

When Revit imports the jpg and .png files, the logo looks fuzzy around the edges and the scale is different.

A .dwg file keeps the orignal size and looks sharp, but Revit is putting a line around the logo.

What's the best way to get a vector logo to keep it's quality and sizing when importing into Revit?

This topic has been closed for replies.

Community Expert

Yeah, raster formats are not a good option.

Have you tried DXF?

Participant

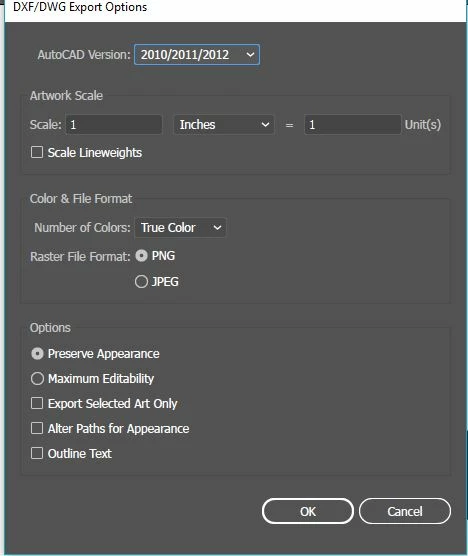

When I pull up the DXF export options, the latest AutoCAD Version is 2010/2011/2012.

Will that work for Revit 2017/2018?

Community Expert

I expect it will. Trying it won't break anything.
