Weird artifact on outlined text

Trying to get my illustrator prepared for a laser cutter. The laser demands that any cut lines be 100% rgb red and .001.

First I placed a text symbol with the text tool then created outlines. Then removed the compound path. Then gave it a 1 pt rgb red stroke. So far...looks good.

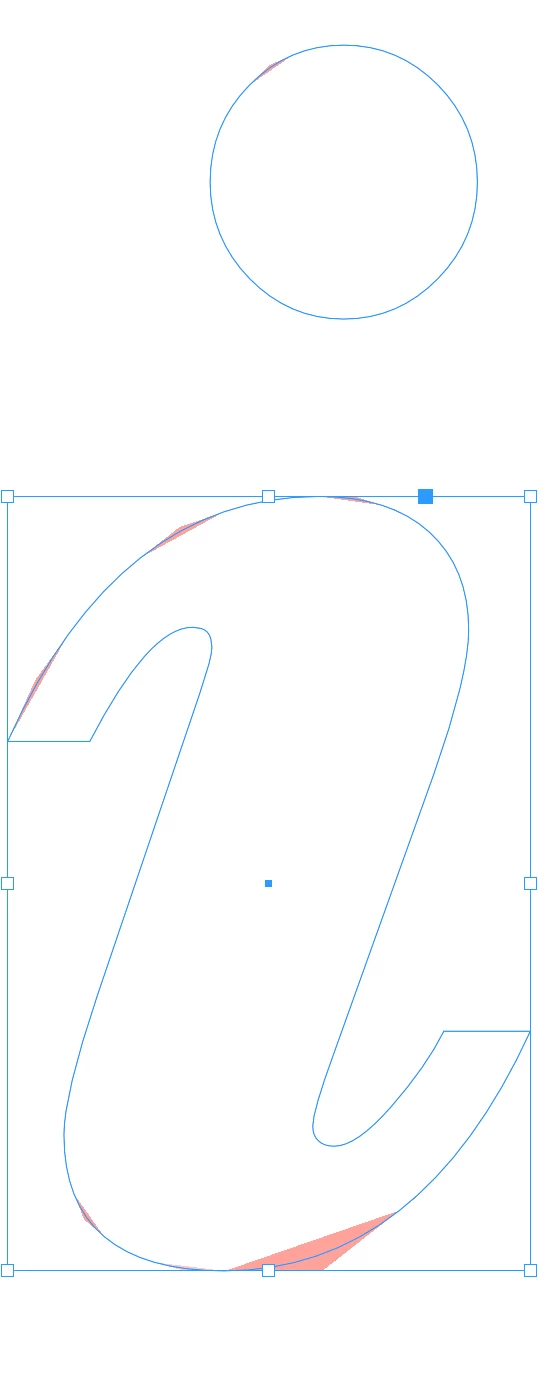

Then I set the stroke to .001pt as required by the laser cutter. Suddenly I am getting weird light red (not really pink but say 50% opacity red) artifacts along the path. When I send it to the laser cutter, these appear as rasters, not vectors.

I have Illustrator 2024 on a Mac, but this also happened on a pc with Illustrator 2022. I recreated the same steps on the laser lab computer and it worked fine, but disappointingly it didn't have the font I really wanted to use.





This topic is closed to new replies. Start a new post to keep the conversation going.

9 replies

Srishti_Bali
Legend
Aug 7, 2024 1:34 PM UTC

Hi @Gregory30460519yxmc



I'm sorry to hear about the trouble you're experiencing. I tried to replicate the issue but wasn't successful. Could you please provide a few more details to help us troubleshoot?

  • The exact version of Illustrator and your operating system
  • When this issue started occurring, and whether it began after a recent update.

Additionally, if you could share a sample file, it would greatly assist us in replicating the issue and finding a solution.







Thank you for your cooperation and patience.




Regards,

Srishti

Translate
Monika Gause
Community Expert
Community Expert
Aug 7, 2024 2:31 PM UTC

Hi Srishti



this is a typical issue of GPU preview. Most important here would be the information about the graphic card and the driver.

Translate
Monika Gause
Community Expert
Community Expert
Aug 7, 2024 8:56 AM UTC

Does it look better in View > Preview on CPU?

Translate
Participant
Aug 7, 2024 4:02 PM UTC

Yes but it still come out as a raster image on the laser cutter print app.



Translate
Uske_S
Community Expert
Community Expert
Aug 7, 2024 7:05 AM UTC

I was also able to reproduce it (Illustrator 2024, Mac).
However, as I was experimenting with different line thicknesses and colors, the bug stopped happening.
It looks like a really bug to me.

Translate
Uske_S
Participant
Aug 7, 2024 4:03 PM UTC

Yes, it disappears even for a .25pt line, it's just the .001pt line that has the issue.



Translate
