When I open my PDF in illustrator it appears like the boxes. how can i solve this?

  • March 2, 2026
  • 1 reply
  • 40 views

When I open my PDF in illustrator it appears like the boxes. how can i solve this?





    1 reply

    Brad @ Roaring Mouse
    Community Expert
    Brad @ Roaring MouseCommunity Expert
    Community Expert
    March 3, 2026

    We’ll need more information than that. e.g. What is it supposed to look like? What program made the PDF?

    Nehaligal
    NehaligalAuthor
    Participant
    March 3, 2026

    Hello Brad,

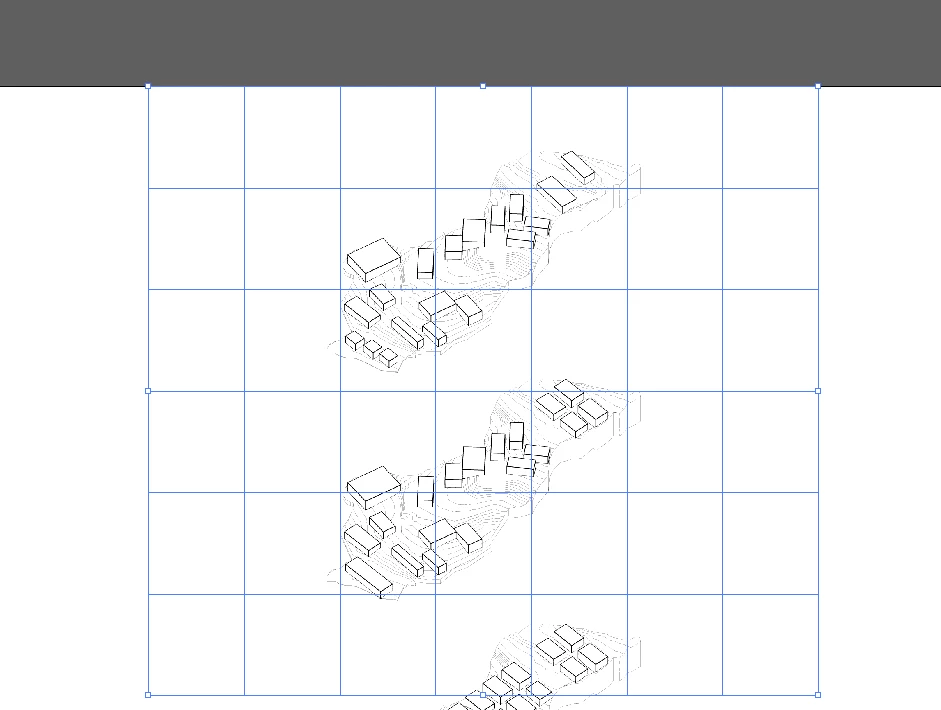

    I exported the pdf from Revit, I am new to illustrator, When i watched the videos it shows that when the pdf is imported in illustrator all the lines are exported as the separate entity but when i import the pdf it shows this box and if i wanted to edit the drawing i am unable to edit it as the drawing is not broken into different pieces. does this give you an idea?

    Brad @ Roaring Mouse
    Community Expert
    Brad @ Roaring MouseCommunity Expert
    Community Expert
    March 3, 2026

    Not really. What does the PDF look like by itself?
