Why does Illustrator CS 6 turn everything white in outline mode.

  • April 22, 2018
  • 2 replies
  • 5856 views

!st things first...

Using CS 6

running a Windows 7 machine

56 GB free space 16 GB RAM

OK so I'm trying to work along with one of the many tutorials on YouTube that covers using the Gradient Mesh tool. So far the #1 sticking point is Illustrator insist on covering the sample art work that I'm trying to duplicate. The example II'm fp;;owing the presenter starts with a rectangle that has the initial fill color which she gets rid of by switching to outline mode. when she dose this the rectangle becomes an outline, no fill. Which she begins to reshape to the contours of her sample photo on the underlying layer. The point being that when she switches to outline mode the underlying artwork is still visible giving her an outline , no fill of her rectangle.

When I do this it turns everything white totally obscuring the entire image except for an outline of my rectangle. What am I missing here? How do I get Illustrator to leave my image visible while working with outline mode. Mind you this is all in relation to the Gradient Mesh tool and the Direct Selection tool.

    This topic has been closed for replies.
    Correct answer Monika Gause

    The presenter has the template image on a template layer.

    And then has a second layer for drawing.

    How to use layers in Illustrator

    2 replies

    R
    roncuringtonAuthor
    Inspiring
    April 22, 2018

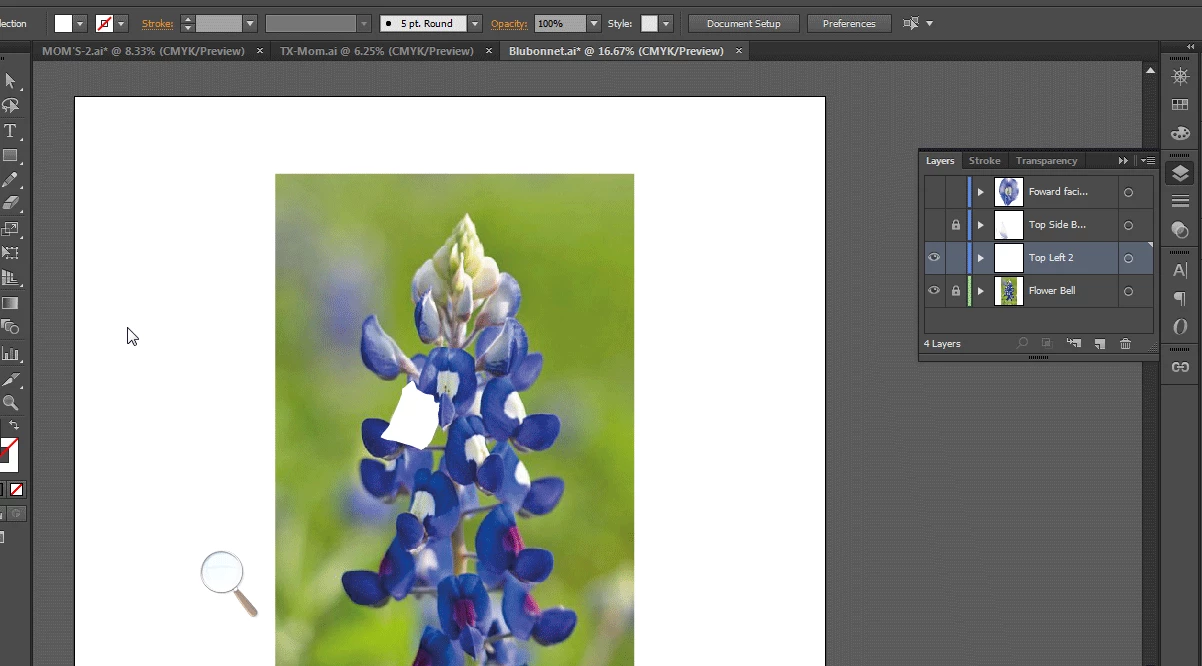

    This is the screen in preview mode...

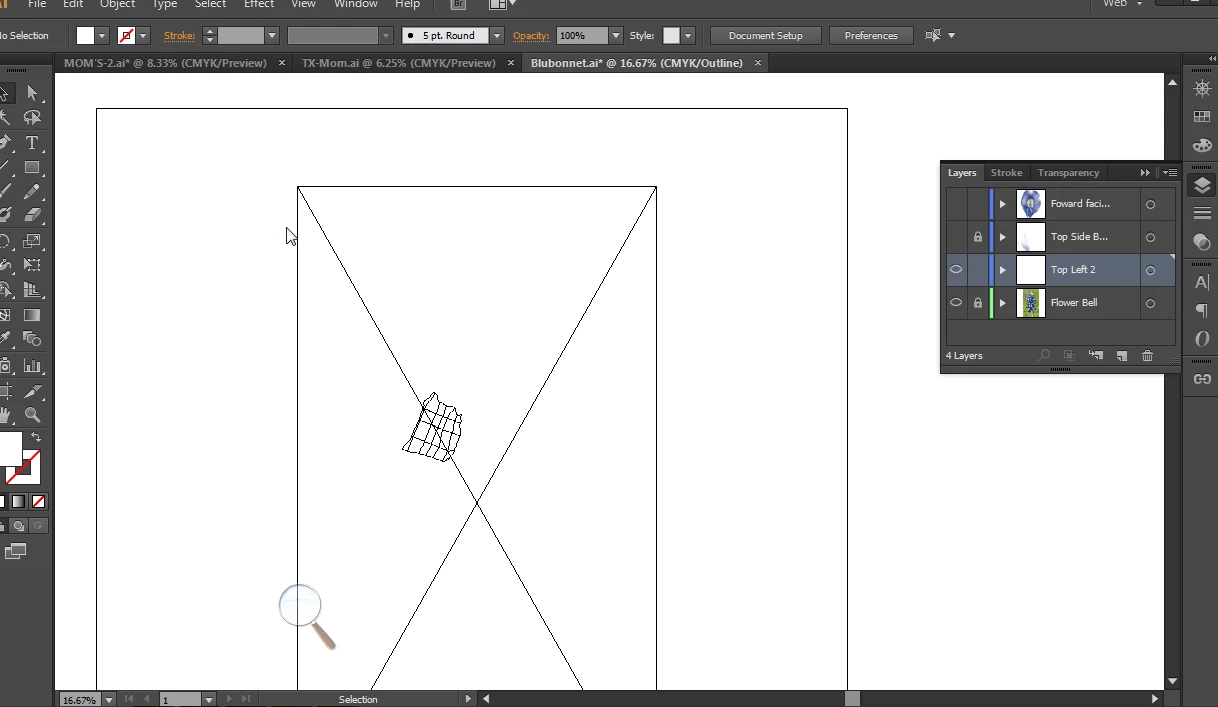

    This is the screen after hitting ctrl-y...

    jane-e
    Community Expert
    jane-eCommunity Expert
    Community Expert
    April 22, 2018

    There are two ways to switch to Outline mode.

    • Cmd + Y (Ctrl +Y on Windows) or the View menu puts the entire document into Outline view. The photo will not be visible.

    • Cmd (or Ctrl) + click the eyeball for the layer to put the layer into Outline view. The other layers will be visible.

    You can see hollow eyeballs on both of your layers visible layers, meaning they are both in Outline view. Go back to Preview for the document, and toggle only the layers that you want to be in Outline view.

      Monika Gause
      Community Expert
      Monika GauseCommunity ExpertCorrect answer
      Community Expert
      April 22, 2018

      The presenter has the template image on a template layer.

      And then has a second layer for drawing.

      How to use layers in Illustrator

      R
      roncuringtonAuthor
      Inspiring
      April 22, 2018

      Cool, that seems to have done the trick. Thank you

      Monika Gause
      Community Expert
      Monika GauseCommunity Expert
      Community Expert
      April 22, 2018

      You're welcome
