X,Y location of Freeform Gradient Points

Forum|Forum|6 years ago
June 12, 2020
3 replies
1719 views

Has anyone discovered how to identify the EXACT (x,y) coordinates of the points in a free form gradient?

Yes, I know you could drag guides and get generally close, however we are trying to find the exact coordinates.

Any help would be appreciated!

Cheers

This topic has been closed for replies.

aTomician

Inspiring

No is my short answer but having come up against this problem, I've resolved it by manually building an SVG where I can exactly specify each point of the gradient. By blending together several gradients, you can achieve a similar effect, which can then be imported into Illustrator for further work. (May want to import into inkscape first as sometimes Illustrator is as terrible as importing SVG's as it is at exporting them.

Here's a link to an example I built for a project, stacking 4 gradients together: https://stackoverflow.com/a/78554074/6312186

Regards, aTomician

Mike_Gondek10189183

Community Expert

There is nothing I know of inside the application to get 100.00% accurate coordinates on freeform gradient stops. You can also use window >> info and hover over the gradietn stop, but that is as accurate as pulling guides, just quicker.

You would need need a script to pull from the code.
@CarlosCanto

Gradients are quite forgiving with the color chanegs being subtle over an area rather than hard stop changes of a noise type gradient. Have to ask: do you really need this level of accuracy?

T

Tom Coolen

Participant

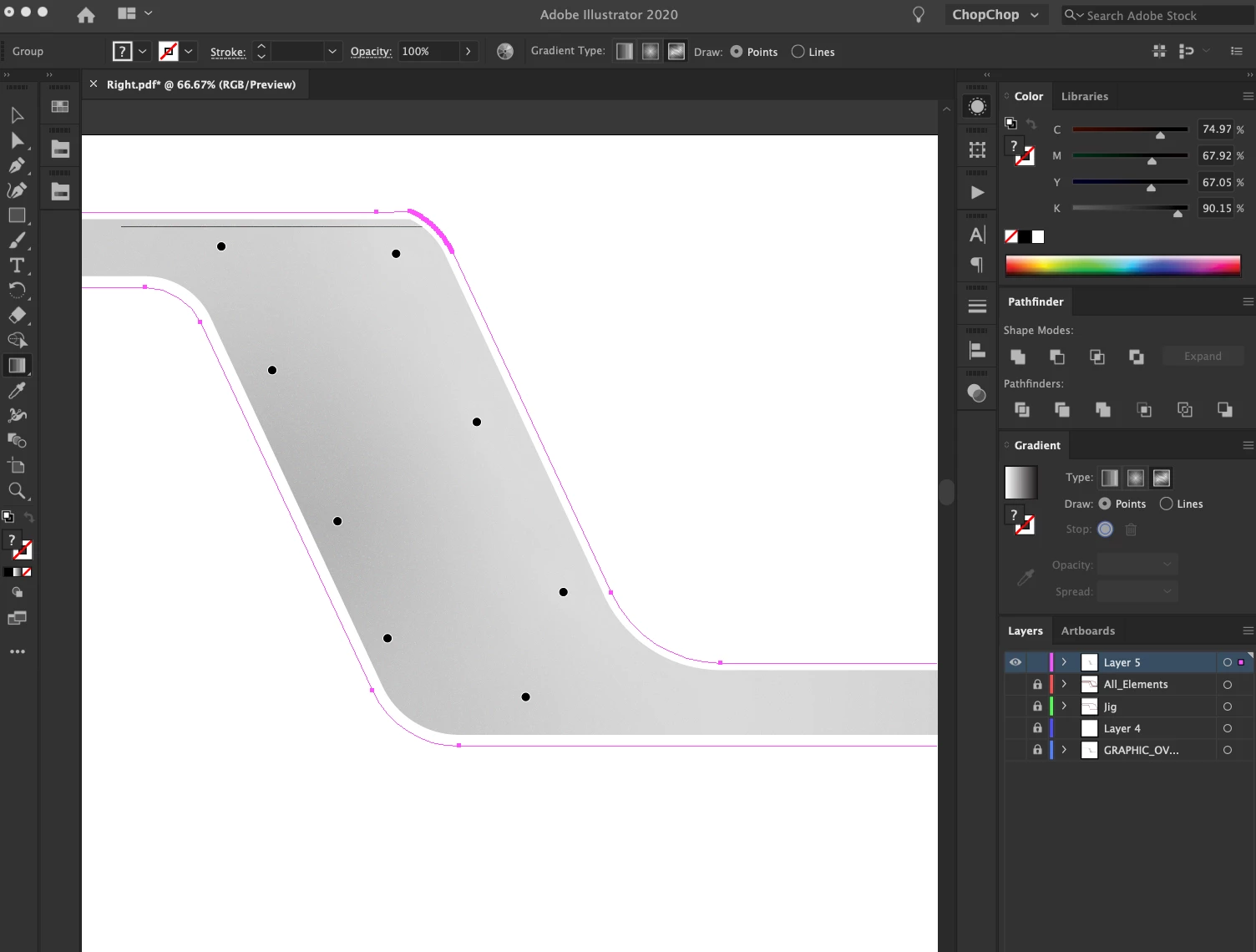

@Mike_Gondek10189183 I've got a gradient with over 70 stops and I'm asked to give coordinates for an engeneering team that wants to try and create it by programming. There are a few plug-ins where you can measure different kinds of objects etc. and have them all neatly put out with text, lines and such. So I could draw dots on theplace of one of these freeform gradient stops, but either I'm missing something, or it isn't really suited for the ask.

CarlosCanto

Community Expert

hi @Mike_Gondek10189183 and @Tom Coolen It might be possible to pull the info out of the file.

in this sample I made a triangle with one side sitting on the horizon, applied freeform gradient and left the default 3 points at each corner.

then, saved the file uncompressed, then opened it with a text editor and searched for "ColorPoints"

as you can see below, the color of each gradient point is listed in each line that ends with a k, the four values are the cmyk values in decimal format

the next line gives you five numbers, the last two are the x,y coordinates of the point. I'm pretty sure the numbers represent the percentage of the size of the shape, so 0.5 would be in the middle of the shape.

/SmoothShadingStyle : (Adobe Diffusion Coloring Style) 3 /ColorPoints ,
0 O
0.597222805023193 0 0.883298993110657 0 k
1 w
1 1 0 0.074999953727292 0.949999974130389
/ColorPoint ,
0.885343670845032 0.808224558830261 0 0 k
1 1 0 0.925000030347277 0.949999974130389
/ColorPoint ,
0.088502325117588 0.152040883898735 0.31189438700676 0 k
1 1 0 0.499999992037285 0.100000000032654
/ColorPoint ,

since the engineers are writing their own program, give them that portion of the text, they should be able to figure it out.

hope it helps

Carlos
