Material Input for Custom Filter

  • July 1, 2021
  • 1 reply
  • 564 views

Hello there! I am creating a custom filter to make decals and I have been trying to add a material Input but it does not seem to work. I have followed every requirements in the documentation but the material slot still does not appear...



Is there anything missing?

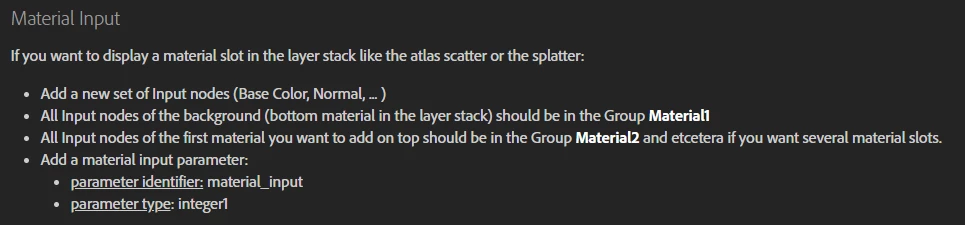

These are the requirements I was talking about:



Thank you for taking the time 🙂



This topic has been closed for replies.
Correct answer Baptiste_Substance_3D

Everything looks good.



One last thing to confirm is that the material input parameter is "used" somewhere (in a function, in a visible if condition of another node,...). If the parameter is not "used", it will be removed during the SBSAR export.



If it's possible, you can send me your SBS file in private message to investigate if the issue is still there.



Thanks

1 reply

LoryAline
Community Manager
LoryAlineCommunity Manager
Community Manager
July 1, 2021

Hi,
Can you share screenshots of your parameters?
So we can better see what's wrong.

Thank you

    F
    Francesc5C31Author
    Inspiring
    July 1, 2021

    Here you have the screens of all the required parameters:

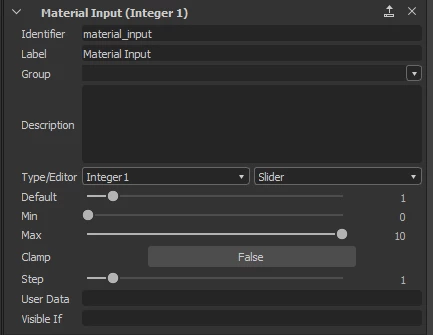

    material input parameter:

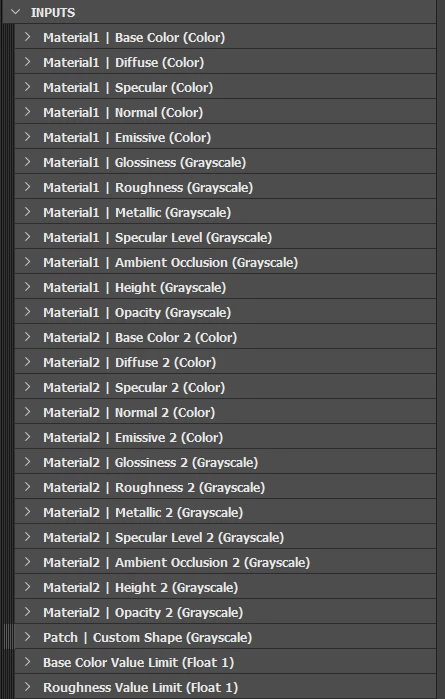

    Here you have all my input nodes:

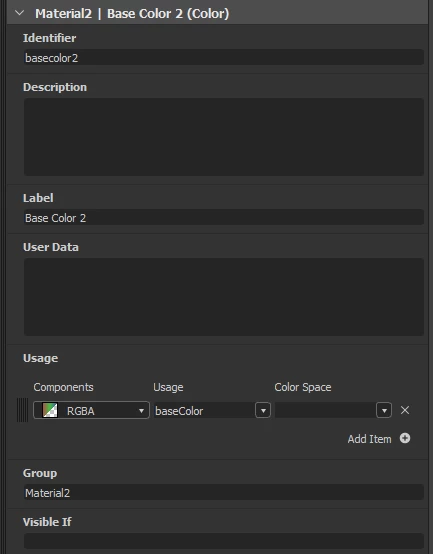

    And as an example here you have how their info is filled:



    There you go 🙂 Thank you very much!



    Baptiste_Substance_3D
    Community Manager
    Baptiste_Substance_3DCommunity ManagerCorrect answer
    Community Manager
    July 1, 2021

    Everything looks good.



    One last thing to confirm is that the material input parameter is "used" somewhere (in a function, in a visible if condition of another node,...). If the parameter is not "used", it will be removed during the SBSAR export.



    If it's possible, you can send me your SBS file in private message to investigate if the issue is still there.



    Thanks
