February 2, 2014
Question

HDS streaming is not working, error: problem with playback

  • February 2, 2014
  • 2 replies
  • 8804 views

Hi,

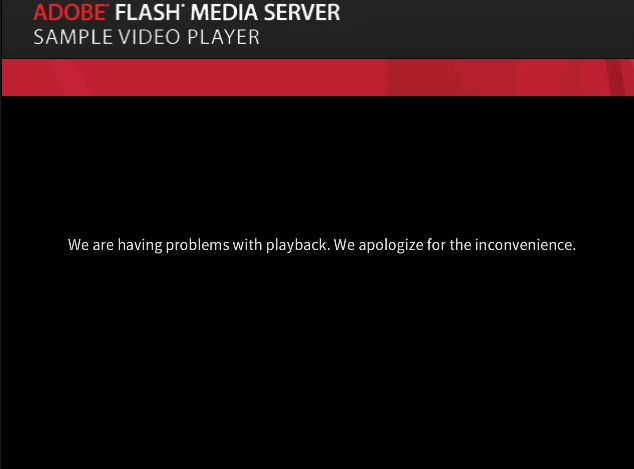

We have a problem to do HDS streaming in my FMS ...attached the screenshot showing error when i tried in my sample video player.

Normally what could be the reason for it. RTMP is working without any probelms.

Please advice where I can check the errorlogs for this issue.

This topic has been closed for replies.

2 replies

R
rjp421
Known Participant
February 2, 2014

i am also getting this error with Chrome, yet Firefox will play the streams/files without the error.

B
b-castAuthor
Participating Frequently
February 3, 2014

In both Chrome and Firefox showing same error for me ..

B
b-castAuthor
Participating Frequently
February 3, 2014

Anybody can please share your expert advice please ...

Petro_O__Bochan
Petro_O__Bochan
Inspiring
February 2, 2014

That error is too generic. Provide details like FMS version, liveplgr xmls, httpd config files, etc.

B
b-castAuthor
Participating Frequently
February 2, 2014

FMS version 4.5

# cat Event.xml

<Event>

  <EventID>liveevent</EventID>

  <Recording>

    <FragmentDuration>4000</FragmentDuration>

    <SegmentDuration>400000</SegmentDuration>

    <DiskManagementDuration>3</DiskManagementDuration>

  </Recording>

</Event>

# cat Manifest.xml

<manifest xmlns="http://ns.adobe.com/f4m/1.0">

  <media streamId="livestream" bitrate="350" />

</manifest>

httpd.conf

#

# This is the main Apache server configuration file.  It contains the

# configuration directives that give the server its instructions.

# See <URL:http://httpd.apache.org/docs/2.2/> for detailed information.

# In particular, see

# <URL:http://httpd.apache.org/docs/2.2/mod/directives.html>

# for a discussion of each configuration directive.

#

# Please see httpd.conf.orig for the configuration of a default

# (non-FMS) installation of apache.

Listen 80

#Listen 8134

# If you plan to run FMS as root on linux, you _must_ specify a

# valid user, with access to the FMS installation direction, or

# apache will not run.

#

# If you've used the default installer, nobody (or whatever other

# username you gave to the installer) will work here.

#

# If you're running a developer build under your own home directory,

# you should use your own username.

User fms

Group fms

AccessFileName .htaccess

ServerSignature On

UseCanonicalName Off

HostnameLookups Off

Timeout 120

KeepAlive On

MaxKeepAliveRequests 100

KeepAliveTimeout 15

ErrorLog logs/error_log

LogLevel info

LogFormat "%h %l %u %t \"%r\" %>s %b \"%{Referer}i\" \"%{User-Agent}i\"" combined

CustomLog logs/access_log combined

# Proxy rtmpt to FMS

ProxyRequests Off

ProxyPass /open/ http://localhost:1935/open/

ProxyPass /close/ http://localhost:1935/close/

ProxyPass /idle/ http://localhost:1935/idle/

ProxyPass /send/ http://localhost:1935/send/

ProxyPass /fcs/ http://localhost:1935/fcs/

ProxyPass /fms/ http://localhost:1935/fms/

DocumentRoot "../webroot"

DirectoryIndex index.html index.html.var index.php index.php3 index.php4 index.php5 index.py index.pl index.rb

<Directory />

    Options FollowSymLinks

    AllowOverride None

    Order allow,deny

    Allow from all

    Satisfy all

</Directory>

<Directory "../webroot">

    Options -Indexes FollowSymLinks

    AllowOverride None

    Order allow,deny

    Allow from all

</Directory>

Alias /documentation ../documentation/

<Directory ../documentation/>

    Options FollowSymLinks

    AllowOverride None

    Order allow,deny

    Allow from all

</Directory>

Alias /icons/ "icons/"

<Directory "icons">

    Options MultiViews FollowSymLinks

    AllowOverride None

    Order allow,deny

    Allow from all

</Directory>

Alias /error/ "error/"

ScriptAlias /cgi-bin/ "cgi-bin/"

<Directory "cgi-bin">

    AllowOverride None

    Options None

    Order allow,deny

    Allow from all

</Directory>

<Location /server-status>

    SetHandler server-status

    Order deny,allow

    Deny from all

    Allow from 10.0.0.0/8

    Allow from 172.16.0.0/12

    Allow from 192.168.0.0/16

    Allow from 127.

</Location>

ExtendedStatus On

<Location /server-info>

    SetHandler server-info

    Order deny,allow

    Deny from all

    Allow from 10.0.0.0/8

    Allow from 172.16.0.0/12

    Allow from 192.168.0.0/16

    Allow from 127.

</Location>

<FilesMatch "^\.ht">

    Order allow,deny

    Deny from all

</FilesMatch>

<IfModule mpm_winnt_module>

    ThreadsPerChild 250

    MaxRequestsPerChild 0

</IfModule>

<IfModule worker_module>

    StartServers         2

    MaxClients         150

    MinSpareThreads     25

    MaxSpareThreads     75

    ThreadsPerChild     25

    MaxRequestsPerChild  0

</IfModule>

LoadModule actions_module modules/mod_actions.so

#LoadModule alias_module modules/mod_alias.so

LoadModule asis_module modules/mod_asis.so

LoadModule auth_basic_module modules/mod_auth_basic.so

LoadModule auth_digest_module modules/mod_auth_digest.so

LoadModule authn_anon_module modules/mod_authn_anon.so

#LoadModule authn_dbm_module modules/mod_authn_dbm.so

LoadModule authn_default_module modules/mod_authn_default.so

LoadModule authn_file_module modules/mod_authn_file.so

#LoadModule authz_dbm_module modules/mod_authz_dbm.so

LoadModule authz_default_module modules/mod_authz_default.so

LoadModule authz_groupfile_module modules/mod_authz_groupfile.so

LoadModule authz_host_module modules/mod_authz_host.so

LoadModule authz_user_module modules/mod_authz_user.so

LoadModule autoindex_module modules/mod_autoindex.so

#LoadModule cern_meta_module modules/mod_cern_meta.so

<IfModule mpm_winnt_module>

    LoadModule cgi_module modules/mod_cgi.so

</IfModule>

<IfModule worker_module>

    LoadModule cgid_module modules/mod_cgid.so

</IfModule>

LoadModule dav_module modules/mod_dav.so

LoadModule dav_fs_module modules/mod_dav_fs.so

LoadModule deflate_module modules/mod_deflate.so

LoadModule dir_module modules/mod_dir.so

LoadModule env_module modules/mod_env.so

#LoadModule expires_module modules/mod_expires.so

#LoadModule file_cache_module modules/mod_file_cache.so

LoadModule headers_module modules/mod_headers.so

LoadModule imagemap_module modules/mod_imagemap.so

LoadModule include_module modules/mod_include.so

LoadModule info_module modules/mod_info.so

<IfModule mpm_winnt_module>

    LoadModule isapi_module modules/mod_isapi.so

</IfModule>

LoadModule log_config_module modules/mod_log_config.so

LoadModule mime_module modules/mod_mime.so

LoadModule mime_magic_module modules/mod_mime_magic.so

LoadModule proxy_module modules/mod_proxy.so

LoadModule proxy_ajp_module modules/mod_proxy_ajp.so

LoadModule proxy_balancer_module modules/mod_proxy_balancer.so

LoadModule proxy_connect_module modules/mod_proxy_connect.so

LoadModule proxy_http_module modules/mod_proxy_http.so

LoadModule proxy_ftp_module modules/mod_proxy_ftp.so

LoadModule negotiation_module modules/mod_negotiation.so

LoadModule rewrite_module modules/mod_rewrite.so

LoadModule setenvif_module modules/mod_setenvif.so

#LoadModule speling_module modules/mod_speling.so

LoadModule status_module modules/mod_status.so

LoadModule unique_id_module modules/mod_unique_id.so

LoadModule userdir_module modules/mod_userdir.so

#LoadModule usertrack_module modules/mod_usertrack.so

#LoadModule vhost_alias_module modules/mod_vhost_alias.so

#LoadModule ssl_module modules/mod_ssl.so

##############################################################################

# The following section enables caching of Just-In-Time packaged content     #

# Use htcacheclean tool to manage the amount of data that is cached on disk. #

# See Apache documentation for its usage.                                    #

# http://httpd.apache.org/docs/2.2/programs/htcacheclean.html                #

# Make sure the directory specified by the CacheRoot directive exists. The   #

# default is a directory named cacheroot that is directly under the Apache   #

# installation directory.                                                    #

# For more information on content caching, see Apache documentation          #

# http://httpd.apache.org/docs/2.2/caching.html                              #

##############################################################################

# Uncomment this to enable caching

#LoadModule cache_module modules/mod_cache.so

<IfModule mod_cache.c>

    LoadModule disk_cache_module modules/mod_disk_cache.so

    <IfModule mod_disk_cache.c>

        CacheEnable disk /hds-vod

        CacheEnable disk /hls-vod

        CacheRoot cacheroot

        CacheMaxFileSize 10000000

        CacheLock On

    </IfModule>

</IfModule>

<IfModule mod_deflate.c>

    AddOutputFilterByType DEFLATE application/vnd.apple.mpegurl

    SetEnvIfNoCase Request_URI "^" dont-vary

    SetEnvIfNoCase Request_URI \.(?:vnd\.apple\.mpegurl)$ !no-gzip !dont-vary

    Header append Vary Accept-Encoding env=!dont-vary

</IfModule>

LoadModule alias_module modules/mod_alias.so

LoadModule f4fhttp_module modules/mod_f4fhttp.so

<IfModule f4fhttp_module>

<Location /vod>

    HttpStreamingEnabled true

    HttpStreamingContentPath "../webroot/vod"

    Options -Indexes FollowSymLinks

</Location>

# Drop the Range header when more than 5 ranges.

# CVE-2011-3192

SetEnvIf Range (,.*?){5,} bad-range=1

RequestHeader unset Range env=bad-range

# map old style url to new (as of FMS 4.5), more compact url

Redirect 301 /live/events/livepkgr/events /hds-live/livepkgr

<Location /hds-live>

    HttpStreamingEnabled true

    HttpStreamingLiveEventPath "../applications"

    HttpStreamingContentPath "../applications"

    HttpStreamingF4MMaxAge 2

    HttpStreamingBootstrapMaxAge 2

    HttpStreamingDrmmetaMaxAge 2

    HttpStreamingFragMaxAge -1

    Options -Indexes FollowSymLinks

</Location>

</IfModule>

LoadModule hlshttp_module modules/mod_hlshttp.so

<IfModule hlshttp_module>

<Location /hls-live>

    HLSHttpStreamingEnabled true

    HttpStreamingLiveEventPath "../applications"

    HttpStreamingContentPath "../applications"

    HLSMediaFileDuration 8000

    HLSSlidingWindowLength 6

    HLSFmsDirPath ".."

    HLSM3U8MaxAge 2

    HLSTSSegmentMaxAge -1

    HLSMaxEventAge 300

    HttpStreamingUnavailableResponseCode 503

# Uncomment the following directives to enable encryption

# for this location.

#    HLSEncryptionScope server

#    HLSEncryptCipherKeyFile "../phls/liveeventkey.bin"

#    HLSEncryptKeyURI        "https://<ServerName>/hls-key/liveeventkey.bin"

    Options -Indexes FollowSymLinks

</Location>

<Location /hls-vod>

    HLSHttpStreamingEnabled true

    HLSMediaFileDuration 8000

    HttpStreamingContentPath "../webroot/vod"

    HLSFmsDirPath ".."

    HLSJITConfAllowed true

# Uncomment the following directives to enable encryption

# for this location.

#    HLSEncryptionScope server

#    HLSEncryptCipherKeyFile "../phls/vodkey.bin"

#    HLSEncryptKeyURI        "https://<ServerName>/hls-key/vodkey.bin"

    Options -Indexes FollowSymLinks

</Location>

</IfModule>

LoadModule jithttp_module modules/mod_jithttp.so

<IfModule jithttp_module>

<Location /hds-vod>

    HttpStreamingJITPEnabled true

    HttpStreamingContentPath "../webroot/vod"

    HttpStreamingJITConfAllowed true

    JitFmsDirPath ".."

    Options -Indexes FollowSymLinks

</Location>

</IfModule>

LoadModule ctrlplane_module modules/mod_ctrlplane.so

<IfModule ctrlplane_module>

<Location /ctrlplane>

                SetHandler ctrlplane

                HdsHttpStreamingLiveEventPath "../applications"

                HlsHttpStreamingLiveEventPath "../applications"

                MaxBootstrapAge 300

                Options -Indexes FollowSymLinks

</Location>

</IfModule>

TypesConfig conf/mime.types

MIMEMagicFile conf/magic

DefaultType text/plain

AddType video/x-flv .flv

AddType video/MP2T .ts

AddType application/x-compress .Z

AddType application/x-gzip .gz .tgz

AddType application/x-mpegurl .m3u8

AddHandler send-as-is asis

AddHandler type-map var

AddType text/html .shtml

AddOutputFilter INCLUDES .shtml

<IfModule ssl_module>

    SSLRandomSeed startup builtin

    SSLRandomSeed connect builtin

</IfModule>

<IfModule userdir_module>

    UserDir disable

</IfModule>

<IfModule dav_fs_module>

    DAVLockDB tmp/dav/lockdb

</IfModule>

IndexOptions FancyIndexing VersionSort NameWidth=* HTMLTable

AddIconByEncoding (CMP,/icons/compressed.gif) x-compress x-gzip

AddIconByType (TXT,/icons/text.gif) text/*

AddIconByType (IMG,/icons/image2.gif) image/*

AddIconByType (SND,/icons/sound2.gif) audio/*

AddIconByType (VID,/icons/movie.gif) video/*

AddIconByType (VID,/icons/movie.gif) application/x-shockwave-flash

AddIcon /icons/binary.gif .bin .exe

AddIcon /icons/binhex.gif .hqx

AddIcon /icons/tar.gif .tar

AddIcon /icons/world2.gif .wrl .wrl.gz .vrml .vrm .iv

AddIcon /icons/compressed.gif .Z .z .tgz .gz .zip

AddIcon /icons/a.gif .ps .ai .eps

AddIcon /icons/layout.gif .html .shtml .htm .pdf

AddIcon /icons/text.gif .txt

AddIcon /icons/c.gif .c

AddIcon /icons/p.gif .pl .py

AddIcon /icons/f.gif .for

AddIcon /icons/dvi.gif .dvi

AddIcon /icons/uuencoded.gif .uu

AddIcon /icons/script.gif .conf .sh .shar .csh .ksh .tcl

AddIcon /icons/tex.gif .tex

AddIcon /icons/bomb.gif core

AddIcon /icons/back.gif ..

AddIcon /icons/hand.right.gif README

AddIcon /icons/folder.gif ^^DIRECTORY^^

AddIcon /icons/blank.gif ^^BLANKICON^^

DefaultIcon /icons/unknown.gif

ReadmeName README.html

HeaderName HEADER.html

IndexIgnore .??* *~ *# HEADER* README* RCS CVS *,v *,t

AddLanguage ca .ca

AddLanguage cs .cz .cs

AddLanguage da .dk

AddLanguage de .de

AddLanguage el .el

AddLanguage en .en

AddLanguage eo .eo

AddLanguage es .es

AddLanguage et .et

AddLanguage fr .fr

AddLanguage he .he

AddLanguage hr .hr

AddLanguage it .it

AddLanguage ja .ja

AddLanguage ko .ko

AddLanguage ltz .ltz

AddLanguage nl .nl

AddLanguage nn .nn

AddLanguage no .no

AddLanguage pl .po

AddLanguage pt .pt

AddLanguage pt-BR .pt-br

AddLanguage ru .ru

AddLanguage sv .sv

AddLanguage zh-CN .zh-cn

AddLanguage zh-TW .zh-tw

LanguagePriority en ca cs da de el eo es et fr he hr it ja ko ltz nl nn no pl pt pt-BR ru sv zh-CN zh-TW

ForceLanguagePriority Prefer Fallback

AddDefaultCharset UTF-8

<IfModule mod_negotiation.c>

    <IfModule mod_include.c>

        <Directory "error">

            AllowOverride None

            Options IncludesNoExec

            AddOutputFilter Includes html

            AddHandler type-map var

            Order allow,deny

            Allow from all

            LanguagePriority en es de fr

            ForceLanguagePriority Prefer Fallback

        </Directory>

    </IfModule>

</IfModule>

BrowserMatch "Mozilla/2" nokeepalive

BrowserMatch "MSIE 4\.0b2;" nokeepalive downgrade-1.0 force-response-1.0

BrowserMatch "RealPlayer 4\.0" force-response-1.0

BrowserMatch "Java/1\.0" force-response-1.0

BrowserMatch "JDK/1\.0" force-response-1.0

BrowserMatch "Microsoft Data Access Internet Publishing Provider" redirect-carefully

BrowserMatch "MS FrontPage" redirect-carefully

BrowserMatch "^WebDrive" redirect-carefully

BrowserMatch "^WebDAVFS/1.[0123]" redirect-carefully

BrowserMatch "^gnome-vfs/1.0" redirect-carefully

BrowserMatch "^XML Spy" redirect-carefully

BrowserMatch "^Dreamweaver-WebDAV-SCM1" redirect-carefully

#Uncomment following for enabling https based key serving

#for HLS.

#Include conf/httpd-hls-secure.conf


Petro_O__Bochan
Petro_O__Bochan
Inspiring
February 2, 2014

provide your publishing and playback URLs.

P.S. This is a public forum as opposed to Adobe support. You don’t need to paste the whole config.

Terms & ConditionsAccessibility statement
Using the community Terms of use Privacy Cookie preferences Do not sell or share my personal information ad choicesAdChoices
