3D Models Showing Up Black

  • March 7, 2017
  • 1 reply
  • 4450 views

Why does when a layer in made into 3D it turns into jet black?  Is there a way to fix this?

I'm trying to make a spaceship and am making it piece by piece, but this is driving me crazy.

    This topic has been closed for replies.
    Correct answer davescm

    Be careful with those 3D settings help pages. Whilst they give some useful info, the screenshots refer to CS5 wheras the panels changed in CS6 and remain changed to the current CC version. Those pages really do need an update.

    Ricky - take a look at :

    a. The light position and intensity .
    The default light is usually an infinite light and the properties panel allows you to adjust colout and intensity.

    b. The Environment lighting - this is your "background or world light". You can set here a global ambient light as well as image based lighting where you can load an image to act as a light source.

    c. Your material settings in the Properties panel for each material in your model. Particularly the diffuse material settings

    I hope that helps

    Dave

    1 reply

    Mohit Goyal
    Community Manager
    Mohit GoyalCommunity Manager
    Community Manager
    March 7, 2017

    HI rickyj,

    You can try and change some setting under the panel, please refer the below link.

    3D panel settings in Photoshop

    Regards,

    Mohit

    davescm
    Community Expert
    davescmCommunity ExpertCorrect answer
    Community Expert
    March 7, 2017

    Be careful with those 3D settings help pages. Whilst they give some useful info, the screenshots refer to CS5 wheras the panels changed in CS6 and remain changed to the current CC version. Those pages really do need an update.

    Ricky - take a look at :

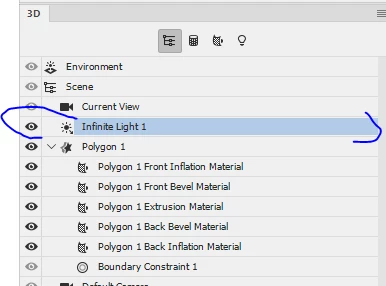

    a. The light position and intensity .
    The default light is usually an infinite light and the properties panel allows you to adjust colout and intensity.

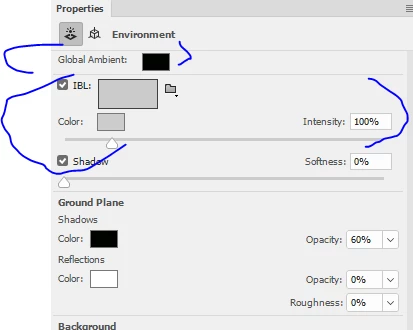

    b. The Environment lighting - this is your "background or world light". You can set here a global ambient light as well as image based lighting where you can load an image to act as a light source.

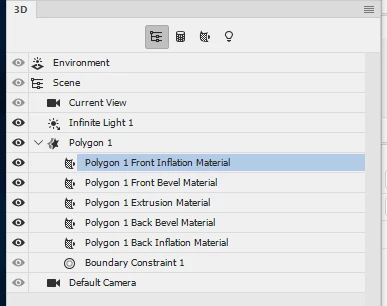

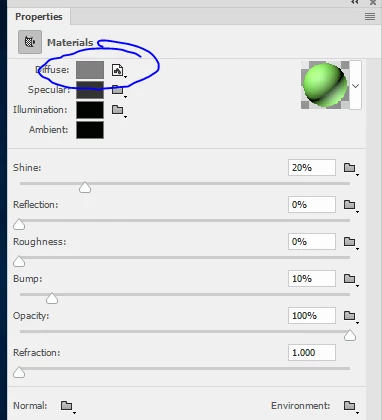

    c. Your material settings in the Properties panel for each material in your model. Particularly the diffuse material settings

    I hope that helps

    Dave
