Cannot Use Stroke Overlay on pixel art without Anti Aliasing

  • April 30, 2021
  • 6 replies
  • 2764 views

I am wondering if therr is a work around or if I should forward this to a feature request.

But when using the stroke overlay, it always anti aliases pixels. As does

Drop Shadow

Strangely, Outer Glow does a better job at "Stroking" than the actual stroke feature excepr stroke follows the rules of pixel art except for the blasted anti aliasing.



Steps to reproduce.



Create a new doc. Any size.

Lets say 128x128

Create a new layer. Draw three pixels on the layer.

Go to stroke.

Set size to 1 and everything else to 0.

And low and behold, antialiasing occurs, which I neither asked for nor should it be automatically decided for me that I want it.



Occurs on both my home and school pcs and both have all updates.

This topic has been closed for replies.

6 replies

Jeff Arola
Community Expert
Jeff ArolaCommunity Expert
Community Expert
October 8, 2023

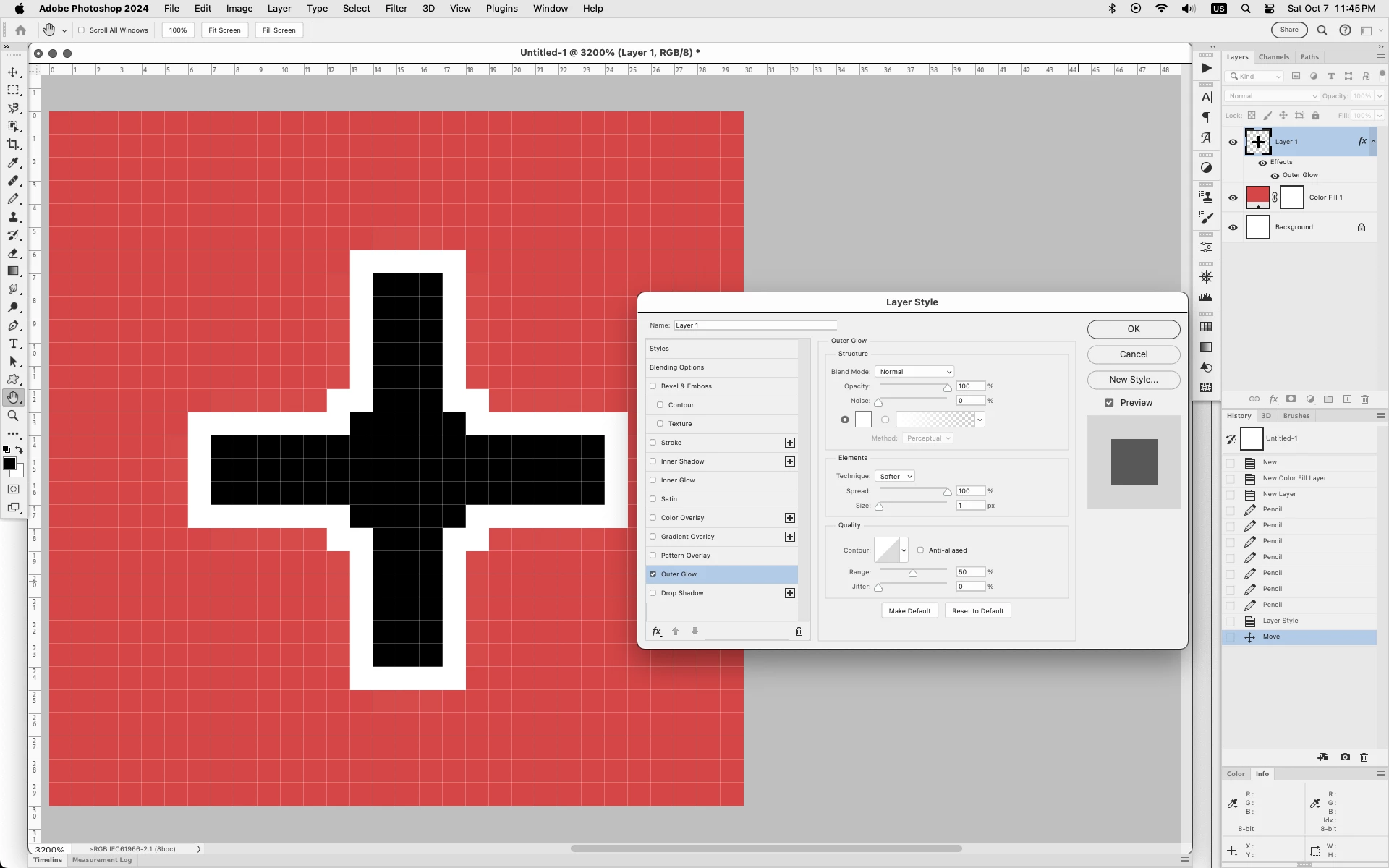

Instead of using a Stroke layer style you could use an Outer Glow layer style where one can uncheck Anti-aliased.



    I
    Indrek327787063wva
    Participant
    October 7, 2023

    When you use selection tool (circle or whatever), uncheck anti-aliasing for THIS TOOL. Stroke and pen usage on selection later won't be anti-aliased.

      c.pfaffenbichler
      Community Expert
      c.pfaffenbichlerCommunity Expert
      Community Expert
      April 30, 2021

      »And low and behold, antialiasing occurs, which I neither asked for nor should it be automatically decided for me that I want it.«

      You decided to use the Layer Style, didn’t you?

      c.pfaffenbichler
      Community Expert
      c.pfaffenbichlerCommunity Expert
      Community Expert
      April 30, 2021

      Could you please post a screenshot taken at View > 100% with the pertinent Panels (Toolbar, Layers, Options Bar, …) visible?

      Semaphoric
      Community Expert
      SemaphoricCommunity Expert
      Community Expert
      April 30, 2021

      If you're okay with not using a Layer Effect, you could select the layer's transparency, and Edit > Stroke.It would probably be a good idea to use a separate layer for the stroke.



      Unlike with a Layer Effect, this will not remain "Live", so you will have to redo it if you change your pixel layer.

      F
      Community Expert
      Francesco Della PerutaCommunity Expert
      Community Expert
      April 30, 2021

      Hi, try to take a look here:

      https://community.adobe.com/t5/photoshop/photoshop-2021-how-to-turn-off-anti-aliasing/td-p/11629949

      A
      AndrewThe1stAuthor
      Participating Frequently
      May 2, 2021

      I am not an amatuer user. I am at the experience level where know when the solution is not likely to be anything short of code improvement on the developer end or scripting on the front end.

      Attached is a video in which you can reproduce the steps in under 20 seconds in any copy of photoshop.
      It is not an export issue. It is base level feature that is not available and should be.

      https://youtu.be/JEjvOdyStFE

      c.pfaffenbichler
      Community Expert
      c.pfaffenbichlerCommunity Expert
      Community Expert
      May 3, 2021

      So why post here instead of making a Feature Request at the correct location?



      »It is base level feature that is not available and should be.«

      I disagree.

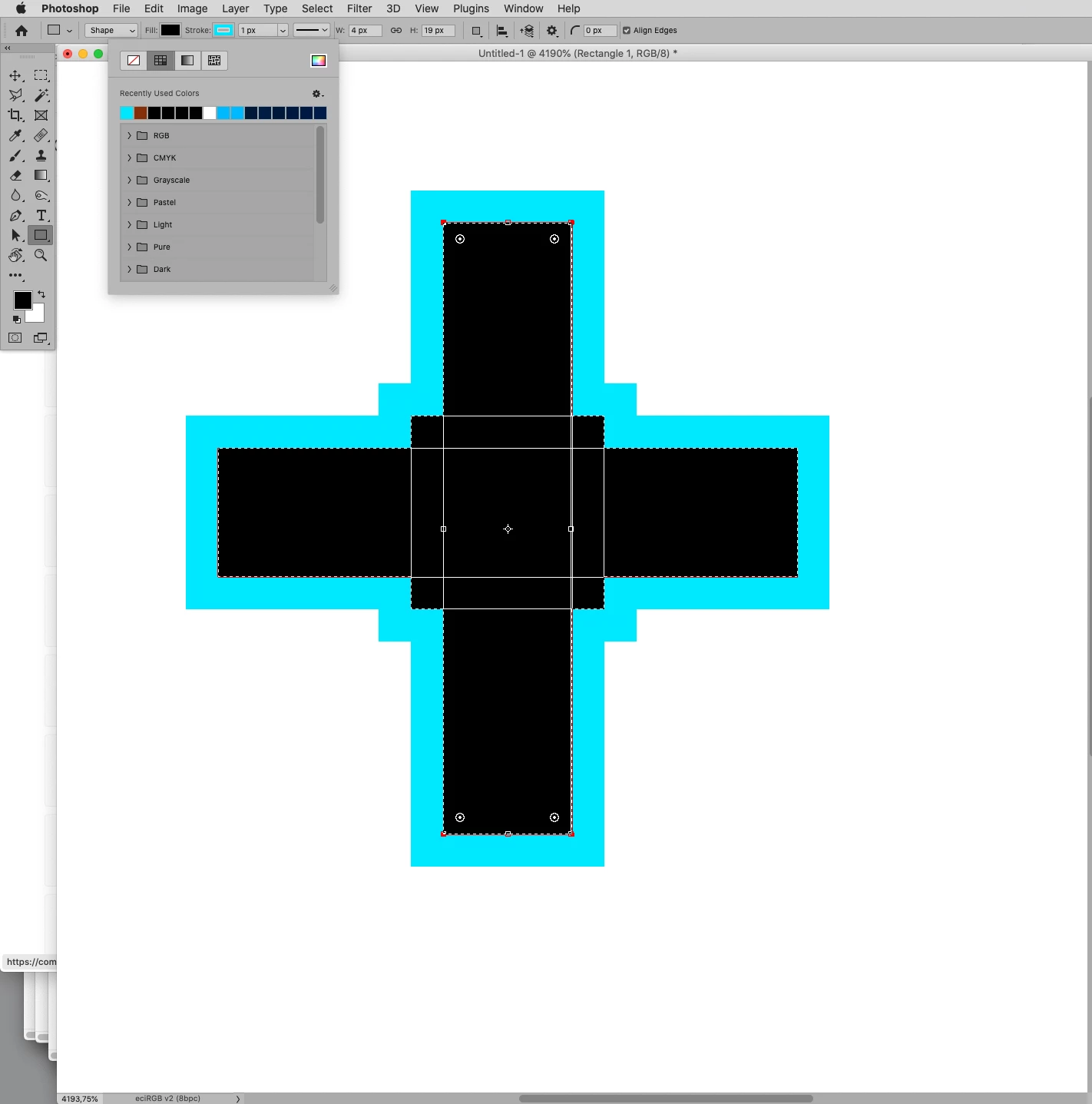

      And in the scenatio your video shows I wonder why you even use a Layer Style and not a Shape Layer Stroke.
