Question

Color Space boxes to check in the Export window

  • December 7, 2023
  • 2 replies
  • 759 views

I make collages and composites in Photoshop.  When I create a new document in Photoshop I always choose the sRGB IEC61966-2.1 Color Profile.  I bring any number of images into my Photoshop document and don't pay attention to their color profiles.   I always assumed that Photoshop would show these images on my screen in sRGB.



When it's time to export the image, I want the exported image to be in sRGB.  Is it necessary to check the Convert to sRGB box in the Export window, or is that redundant?  I assume I should be checking the Embed Color Profile box.



Why do I care?  What's my goal?    I don't often print my work, but when I do it goes to a photo finisher who uses sRGB.  I post my work on My Profile, but I understand that the images will look different on every monitor that isn't properly calibrated for the sRGB color space.  But if my monitor and theirs are properly calibrated, I want us to both see the same thing.

    This topic has been closed for replies.

    2 replies

    NB, colourmanagement
    Community Expert
    NB, colourmanagementCommunity Expert
    Community Expert
    December 7, 2023

    @lc55472355 As D.Fosse wrote always embed the profile it tells other systems (and yours) about the intended meaning of colour values.

    I bring any number of images into my Photoshop document and don't pay attention to their color profiles.   I always assumed that Photoshop would show these images on my screen in sRGB.

    Photoshop can convert images with embedded profiles that don't match your selected image colourspace.

    I you select "ask when pasting" in Color Settings you'll get a notice when an incoming file does not match and the opportunity to convert it (in your case, to sRGB).



    I hope this helps
    neil barstow, colourmanagement net - adobe forum volunteer - co-author: 'getting colour right'
    google me "neil barstow colourmanagement" for lots of free articles on colour management

    L
    lc55472355Author
    Inspiring
    December 7, 2023

    @NB, colourmanagement  Thank you for suggesting "ask when pasting" in Color Settings.  I thought it would be in Settings/Preferences but I found it in the Ps main menu under Edit > Color Settings...



    Attached is the Color Settings window with the default settings I was using and the same window with custom settings after I checked Profile Mismatches: Ask When Pasting.



    Should I also check Missing Profiles: Ask When Opening?



    Is there anything else that looks problematic in the Custom Settings window?



    Lastly, with all this color profile matching as I work, it seems like checking the Convert to sRGB box in the Export window would be unnecessary.  Should I ignore that setting and leave it unchecked?



    Thank you and D. Fosse so much!

    D Fosse
    Community Expert
    D FosseCommunity Expert
    Community Expert
    December 8, 2023

    There is no point in having any of the warnings checked. They tell you nothing useful. There's nothing that "needs to match" anyway. These warnings are a relic from a time when color management wasn't widely implemented.



    Just embed the profile, and everything will be correctly handled.

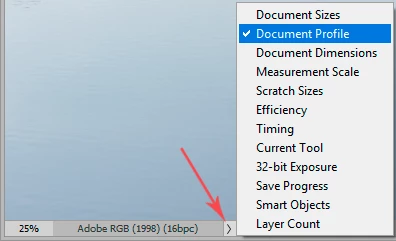

    This is how you keep track of your color spaces. This tells you everything you need to know at a single glance:

    D Fosse
    Community Expert
    D FosseCommunity Expert
    Community Expert
    December 7, 2023

    Yes, always check "embed color profile". No exception.



    The embedded color profile in your master document overrides everything else. When you paste other documents into it, they are automatically converted in the paste operation. Placed Smart Objects retain their original color spaces/profiles internally, but again get automatically converted to the master color space on rasterization/output.



    And yes, to see that correctly, the monitor needs to be properly calibrated and profiled. But note that it's not calibrated "to sRGB" as you say, nor does it need to be. The monitor is just profiled as it is, whatever that may be.



    For this you need to use a calibrator, which does two things. First it roughly adjusts the monitor's response to certain parameters (R=G=B relative to a certain white point). That's calibration. Then it measures the result, and writes a detailed icc profile describing the monitor's behavior in this calibrated state. This monitor profile has a much higher precision level than the calibration.



    This is a standard color management chain, where a source color space (the document) is remapped/converted into a destinaton color space (the monitor). Those converted numbers are sent to screen, thus representing the original data correctly.
