Guides don't adjust when adding a bleed

Forum|Forum|7 years ago
March 6, 2019
3 replies
2164 views

Hi! I've been trying to adjust an image using instructions I've searched and found. All seem fairly simple: snap guides to your document bounds (my document is 5x7 inches) and then resize canvas to bleed size (for me it would be 5.25 x 7.125 inches). They go on to say that the guides will remain and anything outside those guides will be the bleed area and may be cropped off. My issue is that when I resize, my canvas resizes but the guides snap to the new bounds on the left and top margin. Instead of being at .25/.125 respectively, the guide is at 0 for both. Help! Am I missing something? Is there an easier way? I'm using Photoshop CC 20.0.3 I know I can adjust manually but I want to make sure the rest of the image size is correct (and also figure out why this isn't working....).

Thank you.

This topic has been closed for replies.

Correct answer davescm

Hi

Uncheck "lock guides".

I've just tried it here. With lock guides checked they lock in place to the new canvas 0,0 point, although your image is no longer there.

Unlocked, they stay with the image edge i.e. move to the new image position.

Dave

Derek Cross

Community Expert

Create a document or image to the size that includes bleed. Ensure the resolution is between 200 and 300PPI.

O

onebeanshyAuthor

Participant

Thank you — I was going to do that but wanted to ensure that I had the guides at the correct points. That's what I was going to do as my "give-up and do it the manual way" option.

Michael Bullo

Community Expert

The Canvas Size dialog box not only has the ability to resize the canvas but also control where that resizing is centred.

If you want to resize from the centre and have space added evenly all the way around the document it should look like this.

If you want it to resize from the upper left it should look like this.

Clicking on any square within the grid will centre any changes from that point.

O

onebeanshyAuthor

Participant

It's on the center, it was one of the first things I checked.

Derek Cross

Community Expert

Are you using the image in InDesign?

O

onebeanshyAuthor

Participant

No, just Photoshop.

Basically I'm trying to create a 5x7 card/invitation, which I've done before (it will be saved as a png file). But I noticed when I checked the website where I'll upload to create the card to print it says "5x7 Flat Double Sided — Design Details: 5.125" x 7.25", 300ppi, 0.125" bleed on both short sides, 0.25" bleed on both long sides" — which I understand, but getting Photoshop to add the bleed space seems to be an issue for me.

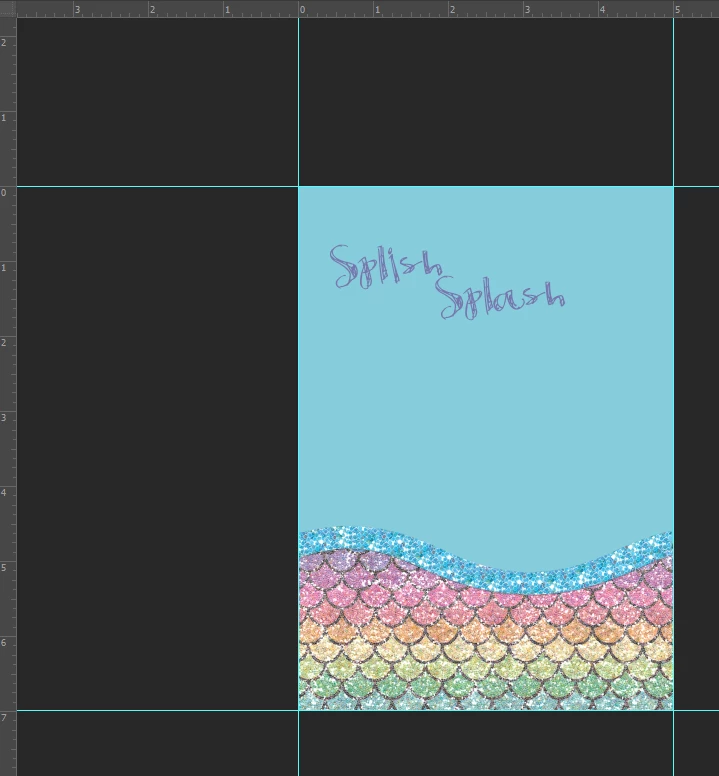

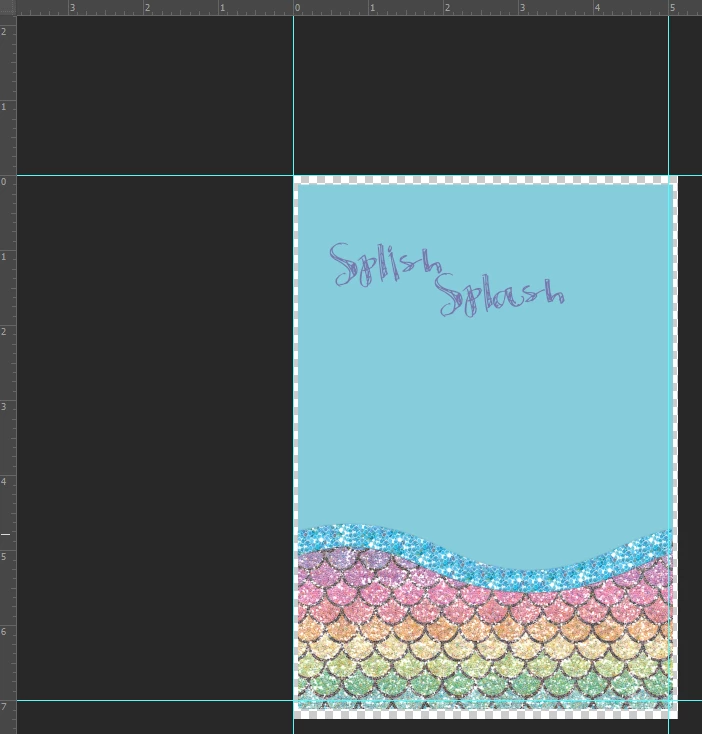

When I take my 5x7 image with the snapped to document bounds guides (even if I lock them) when I expand the size of the canvas, the top and left margin guide move to 0 while the 5" and 7" guide stay at 5 and 7. I must be missing a step or a setting. Here are two images. One at canvas size of 5x7 and one at canvas size of 5.125 x 7.25.

davescm

Correct answer

Community Expert

Hi

Uncheck "lock guides".

I've just tried it here. With lock guides checked they lock in place to the new canvas 0,0 point, although your image is no longer there.

Unlocked, they stay with the image edge i.e. move to the new image position.

Dave
