This topic has been closed for replies.

3 replies

Barb Binder
Community Expert
Community Expert
December 22, 2016

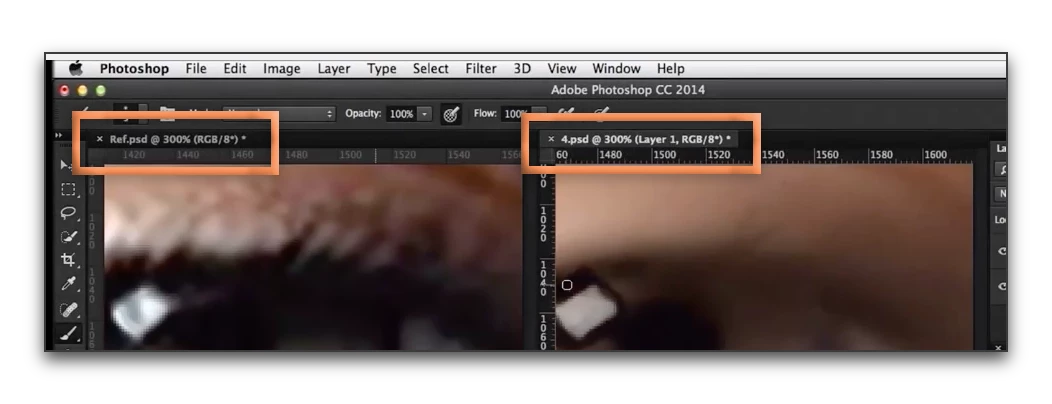

The author of the video does not have one single file visible in both windows. Because it is speeded up, it looks like one image is in both and that changing the view in one changes the other, but watch the tab bar in the second image. That file name keeps changing. The video has been edited to remove the mundane steps of opening and arranging windows, and saving the working file under new names (1.psd, 2.psd, 3.psd, etc.).

~Barb at Rocky Mountain Training
davescm
Community Expert
Community Expert
December 22, 2016

You can have the same document open in two windows.

To do this use Window - Arrange - New Window For xxxx

This will open a new tab which you can drag elsewhere or use for example Window -Arrange - 2 Up Vertical to show both as tabbed views.

I do this to open a second copy on a separate screen and keep an eye on the entire image whilst I work on a part.

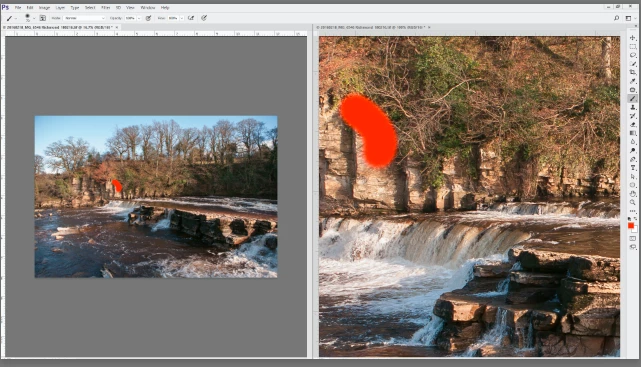

The screenshot below shows what I mean on a single screen. The red splodge is just to show this is a single document

Dave

jane-e
Community Expert
Community Expert
December 22, 2016

Create a new window (or two similar images) and tile all.

Pan one window with the space-bar + drag shortcut PLUS hold down Shift to navigate both windows at once.

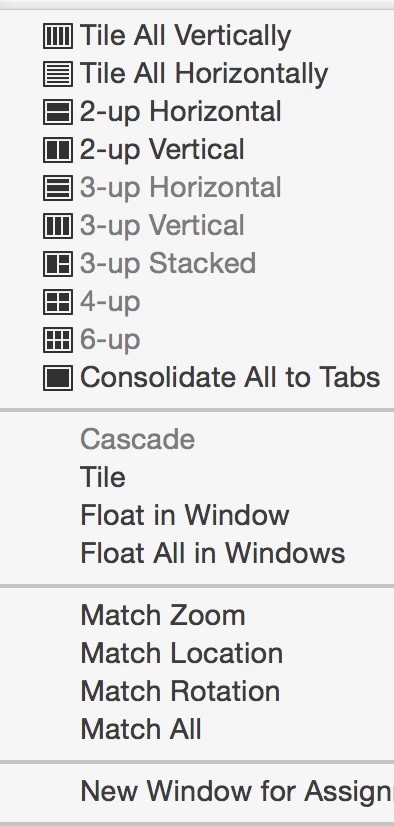

Note the Match commands in the menu. Do those first, then Space + Shift + Drag.

jane-e
Community Expert
Community Expert
December 22, 2016

jane-e wrote:

Create a new window (or two similar images) and tile all.

Pan one window with the space-bar + drag shortcut PLUS hold down Shift to navigate both windows at once.

Note the Match commands in the menu. Do those first, then Space + Shift + Drag.

Barb and Dave,

I think the OP is asking how to navigate between the tabs, which is Spacebar + Shift + Drag (after matching the zoom and location).

davescm
Community Expert
Community Expert
December 22, 2016

Ah ......if that is the case I had missed the point - thanks Jane

Dave

Lilybiri
Legend
December 21, 2016

Open both projects, and find 'Tile all Vertically' (or Horizontally) in the Window menu. Arrange.

Participant
December 22, 2016

Thanks but it didn't work.
